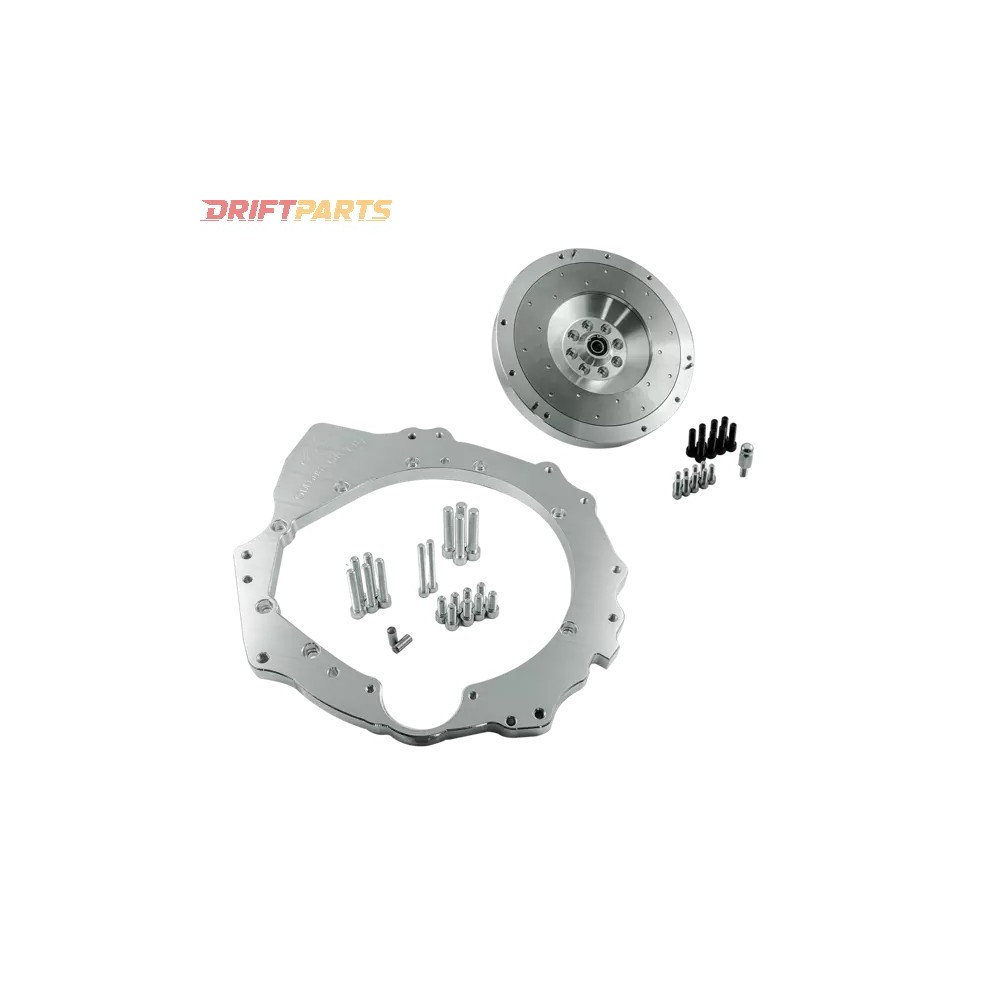

Adapter Kit Mercedes Benz OM605 Nissan Patrol Y61 ZD30 TD42 250mm 9 84

The PMC Motorsport Adapter Kit facilitates the integration of a Mercedes-Benz OM605 engine with a manual transmission from the Nissan Patrol Y61 ZD30 or Y61 TD42, specifically engineered for motorsport use. Professional installation in a fully equipped workshop is recommended.

Technical Specifications:

• Compatible Engines:
  • Mercedes-Benz OM605
  • Mercedes-Benz OM 605.910 ERE C
  • Mercedes-Benz OM 605.911 E
  • Mercedes-Benz OM 605.912 ERE E
  • Mercedes-Benz OM 605.960 ERE Turbodiesel
  • Mercedes-Benz OM 605.962 ERE Turbodiesel
• Compatible Manual Transmissions:
  • Nissan Patrol Y61 ZD30 3.0
  • Nissan Patrol Y61 TD42 4.2
• Flywheel Specifications:
  • Type: Single Disc
  • Diameter of Friction Plate: 250mm / 9.84"
  • Weight: 9.55kg / 21.05lbs
  • Replaceable Friction Surface: Yes
• Recommended Clutch Components:
  • Clutch Pressure Plate: Nissan 350Z 370Z [250mm / 9.84"]
  • Clutch Disc: Nissan Patrol Y61 ZD30 23x25-24N [250mm / 9.84"]
  • Release Bearing: Specific to gearbox
  • Clutch Fork: Specific to gearbox
  • Starter: Mercedes-Benz (OE)
  • Flexplate/Ring Gear/Drive Plate: Mercedes-Benz Automatic OM605 OM606 OEM A6060300112
• Material:
  • Aluminium
  • Cast Iron
• Gearbox Adapter:
  • Thickness: 20mm / 0.78"
  • Includes: Clutch cover - pressure plate bolts kit, Crankshaft bolts kit, Aluminium gearbox adapter, Gearbox adapter bolts
• Certifications:
  • ISO PN-EN ISO 9001:2015

Manufactured with certified materials utilizing modern CNC machinery, this kit undergoes a stringent quality control process, with each component marked with a unique Seriesl number for traceability. The adapters are precision-engineered to ensure perfect alignment between the engine and transmission. All production is conducted within the EU.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse. For further inquiries, please contact info@driftparts.it.
