CNC71 Lock Kit MID-KIT Toyota GT86 / Subaru BRZ

The CNC71 MID-KIT is a complete steering-angle upgrade for the Toyota GT86 and Subaru BRZ. Its adapters bolt directly to the original knuckles without modifying the braking system or vehicle bodywork.

Laser-cut and CNC-bent structural-steel control arms use spherical joints and conical mounting sleeves. Caster adjustment can be performed on the vehicle. Tie-rod relocators improve steering-rod geometry and incorporate externally adjustable steering limiters without affecting toe adjustment.

Depending on the selected settings, the kit widens the front track by 29 to 55 mm per side and provides approximately 57 to 60 degrees of steering angle.

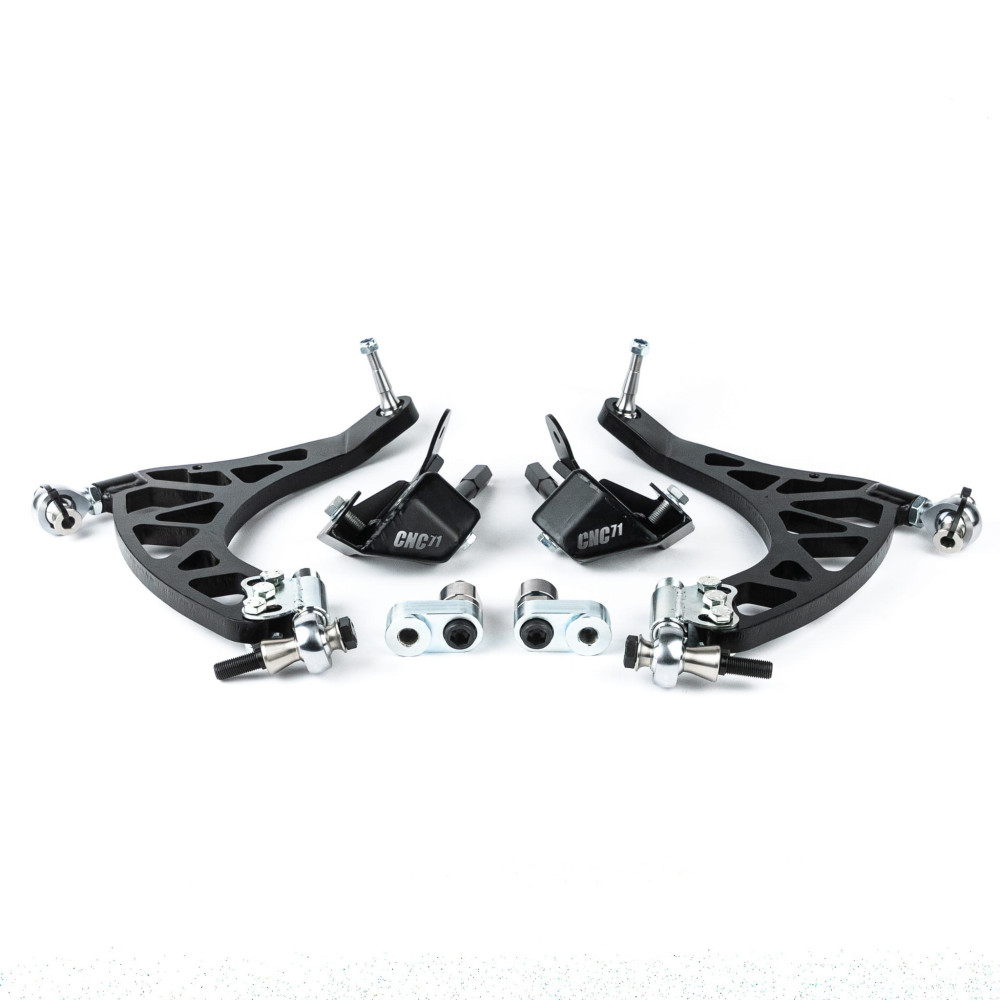

Kit contents

• Front control arms with spherical joints, bushings and ball joints
• Knuckle adapters
• 2 tie-rod ends
• Tie-rod relocators with steering-angle limiters
• Installation manual

Installation requires removal of one bracket from the suspension crossmember to increase steering-rack travel. CNC71 extended-range camber plates are recommended to optimise camber and caster settings.

This product is intended exclusively for motorsport and use on closed circuits. It is not approved for public-road use. Professional installation is required.
