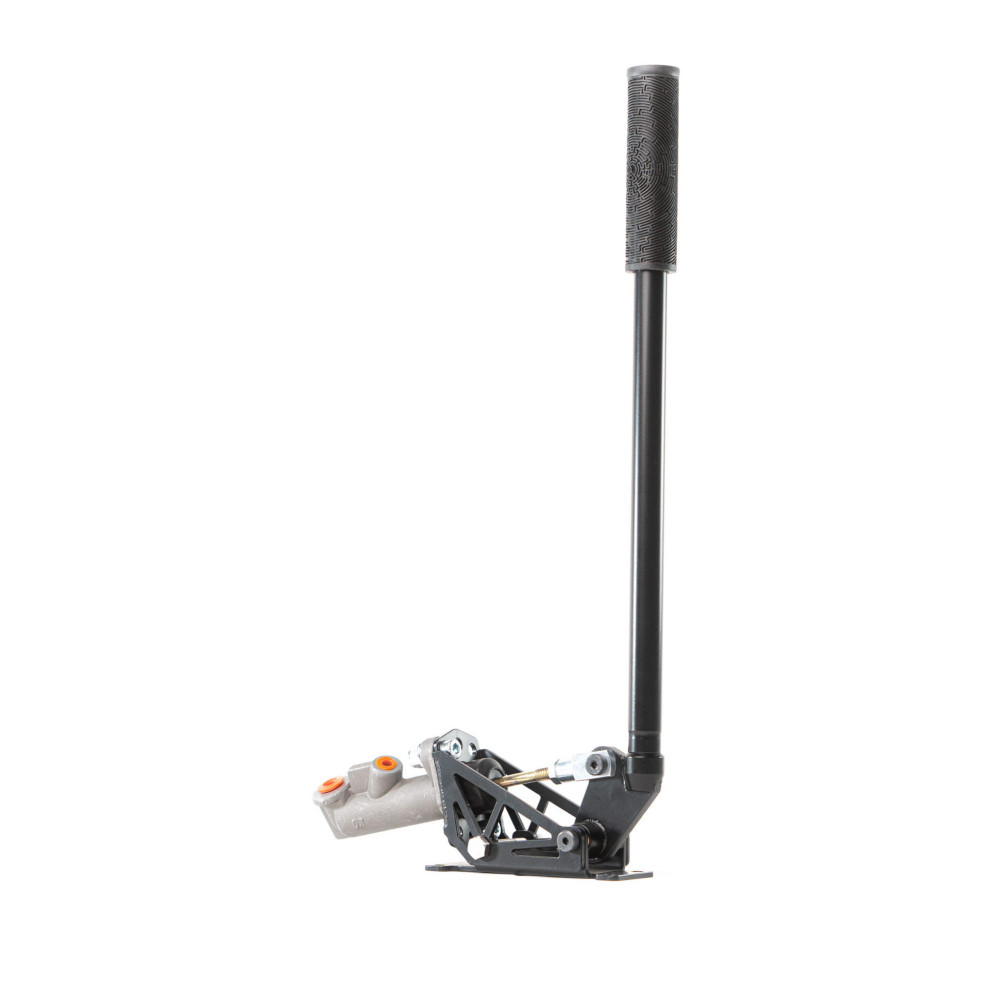

CNC71 Vertical Hydraulic Handbrake

Vertical hydraulic handbrake developed for drift and motorsport applications. The compact steel base is laser-cut and powder-coated, while brass bushings support the lever to reduce play and wear. The removable handle simplifies storage and servicing.

The kit includes the base, lever, selected grip, linkage mechanism, brass bushings, mounting hardware and a 0.7-inch master cylinder. The mounting plate accepts handbrake master cylinders with metric mounting threads. Hydraulic fittings use 7/16-inch inlet and 3/8-inch outlet threads.

Master-cylinder sizing must match the rear brake system. Installation should be carried out by a qualified technician. For motorsport use only.
