Race Stage 3 BMW M50 M52 M54 S50 S52 S54 BMW M57N HGD JGA 184mm 7 25 P

The PMC Motorsport Race Stage 3 Clutch Kit is engineered for integration with BMW engines M50, S50, M52, S52, M54, and S54, facilitating their connection to the ZF Friedrichshafen GS6-53DZ 6-speed manual gearbox. This clutch kit is optimized for motorsport applications, offering exceptional durability with a torque capacity exceeding 1000Nm.

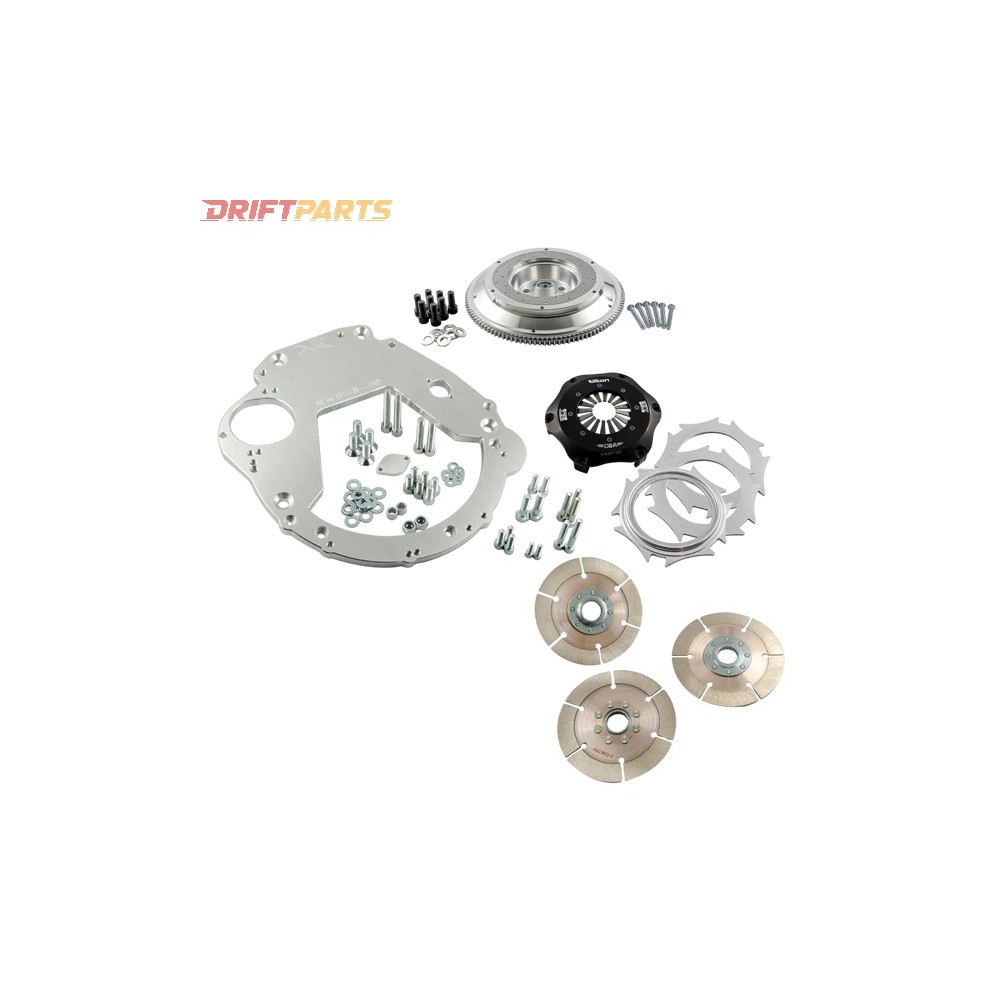

Included in the kit are the following components:

• Aluminum gearbox adapter
• Custom flywheel
• Crankshaft bolts kit
• Clutch cover and pressure plate bolts kit
• Tilton OT-II Cerametallic Pressure Plate 7.25" with a triple disc (POT)
• Three sintered clutch discs (32.5x35-26N, 184mm / 7.25")

The adapter ensures precise alignment between the engine and gearbox, with all components manufactured to high precision using certified materials. Compatibility extends to the following BMW engine models: M50B20, M50TUB20, M50B25, M50TUB25, M52B20, M52B25, M52B28, M52TUB20, M52TUB25, M52TUB28, M54B22, M54B25, M54B30, S50B30, S50B32, S52B32, and S54B32.

Designed specifically for motorsport, the clutch set features an ultralight race flywheel with a replaceable friction surface. The gearbox adapter has a thickness of 15mm (0.59"). Manufactured in the EU, the kit adheres to high-quality standards, compliant with ISO PN-EN ISO 9001:2015.

OEM starter references for compatibility include BMW M50-M54 OE codes:

• 12 41 2 344 247
• 12 41 1 740 378
• 12 41 1 740 375
• 12 41 1 738 602
• 12 41 1 466 102
• 12 41 1 712 937
• 12 41 1 735 524
• 12 41 1 738 604
• 12 41 1 715 238

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse. For further inquiries, contact info@driftparts.it.
