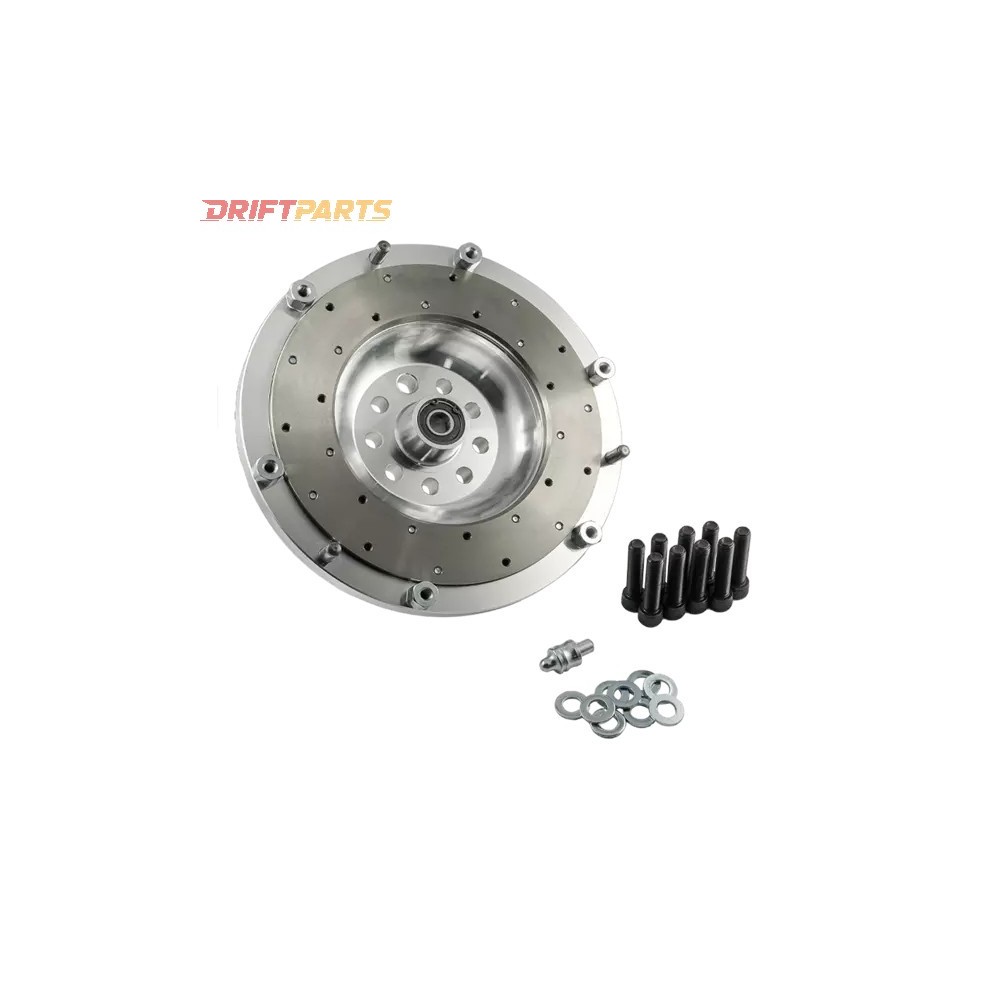

PMC Motorsport Custom Flywheel BMW M60 - BMW M57n ZF GS6-53DZ HGD JGA E60 525D 530D 6-speed Diesel - 240mm / 9.45"

The PMC Motorsport Custom Flywheel is meticulously engineered to facilitate the integration of the BMW M60 engine with a ZF manual transmission (ZF Friedrichshafen) from BMW. Constructed from aluminum and cast iron, the flywheel is fully recyclable and designed to support both high-performance and routine applications.

Compatibility Details:

• Engine Compatibility:
  • BMW V8 M60 LHD
  • BMW V8 M60 M60B30
  • BMW V8 M60 M60B40
• Transmission Compatibility (Diesel):
  • BMW ZF S6-53 GS6-53DZ 6-speed
  • BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ HGD (THGD)
  • BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ JGA (TJGA)
  • BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ HGE (THGE)
  • BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ JGB (TJGB)

Installation Requirements:

• This product is designed exclusively for motorsport applications on race tracks.
• Installation should be performed by qualified personnel equipped with the necessary tools and facilities.

Technical Specifications:

• Flywheel Type: Single Disc
• Friction Plate Diameter: 240mm / 9.45"
• Recommended Clutch Pressure Plate: Sachs XTend 3000 951 952 (M57N M57N2), Sachs Performance 88 308 200 1243 / 883082.001243
• Flywheel Weight: 4.85 kg / 10.69 lbs
• Material: Aluminium
• Replaceable Friction Surface: Yes
• Gearbox Adapter Required: F0M57-M6

OEM References and Required Parts:

• Starter (not included): BMW M60 M62 OE 12 41 1 729 981, BMW M60 M62 OE 12 41 1 736 921
• Flexplate / Ring Gear / Drive Plate: BMW M60 V8 OE 11 22 1 747 843, BMW M60 V8 OE 11 22 1 715 646

Package Contents:

• Custom Clutch Fork Pivot Pin / Ball
• Clutch Cover
• Pressure Plate Bolts Kit
• Crankshaft Bolts Kit

This flywheel exemplifies PMC Motorsport's dedication to precision and quality, with all components subjected to comprehensive measurement and testing. The product is ISO PN-EN ISO 9001:2015 certified and manufactured within the EU.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
