Flywheel GM Chevrolet LS BMW M50 S50 M52 S52 M54 S54 ZF5 Getrag 420G 240mm 9 45

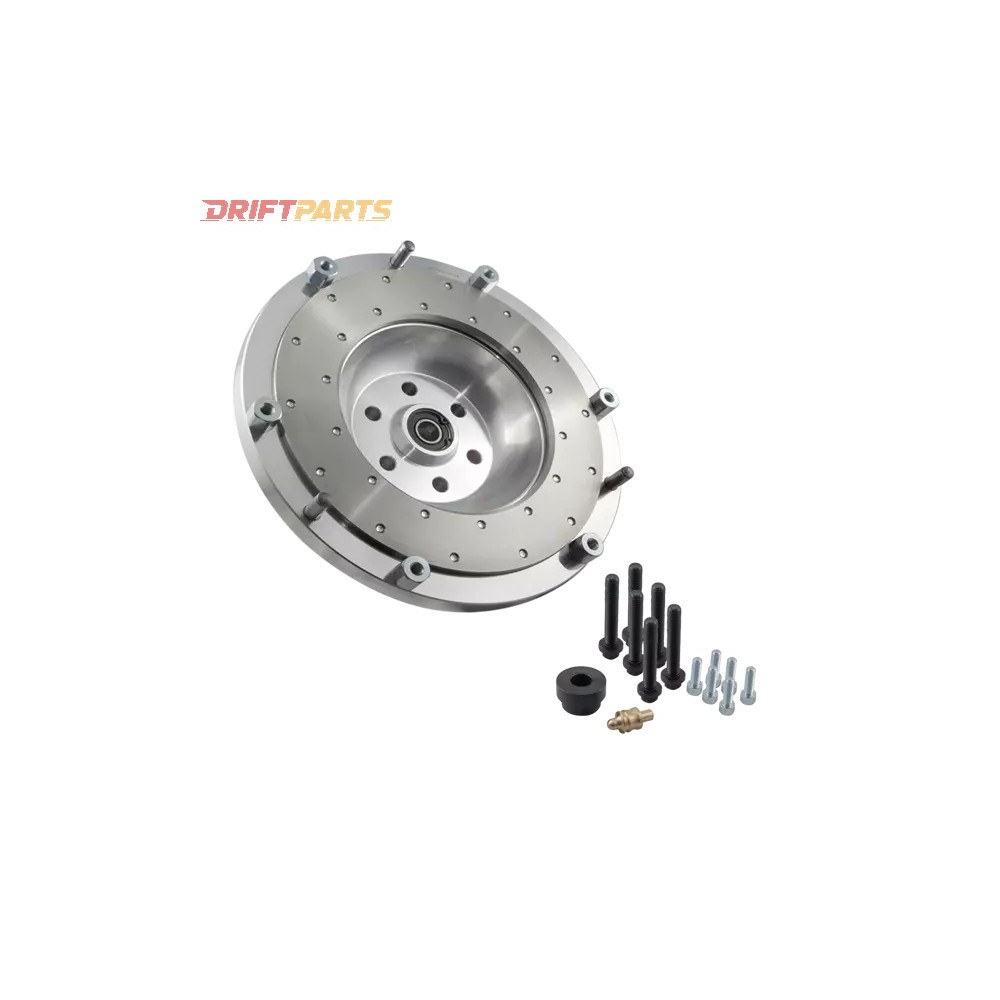

This custom aluminum flywheel from PMC Motorsport is engineered to seamlessly integrate GM Chevrolet V8 engines, including LS series (LS1, LS2, LS3, LS6, LS7) and Vortec engines (4800, 5300, 6000, 6200), with BMW Getrag and ZF manual gearboxes. Each unit undergoes comprehensive inspection and balancing to ensure optimal performance.

The flywheel is equipped with a clutch shaft pilot bearing to stabilize the clutch shaft and reduce vibrations, alongside a replaceable friction surface for straightforward maintenance.

Key Specifications:

• Compatible Engines: GM Small Block Chevrolet LS (LS1, LS2, LS3, LS6, LS7) and Vortec engines (4800, 5300, 6000, 6200).
• Compatible Transmissions: GETRAG S5D-250G, ZF S5D-310, ZF S5D-320, GETRAG 420 / 420G (not compatible with BMW M54 6-speed gearbox).
• Clutch Disc Specification: 240mm / 9.45" diameter; recommended clutch pressure plate: Sachs Performance 88 308 200 1243.
• Flywheel Weight: 6.00 kg / 13.23 lbs.
• Material: Constructed from aluminum with a cast iron replaceable friction surface.
• Installation Components: Includes a clutch cover, pressure plate bolts kit, crankshaft bolts kit, flywheel centering sleeve, and a custom clutch fork pivot pin/ball.
• OEM References: Compatible with Chevrolet LS OE parts 12654640, 12553054, 12563136, 12580709, 12602448, 12606620, 12637677.

This flywheel is designed to withstand both daily driving conditions and rigorous motorsport applications, offering reliable performance for high-power SWAP projects.

For further inquiries, please contact DriftParts at info@driftparts.it.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
