Adapter Kit Toyota JZ Nissan 370Z Z34 250mm 9 84

The PMC Motorsport Adapter Kit facilitates the integration of a Toyota JZ engine series (1JZ, 2JZ) with a manual transmission from a Nissan 370Z. This kit is engineered for both amateur and professional motorsport endeavors, ensuring a seamless conversion between engine and transmission.

Compatible Toyota JZ engines include:

• 1JZ-FSE
• 1JZ-GE
• 1JZ-GTE (non VVT-i and VVT-i models)
• 2JZ-FSE
• 2JZ-GE
• 2JZ-GTE (non VVT-i and VVT-i models)

Supported Nissan manual transmissions include 370Z models:

• 320B0-1EA0A
• 320B0-1EA0B
• Among others specified in the product details

The kit features a custom flywheel with a 250mm (9.84") diameter friction plate optimized for single disc configurations. The flywheel is balanced prior to dispatch and includes a replaceable friction surface. Note that the kit necessitates a ring gear/flywheel from the automatic Toyota JZ, which is not provided.

The adapter ensures precise coaxial alignment between the engine and transmission, with a gearbox adapter thickness of 20mm (0.78"). The flywheel is to be secured with a torque of 72Nm (53.1 ft·lb) using an adhesive.

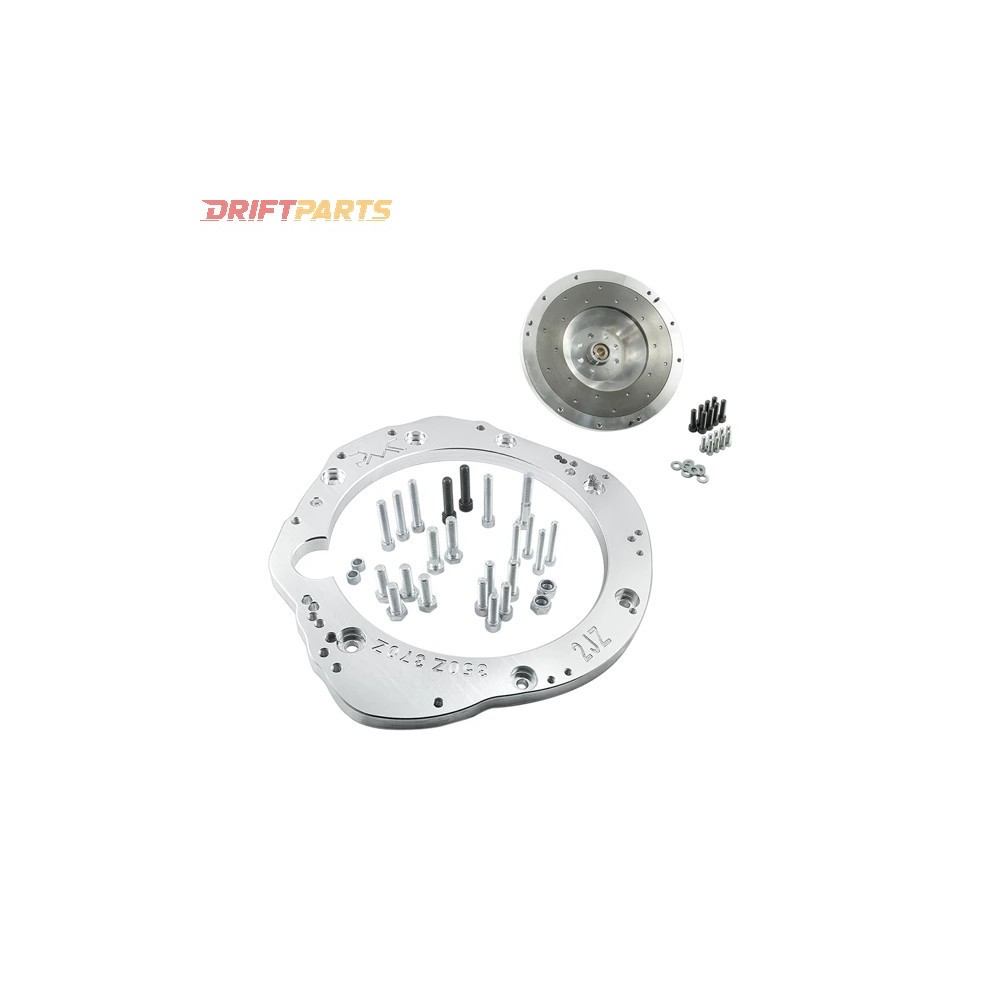

Manufactured in Poland, the kit is constructed from certified materials, with each component subjected to stringent quality control and testing. It is applicable for motorsport, daily use, and drift scenarios. The kit comprises:

• An aluminum gearbox adapter
• Gearbox adapter bolts
• A custom flywheel
• A crankshaft bolts kit
• A clutch cover-pressure plate bolts kit

It holds an ISO PN-EN ISO 9001:2015 certification, affirming adherence to high-quality standards.

OEM part references include:

• Toyota OE 32101-30090
• 32101-22050
• A spacer OE 32116-22020 (4.5mm) to be positioned between the engine block and the flexplate

A Nissan OE clutch slave cylinder and a Toyota JZ starter (OE) without an additional pinion cover are required. The spline specification is 24, with a spline dimension of 23x25-24N.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
