Adapter kit Toyota UZ BMW M50 S50 M52 S52 M54 ZF 5 5 speed 240mm 9 45

The PMC Motorsport Adapter Kit enables the conversion of Toyota Lexus V8 UZ 1UZ and 3UZ engines for use with manual ZF or Getrag gearboxes from BMW. This kit is suitable for integration with ZF 5, Getrag 420G, and Getrag 250G gearboxes. It is engineered for compatibility with BMW models including E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, and E87, as well as other vehicles such as Nissan S13/S14/S15/PS13 and Mazda RX-7/RX-8.

Technical Specifications:

• Maximum Torque Capacity: 800Nm / 589.9 lb⋅ft
• Flywheel Diameter: 240mm / 9.45"
• Engine Compatibility: Toyota/Lexus V8 1UZ 1UZ-FE, 3UZ 3UZ-FE
• Transmission Compatibility: GETRAG S5D-250G, ZF S5D-310, ZF S5D-320, GETRAG 420G
• Flywheel Composition: Aluminum and Cast Iron with a replaceable friction surface
• Flywheel is balanced prior to dispatch
• Clutch Shaft Pilot Bearing is included

Installation Requirements:

• A ring gear/flywheel from the automatic Toyota UZ (not included) is necessary for the custom flywheel.
• Incompatible with the BMW M54 6-speed gearbox.
• Gearbox Adapter Thickness: 20mm / 0.78"
• Flywheel Weight: 4.80 kg / 10.58 lbs
• Flywheel fastening torque: 72Nm / 53.1 ft·lb with adhesive application

Additional Product Details:

• Manufactured in Poland under ISO PN-EN ISO 9001:2015 standards.
• Suitable for both motorsport and daily driving applications.
• Professional installation is advised.
• Each component is marked with a unique Seriesl number for quality assurance.

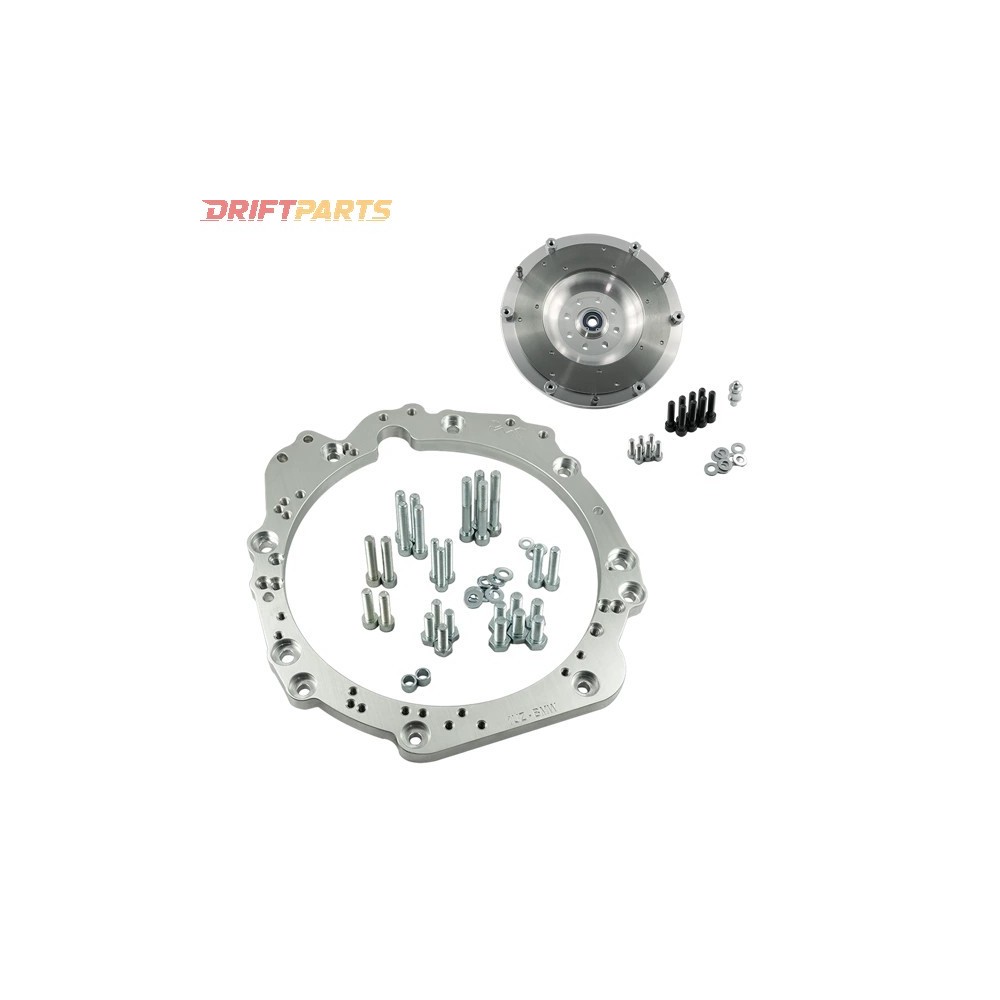

Contents of the Kit:

• Aluminum gearbox adapter
• Gearbox adapter bolts
• Custom flywheel
• Crankshaft bolts kit
• Clutch cover-pressure plate bolts kit
• Custom clutch fork pivot pin/ball

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse. For inquiries, contact info@driftparts.it.
