Hidden Handbrake Ford Mustang S550

ReverseLab vertical hydraulic handbrake with removable lever, designed specifically for the Ford Mustang S550.

The kit is installed using the vehicle’s original body mounting points, without requiring structural modifications or the fabrication of new brackets. The handbrake position is designed to integrate correctly into the cabin and preserve the original appearance of the centre tunnel as much as possible.

The removable lever allows the handle to be quickly detached when the handbrake is not in use. The lever mechanism runs on bearings to reduce play and friction and is finished in semi-gloss black powder coating.

• Designed specifically for the Ford Mustang S550
• Installs on the original body mounting points
• No structural modifications required
• Removable vertical lever
• Lever movement on bearings
• Reduced unwanted play and friction
• Semi-gloss black powder-coated construction
• Wilwood master cylinder included
• Compatible with configurations using the original rear calipers
• Also designed for systems with four-piston Wilwood calipers
• Cutting template included
• Finishing plug included
• Ready-to-install kit

Fitting the product does not require structural modifications to the vehicle. To integrate the lever correctly into the interior trim, it may be necessary to trim a section of the centre tunnel plastic using the template supplied with the kit.

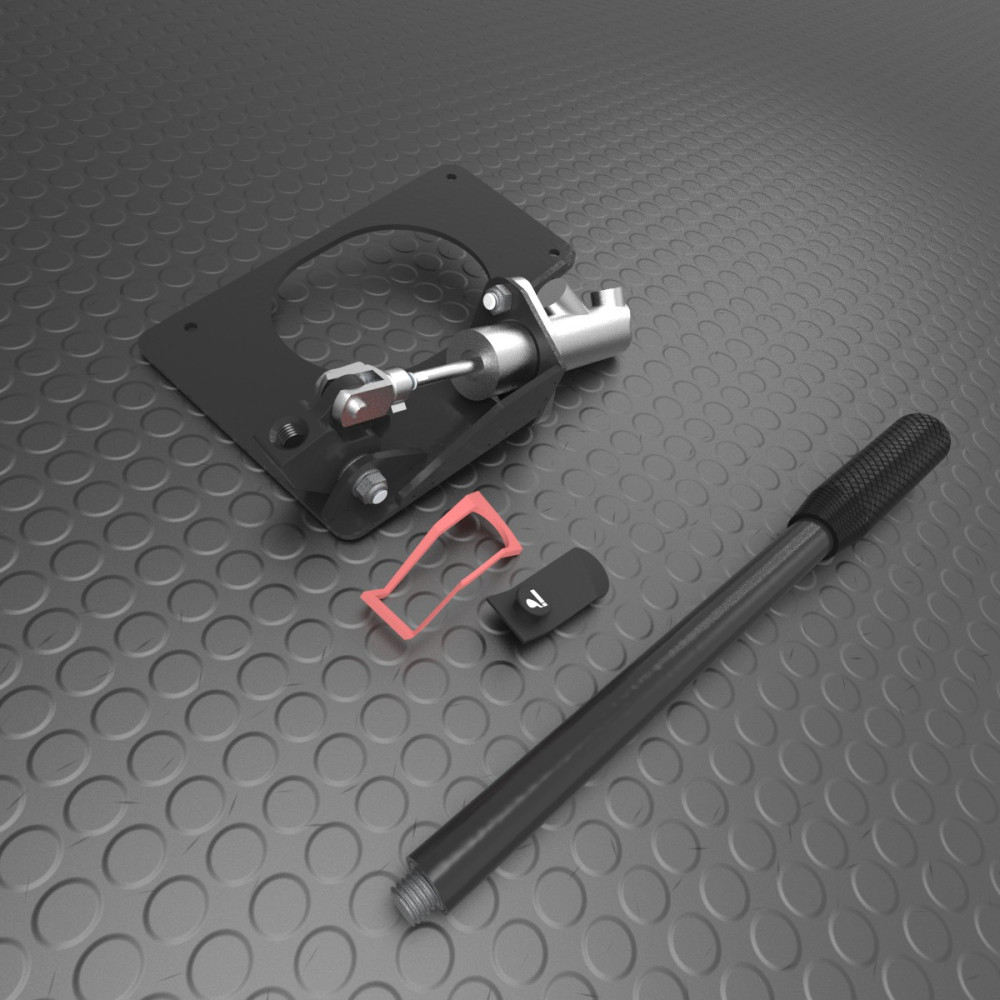

The kit includes:

• Hydraulic handbrake body
• Removable lever
• Wilwood master cylinder
• Mounting base and hardware
• Template for cutting the interior trim
• Plug for closing the opening
• Installation instructions

The kit was developed to work with four-piston Wilwood calipers, but it can also be used with the original rear caliper. The hydraulic system configuration and compatibility with the components installed on the vehicle must be checked before installation.

The Wilwood master cylinder is already included with the product. Do not create variants based on the master-cylinder manufacturer or bore.

This product is intended primarily for sport and motorsport use. Check compliance with the applicable regulations before using it on public roads.
