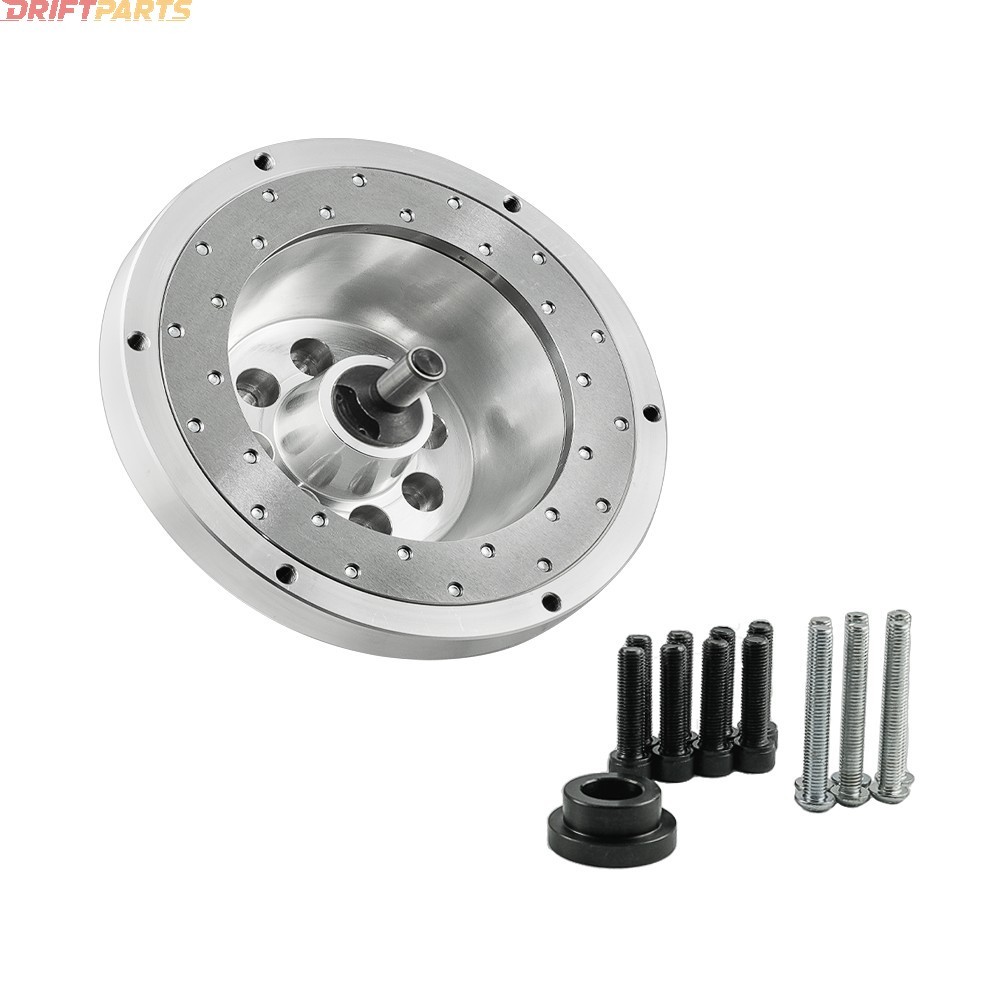

PMC Motorsport Lightweight Custom Aluminum Flywheel for Toyota JZ 1JZ 2JZ - BMW N54 ZF GS6-53BZ

This precision-engineered aluminum flywheel is specifically designed to facilitate the integration of Toyota JZ 1JZ 2JZ engines with BMW ZF manual gearboxes.

Engine Compatibility:

• Toyota JZ (non VVT-i / VVT-i versions)
• Toyota 1JZ (non VVT-i / VVT-i versions)
• Toyota 2JZ (non VVT-i / VVT-i versions)

Gearbox Compatibility:

• BMW ZF (ZF Friedrichshafen) S6-53 GS6-53BZ 6-speed
• BMW N54 E60 535i E9x 335i ZF S6-53 GS6-53BZ HGX (THGX)
• BMW N54 E60 535i E9x 335i ZF S6-53 GS6-53BZ JGD (TJGD)
• BMW N54 E8x 135i Z4 35i ZF S6-53 GS6-53BZ JGK (TJGK)

Technical Specifications:

• Flywheel Type: Ultralight Race 184mm / 7.25" STEP TYPE
• Diameter of Friction Plate: 184mm / 7.25"
• Flywheel Weight: 3.1 kg / 6.83 lbs
• Material: Aluminum
• Replaceable Friction Surface: Yes
• Tightening Torque for Flywheel Bolts: 72Nm + adhesive

Installation Details:

• Utilize the flywheel/ring gear from the automatic version of the Toyota 1JZ 2JZ, incorporating one spacer (OE 32116-22020 4.5mm) between the engine block and the ring gear (not included in the kit).
• Retain the original Toyota 1JZ 2JZ starter.
• Remove the bearing from the crankshaft hub (automatic version JZ) and substitute it with a provided centering sleeve.
• Retain the bearing and clutch release fork from the existing gearbox. For bearings with dual height positions, utilize the 28.5mm setting.

Recommended Components:

• Clutch Pressure Plate: Tilton OT-II Cerametallic Pressure Plate 7.25" 66-003 xxx Triple disc STEP or 66-302 xxx Twin disc STEP
• Clutch Disc: 184mm 7.25" type, specific to your gearbox
• Release Bearing: Specific to your gearbox
• Clutch Fork: Specific to your gearbox
• Clutch Slave Cylinder: Specific to your gearbox
• Starter: Toyota JZ (OE) without additional pinion cover
• Flexplate/Ring Gear/Drive Plate: Toyota OE 32101-30090 | 32101-22050 with one spacer OE 32116-22020 4.5mm between the engine block and the flexplate

Set Includes:

• Clutch cover
• Pressure plate bolts kit
• Crankshaft bolts kit

Additional Information:

• Gearbox Adapter Required: F0BMW-JZ
• Product Sales Codes Included: K0N54-TS-JZ

This flywheel is optimal for high-performance projects and engine swaps, ensuring durability and reliability for both routine and motorsport applications.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
