Adapter kit BMW V8 M60 BMW M50 S50 M52 S52 M54 ZF 5 5 speed 240mm 9 45

The PMC Motorsport Adapter/Conversion Kit/Clutch Kit is engineered to facilitate the integration of a BMW M60 engine with a manual ZF or GETRAG gearbox from BMW. This adapter supports manual gearboxes including the ZF 5, GETRAG 420 G, and GETRAG 250 G.

It is specifically designed for BMW M60 engine swaps in BMW models such as:

• E30
• E36
• E46
• E34
• E39
• E90
• E91
• E92
• E60
• E61
• E81
• E82
• E87

It extends compatibility to other vehicles like Nissan models S13, S14, S15, PS13, and Mazda RX-7/RX-8. This kit is suitable for motorsport and track applications and demands professional installation.

The flywheel, crafted from aluminum and cast iron, features a replaceable friction surface and necessitates a ring gear/flywheel from a BMW V8 M60 automatic transmission, which is not included. The flywheel is pre-balanced prior to dispatch.

Compatible Engines:

• BMW M60 V8
• BMW M60B30
• BMW M60B40

Compatible Gearboxes:

• GETRAG S5D-250G S5D250 5-speed
• ZF S5D-310 ZF 310 / ZF310 S5-31 5-speed
• ZF S5D-320 ZF 320 / ZF320 S5-32 5-speed
• GETRAG 420 / 420G 6-speed

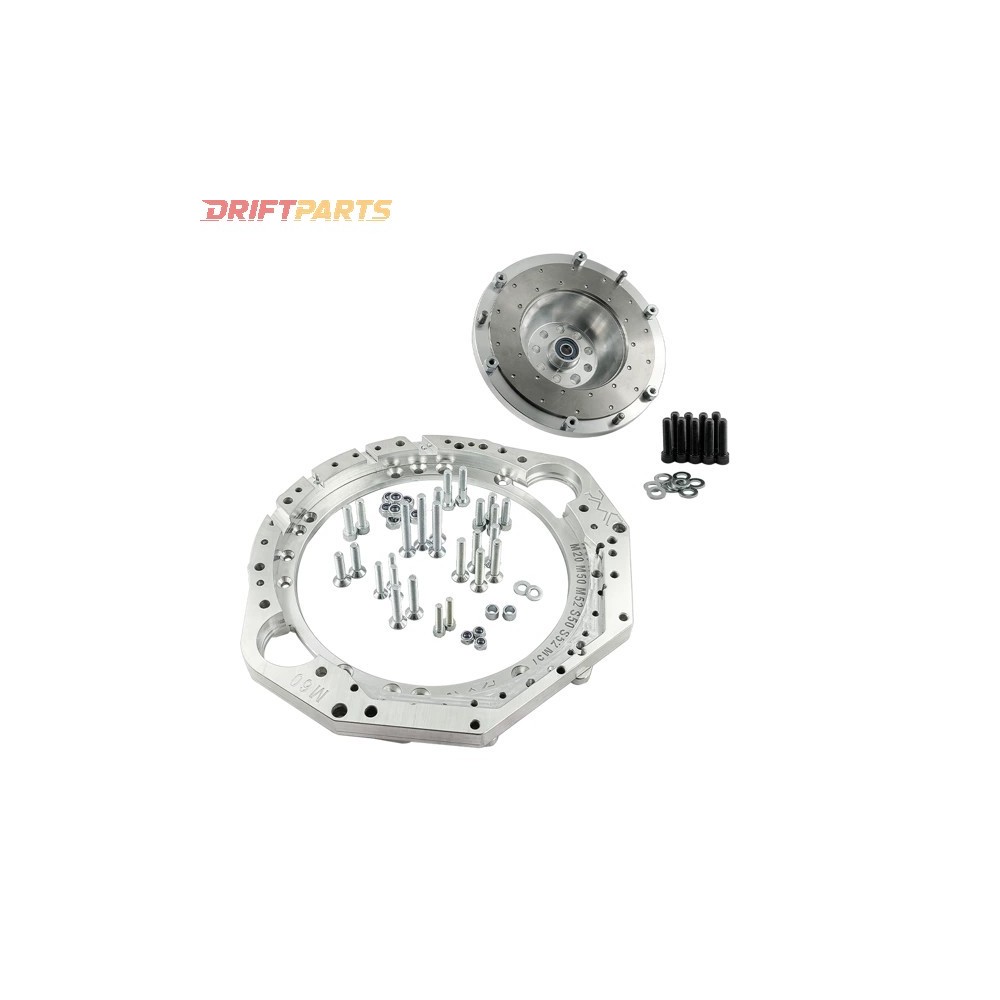

The kit encompasses:

• An aluminum gearbox adapter
• Gearbox adapter bolts
• A custom flywheel
• A crankshaft bolts kit
• A clutch cover - pressure plate bolts kit

The flywheel weighs approximately 4.90 kg (10.80 lbs), and the gearbox adapter has a thickness of 35mm (1.37"). This kit is designed for motorsport, daily, and drift applications.

Technical Specifications:

• Maximum Torque: 800Nm / 589.9 lb⋅ft
• Friction Plate Diameter: 240mm / 9.45"
• Spline: 23x29-10N
• Spline Count: 10

Recommended clutch pressure plates include:

• Sachs XTend 3000 951 877 (BMW M57)
• Sachs Performance 88 308 200 1243 / 883082.001243

Installation requires a dedicated release bearing and clutch slave cylinder. The appropriate starter is BMW M60 M62 OE 12 41 1 729 981 or BMW M60 M62 OE 12 41 1 736 921. The required flexplate/ring gear is BMW M60 V8 OE 11 22 1 747 843 or BMW M60 V8 OE 11 22 1 715 646.

Manufactured in Poland, the product quality is assured by an ISO PN-EN ISO 9001:2015 certification. For further inquiries, please contact DriftParts at info@driftparts.it.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
