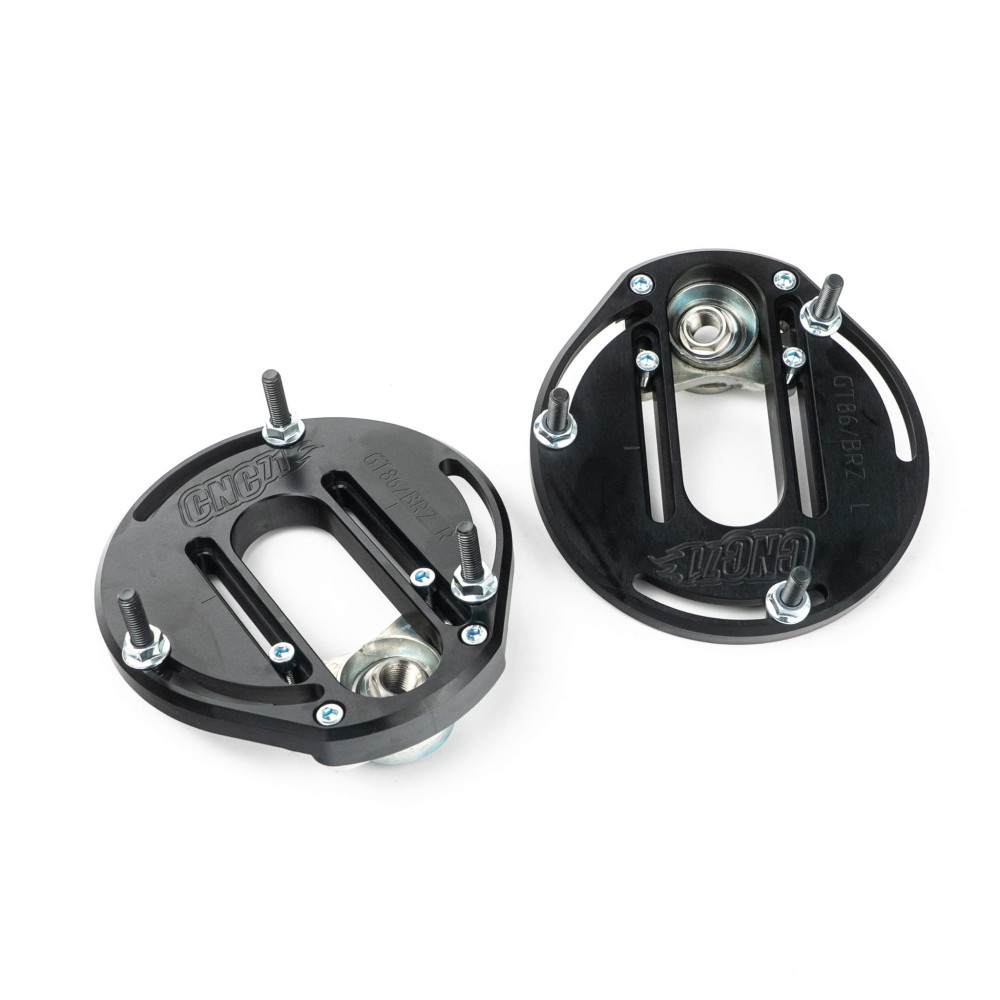

CNC71 Camber Plates Toyota GT86 / Subaru BRZ

CNC71 extended-range adjustable camber plates allow precise positioning of the upper strut mount on Toyota GT86 and Subaru BRZ models without modifying the strut towers.

Adjustment range

• Strut-position offset from +63 mm to -15 mm
• Rotational adjustment up to 58 degrees
• Camber adjustment from approximately -2.1 to +5 degrees
• Caster adjustment from approximately -3 to +2 degrees

Features

• 17 mm thick 7075 aircraft-grade aluminium construction
• Maintenance-free GE20UK spherical bearings
• Serrated locking nuts
• Smooth adjustment without vehicle modification
• Stainless-steel upper and lower spacers
• Nuts and sleeves for M12x1.25, M12x1.5 and M14x1.5 suspension threads

Professional installation and wheel alignment are required.

This product is intended exclusively for motorsport and use on closed circuits. It is not approved for public-road use.
