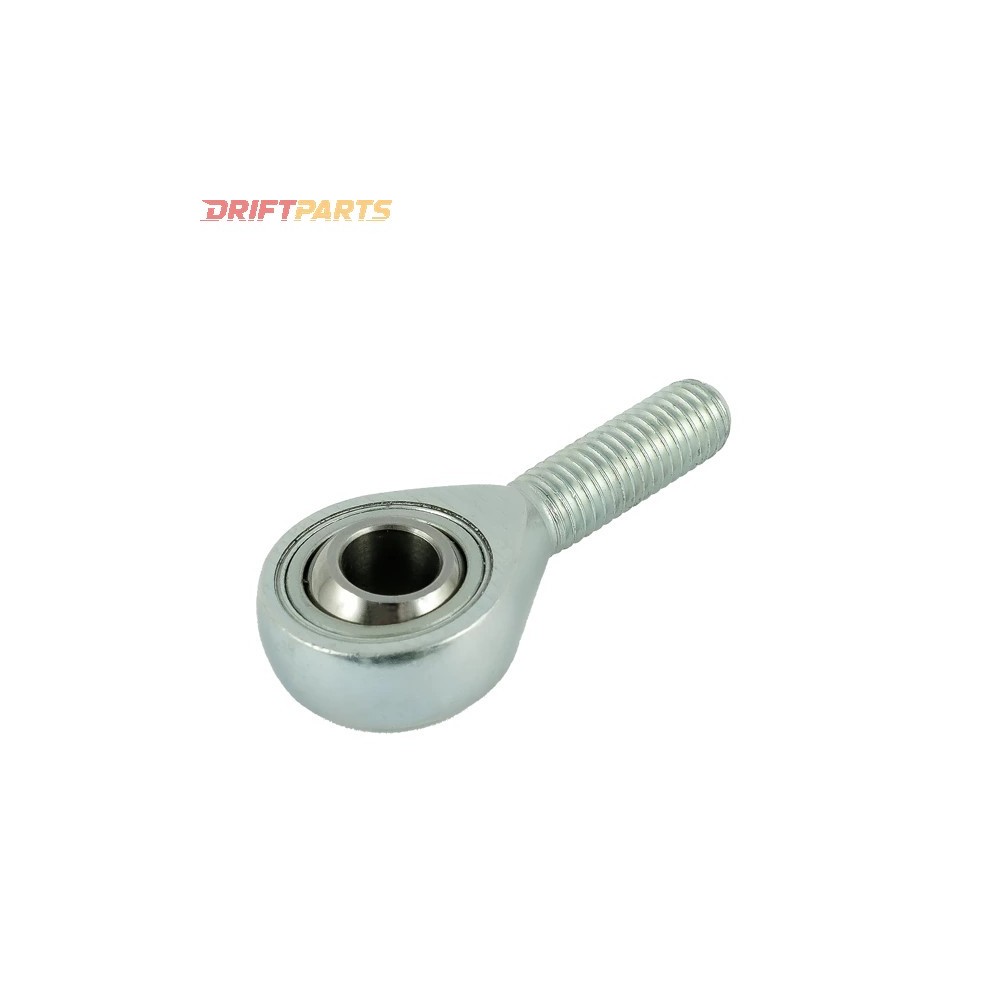

Tie rod end tie rod end uniball GAS 12 SO FLURO M12 right male

The FLURO GAS 12 SO rod end with M12 male right-hand thread is engineered for high-performance applications, offering exceptional durability and precision. The external thread is crafted from either free-cutting steel or heat-treatable steel, featuring zinc plating and lubrication via a concave spherical grease nipple, which enhances suitability for higher rotational speeds. This component is part of the dimensional series K, tailored for demanding operational environments.

The construction materials vary by size:

• Sizes up to 12 are made from free-cutting steel (DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L13) and are turned.
• Sizes from 14 are forged from heat-treatable steel (DE C22, FR XC25, IT C21, SE 1450, GB 070M20, US M1023).
• Size 50 utilizes heat-treatable steel (DE C45, FR 1C45, IT C45, SE 1650, GB 080M46, US Aisi 1045), also forged.

The bearing bush is composed of special bronze CuSn8, and the inner ring is made from hardened, ground, and polished bearing steel (DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100), designed to operate without additional lubrication.

Technical Specifications:

• Brand: FLURO
• Model: GAS 12 SO
• Thread: M12, Male Right
• External Diameter of Rod Head: 32 mm (1.26")
• Width of Inner Ring: 16 mm (0.63")
• Width of Outer Ring: 12 mm (0.47")
• Length: 54 mm (2.13")
• Thread Length: 32 mm (1.26")
• Angle of Deflection: 26°
• Maximum Static Load: 23.5 kN (5283.01 lbs)
• Maximum Dynamic Load: 13.5 kN (3034.92 lbs)
• Bore Diameter: 12.7 mm (0.5")
• Weight: 87 g (0.19180 lbs)

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
