Rod End Uniball M16x2 0 right male

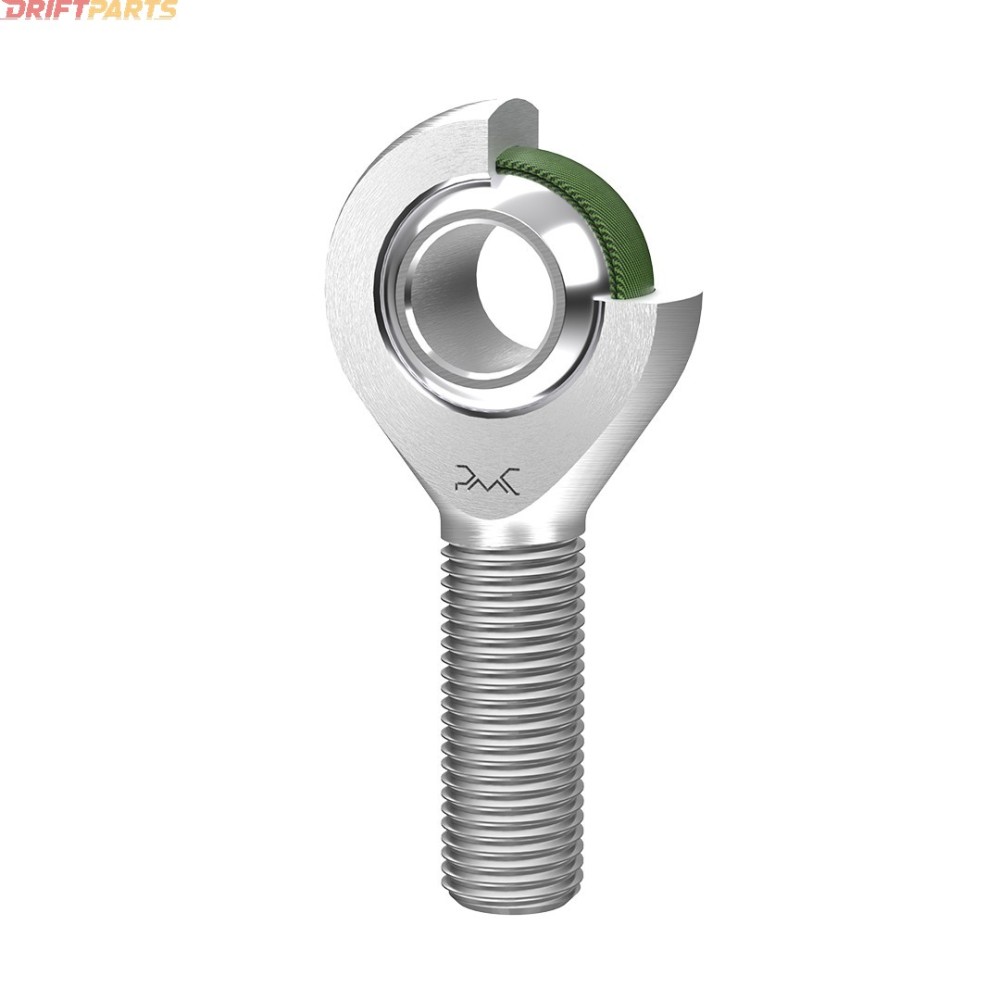

PMC Motorsport RS-Series Rod End / Uniball End - Right External Thread (Male) - M16x2.0

This rod end is engineered for precise load transfer in systems such as steering, suspension, and joint mechanisms. Featuring a male right external thread with dimensions M16x2.0, it facilitates force transmission in multiple directions while allowing rotational and angular movement.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots, decreasing maintenance requirements and costs.
• High Load Capacity: Capable of handling substantial directional loads.
• Corrosion Resistance: Suitable for operation in harsh weather conditions, ensuring durability and longevity.
• PTFE Lining: Provides low friction, resistance to high temperatures (-50°C to +150°C), chemical resilience, and excellent electrical insulation.

Applications:

• Hydraulics and Pneumatics: Integrations with hydraulic and pneumatic cylinders.
• Automotive Industry: Integral to suspension and steering systems.
• Agricultural Machinery: Suitable for joints in agricultural equipment.
• Construction Machinery: Applicable for construction machine joints.

Materials:

• Housing: Constructed from steel (25CrMo4 - 4130 - 1.7218), forged and coated with galvanized (hard chrome) finish.
• Bearing Bushing: Manufactured using injection-molded Nylon with PTFE.
• Ball: Made from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened and with a galvanized (hard chrome) coating.

Specifications:

• External Diameter of Rod Head: 42 mm / 1.65"
• Width of Inner Ring: 21 mm / 0.83"
• Width of Outer Ring: 15 mm / 0.59"
• Length: 66 mm / 2.60"
• Thread Length: 37 mm / 1.46"
• Angular Displacement: 28°
• Maximum Static Load: 73.7 kN / 16568.42 lbs
• Maximum Dynamic Load: 69.3 kN / 15579.26 lbs
• Weight: 198g / 0.44 lbs

Brand: PMC Bearings

Producer Code: 5903707415786

Type: PMC Bearing RS Performance - Series

Thread: M16x2.0, Male Right

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
