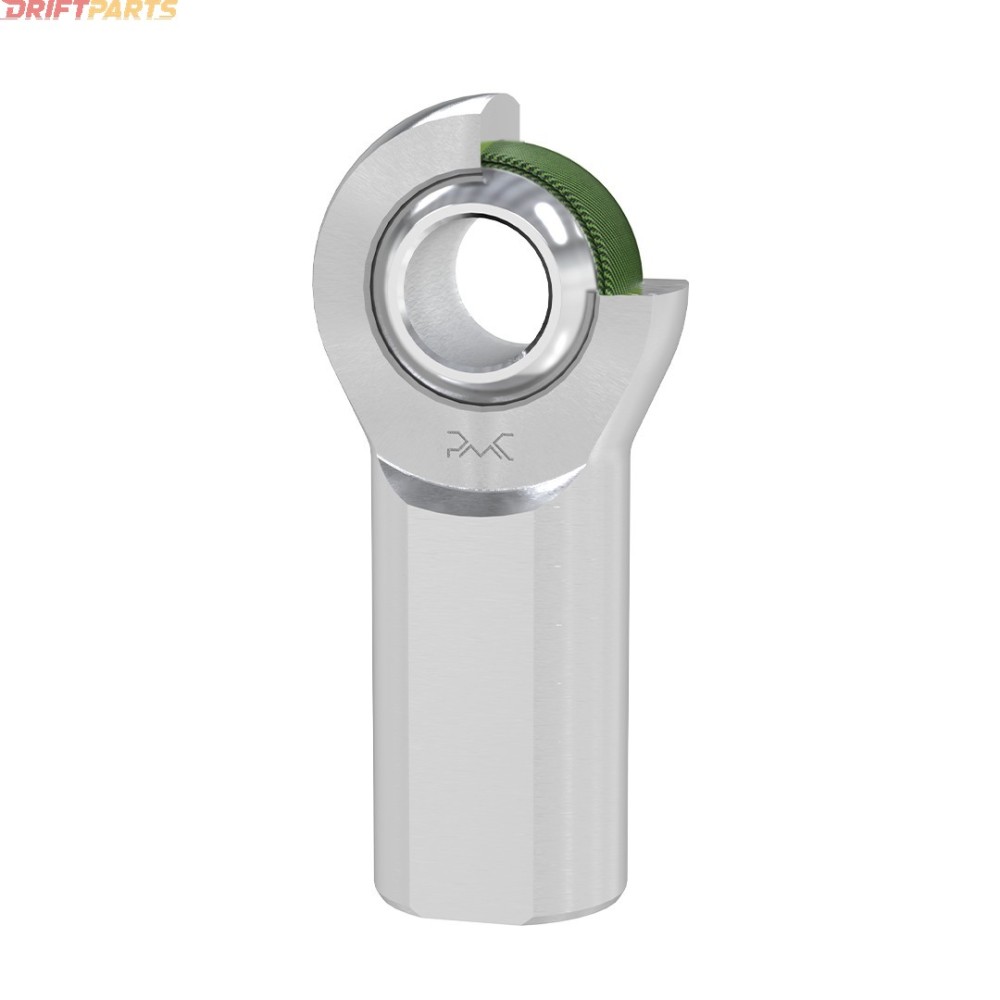

PMC Motorsport RS-Series Rod End / Uniball End - Left External Thread (Female) - M10x1.5

The PMC Motorsport RS-Series Rod End is engineered for applications demanding precise and smooth load transfer, including steering, suspension, and joint systems. This component features a left internal thread with dimensions of M10x1.5. It is maintenance-free, incorporating corrosion protection and eliminating the need for rubber boots, thereby facilitating lubricant-free operation and minimizing maintenance requirements.

Designed to handle significant directional loads, this rod end is optimized for operation in harsh environmental conditions, ensuring durability and extended service life. It integrates a PTFE (Polytetrafluoroethylene) bearing, renowned for its low friction coefficient, high-temperature tolerance (-50°C to +150°C), chemical resistance, and superior electrical insulation, making it ideal for challenging environments.

Applications include:

• Hydraulics and Pneumatics: Suitable for hydraulic and pneumatic cylinder connections.
• Automotive Industry: Applicable in suspension and steering systems.
• Agricultural Machinery: Utilized in agricultural machine joints.
• Construction Machinery: Employed in construction equipment joints.

Technical specifications:

• Housing: Constructed from heat-treated steel (25CrMo4 - 4130 - 1.7218) with a galvanized coating (hard chrome).
• Bearing Bushing: Composed of injection-molded Nylon with PTFE.
• Ball: Fabricated from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened and galvanized (hard chrome).
• External diameter of the rod head: 28mm / 1.10"
• Width of the inner ring: 14mm / 0.55"
• Width of the outer ring: 10.5mm / 0.41"
• Length: 43mm / 1.69"
• Thread length: 15mm / 0.59"
• Maximum static load: 38.3 kN / 8609.91 lbs
• Maximum dynamic load: 30.9 kN / 6954.53 lbs
• Weight: 91g / 0.201 lbs

Brand: PMC Bearings

Symbol: PMC-M10x1.5L (F)

Producer code: 5903707415854

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
