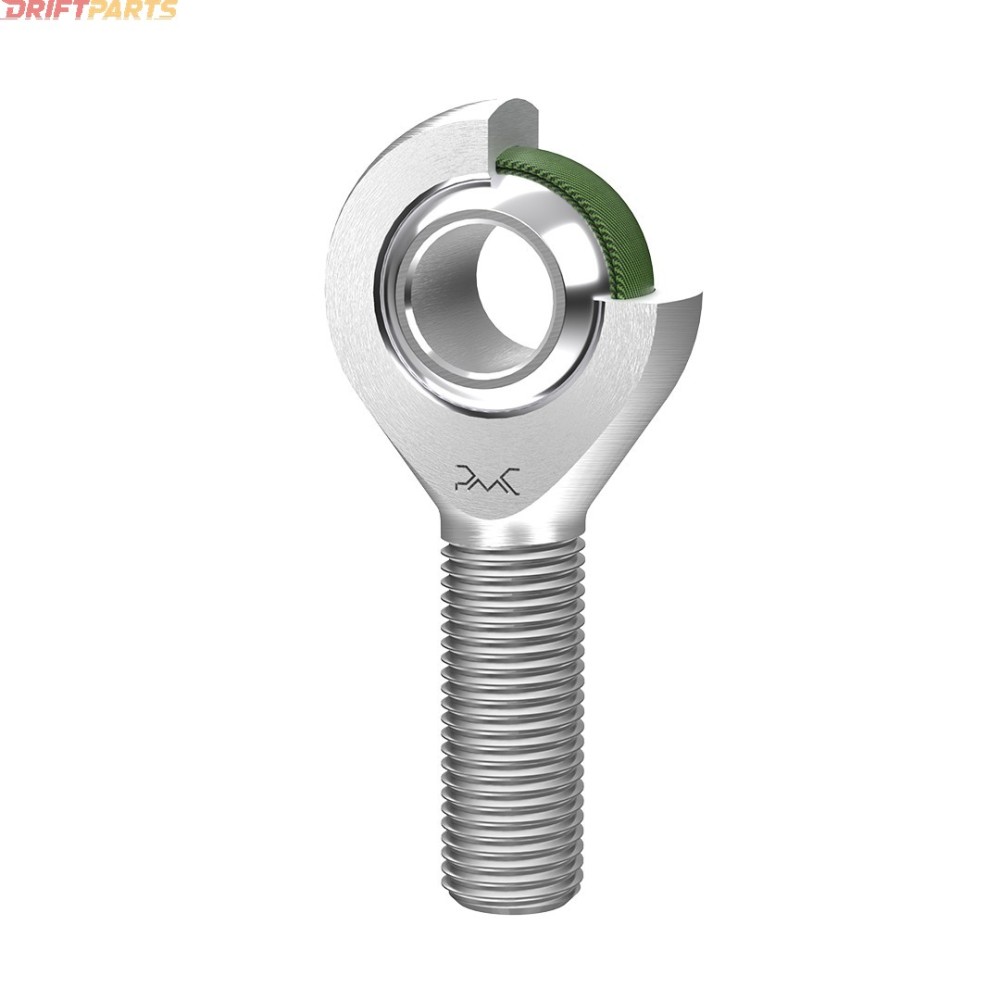

Rod End Uniball M24x2 0 left male

The PMC Motorsport RS-Series Rod End / Uniball End with a left-hand external male thread size M24x2.0 is engineered for high-performance applications where precise and smooth load transfer is essential. This component is ideally suited for use in steering, suspension, and joint systems, facilitating multi-directional force transmission and rotational movement through its spherical joint housed within a robust casing.

Key Features:

• Maintenance-Free Uniball: Engineered with corrosion protection, eliminating the need for rubber boots and reducing maintenance requirements.
• High Load Capacity: Designed to handle substantial directional loads effectively.
• Corrosion Resistance: Constructed to withstand harsh weather conditions.
• Long Lifespan: Provides durability in demanding operational environments.

Material Specifications:

• PTFE: Offers low friction, resistance to high temperatures (-50°C to +150°C), chemical resistance, and excellent electrical insulation properties.
• Housing: Constructed from heat-treated 25CrMo4 (4130, 1.7218) steel, featuring a galvanized hard chrome coating for enhanced durability.
• Bearing Bushing: Manufactured via injection molding using Nylon and PTFE.
• Ball: Made from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened and coated with galvanized hard chrome.

Applications:

• Hydraulics and Pneumatics: Suitable for connections in hydraulic and pneumatic cylinders.
• Automotive Industry: Ideal for use in suspension and steering systems.
• Agricultural Machinery: Applicable in joints of agricultural machines.
• Construction Machinery: Used in joint systems of construction machinery.

Specifications:

• External Diameter of the Rod Head: 60 mm / 2.36"
• Width of the Inner Ring: 31 mm / 1.22"
• Width of the Outer Ring: 22 mm / 0.87"
• Length: 94 mm / 3.70"
• Thread Length: 55 mm / 2.17"
• Angular Displacement: 28°
• Maximum Static Load: 148.5 kN / 33384.12 lbs
• Maximum Dynamic Load: 148.5 kN / 33384.12 lbs
• Weight: 625g / 138 lbs

Brand: PMC Bearings

Type: PMC Bearing RS Performance - Series

Thread: M24x2.0, Male left

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
