Rod End Uniball M18x1 5 right female

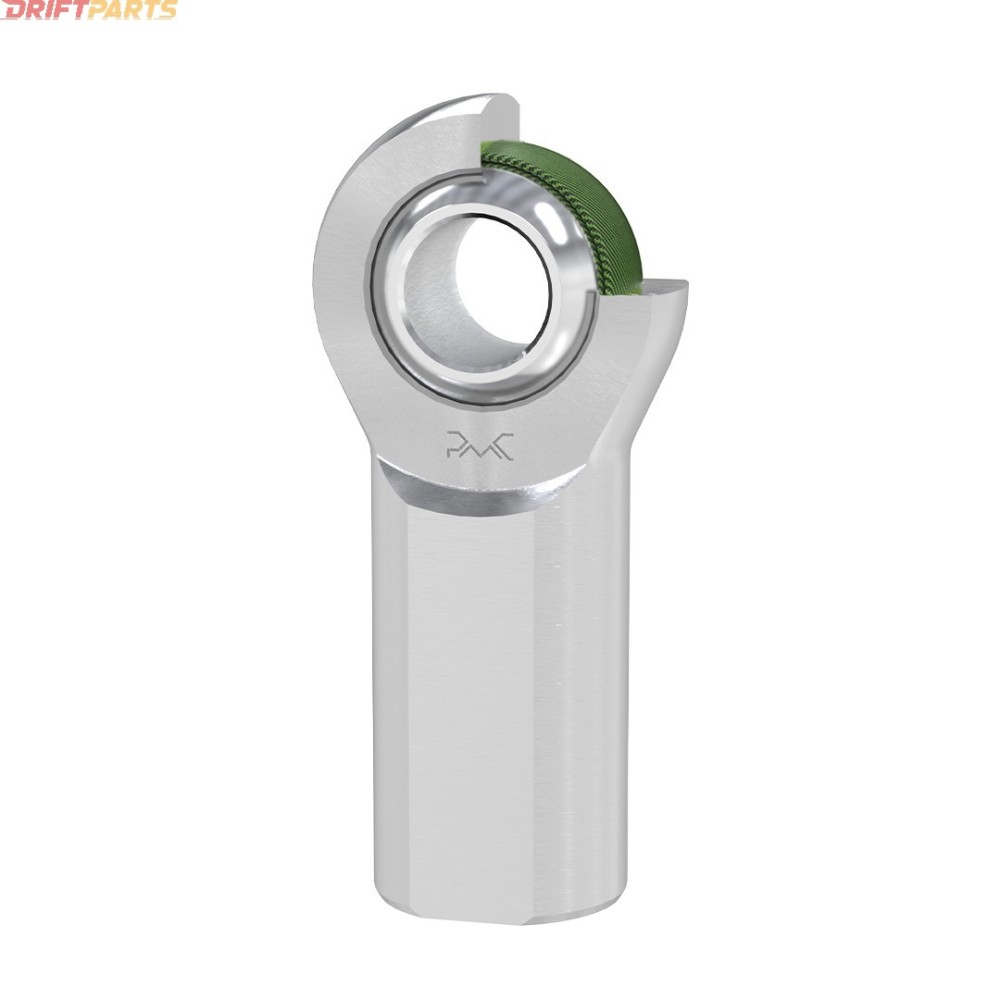

PMC Motorsport RS-Series Rod End / Uniball End - Right External Thread (Female) - M18x1.5

This PMC Motorsport rod end is engineered for systems demanding precise and smooth load transfer, including steering, suspension, and joint applications. It facilitates force transmission in multiple directions while allowing rotational and angular movement. The component comprises a housing and a spherical joint, enabling free movement across various planes.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots and operates without lubrication, minimizing maintenance requirements.
• High Load Capacity: Engineered to handle significant directional loads.
• Corrosion Resistance: Suitable for operation in harsh weather conditions.
• Long Lifespan: Built to endure challenging environments.

Materials:

• Housing: Constructed from heat-treated steel (25CrMo4 - 4130 - 1.7218) with a galvanized hard chrome coating.
• Bearing Bushing: Manufactured via injection molding using Nylon with PTFE.
• Ball: Made from hardened bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31) with a galvanized hard chrome coating.

PTFE Properties:

• Low Friction: Ideal for smooth operations without lubrication.
• High-Temperature Resistance: Functional within -50°C to +150°C.
• Chemical Resistance: Resistant to most chemicals, suitable for aggressive environments.
• Electrical Insulation: Provides protection against voltage surges.

Applications:

• Hydraulics and Pneumatics: Connects hydraulic and pneumatic cylinders.
• Automotive Industry: Utilized in suspension and steering systems.
• Agricultural Machinery: Appropriate for agricultural machine joints.
• Construction Machinery: Applied in joints for construction machinery.

Specifications:

• Thread: M18x1.5, Right Internal
• External diameter of the rod head: 46 mm / 1.81"
• Width of the inner ring: 23 mm / 0.91"
• Width of the outer ring: 16.5 mm / 0.65"
• Length: 71 mm / 2.80"
• Thread length: 27 mm / 1.06"
• Maximum static load: 89.7 kN / 20165.36 lbs
• Maximum dynamic load: 84.2 kN / 18928.91 lbs
• Weight: 369g / 0.814 lbs
• Angular displacement: 32°

Brand: PMC Bearings

Symbol: PMC-M18x1.5P (F)

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
