Rod End Uniball M18x1 5 left male RC

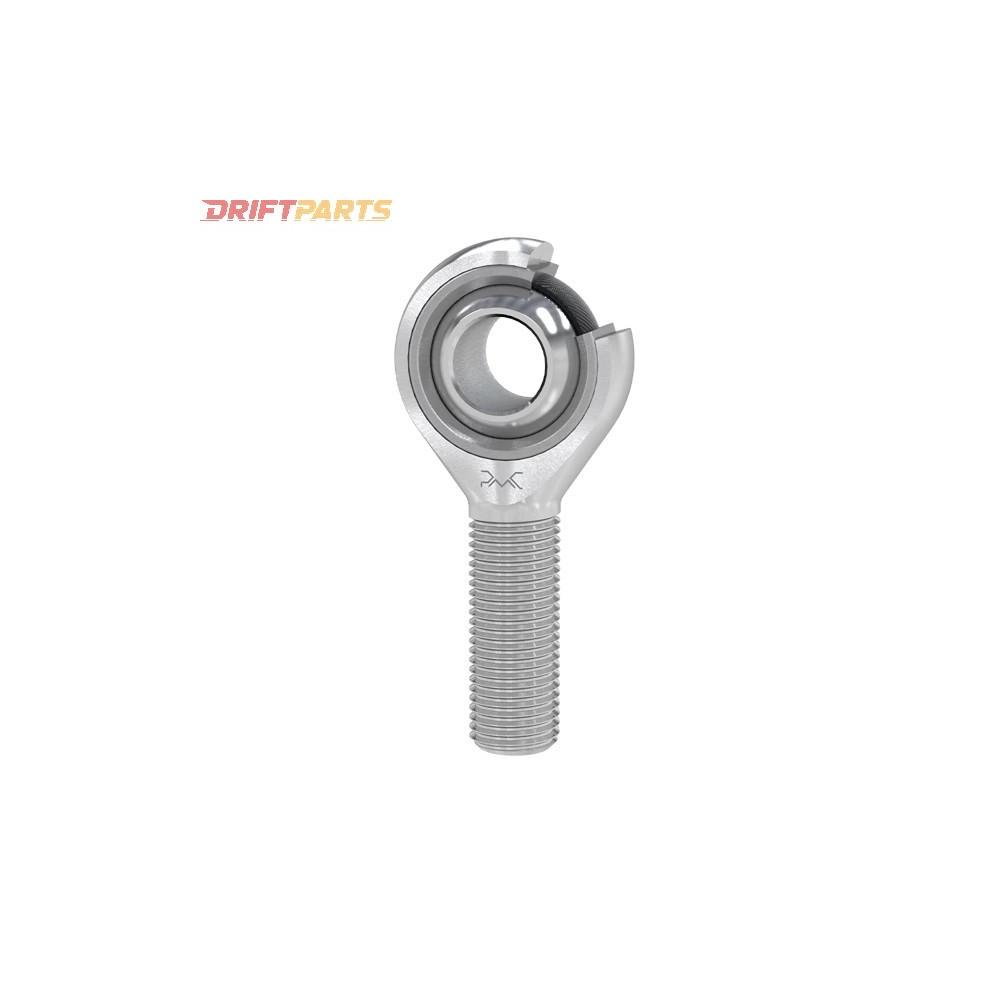

PMC Motorsport RC-Series Rod End / Uniball End - Left External Thread (Male) - M18x1.5

This PMC Motorsport rod end is engineered for precise and smooth load transfer in critical systems such as steering, suspension, and joint applications. It features a left-hand male thread with dimensions of M18x1.5. The component is designed to be maintenance-free and corrosion-resistant, eliminating the need for rubber boots and enabling reliable performance in adverse weather conditions. Its lubricant-free operation minimizes maintenance requirements and costs, while offering a high load capacity, making it ideal for transmitting substantial directional loads.

Constructed with a housing made from heat-treated steel (25CrMo4 - 4130 - 1.7218) and finished with a galvanized hard chrome coating, this rod end ensures durability and longevity. The bearing bushing is crafted from injection-molded Nylon with PTFE, and the ball is composed of hardened bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31) with a galvanized hard chrome finish.

PTFE is utilized for its outstanding physical and chemical properties, including low friction, resistance to high temperatures (-50°C to +150°C), chemical resistance, and excellent electrical insulation. Applications of this technology extend to hydraulic and pneumatic systems, automotive suspension and steering systems, agricultural machinery joints, and construction machinery joints.

Specifications:

• External diameter of the rod head: 42 mm / 1.65"
• Width of the inner ring: 23 mm / 0.91"
• Width of the outer ring: 16.5 mm / 0.65"
• Length: 72 mm / 2.84"
• Thread length: 44 mm
• Angle of deflection: 21°
• Maximum static load: 65.2 kN / 14657.54 lbs
• Maximum dynamic load: 61.2 kN / 13758.3 lbs
• Weight: 265g / 0.58 lbs

Brand: PMC bearings

Symbol: RC-M18x1.5L (M)

Producer code: 5903707416998

Type: PMC Bearing RC Sport - Series

Thread: M18x1.5

Type of thread: Male left

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
