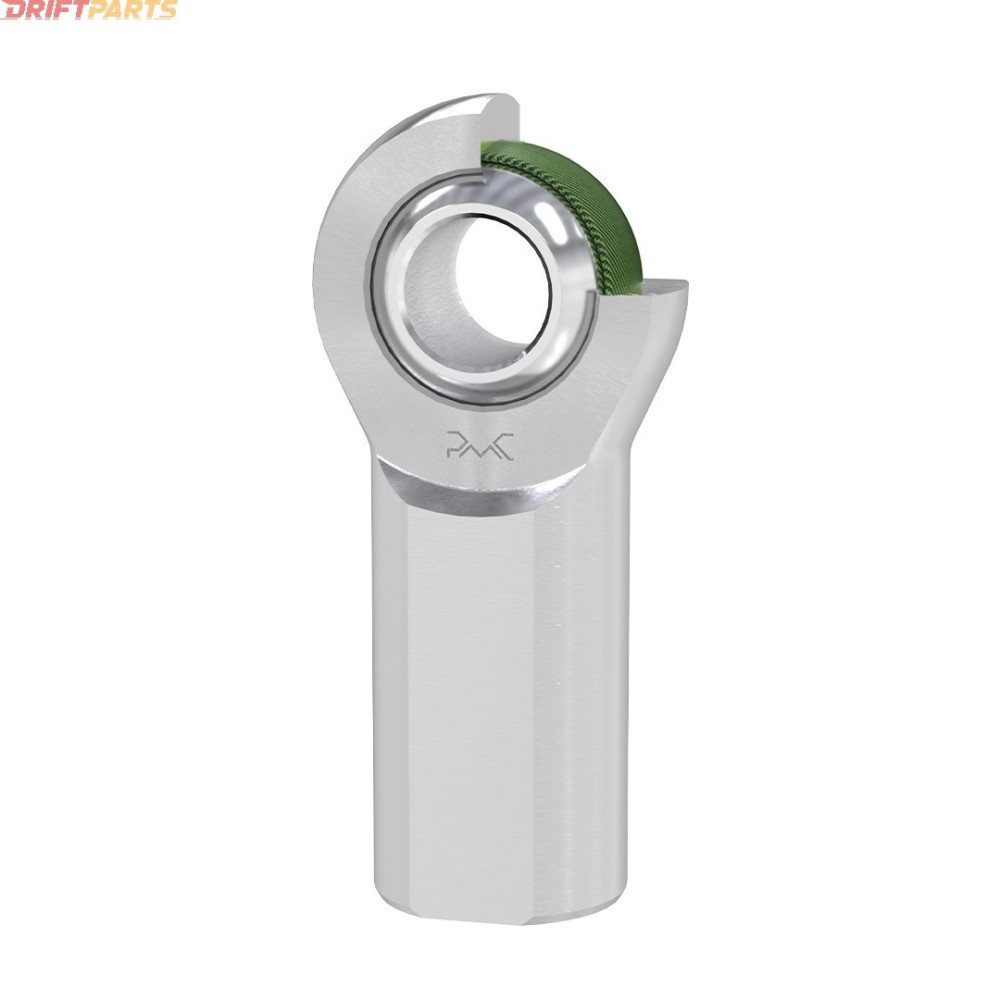

PMC Motorsport RS-Series Rod End / Uniball End - Right External Thread (Female) - M16x2.0

This PMC Motorsport RS-Series rod end is a specialized mechanical component designed for the transmission of force in multiple directions while allowing both rotational and angular movement. Vital for systems necessitating precise load transfer, it finds applications in steering, suspension, and joint systems. The component features a housing (sleeve) and a spherical joint enabling multi-plane movement.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots, thereby reducing maintenance requirements and costs.
• Corrosion-Protection: Engineered for use in harsh weather conditions.
• High Load Capacity: Suitable for transmitting substantial directional loads.
• Extended Lifespan: Built to endure challenging operational environments.

Material Specifications:

• PTFE (Polytetrafluoroethylene): Ensures low friction and high-temperature resistance from -50°C to +150°C, alongside chemical resistance and excellent electrical insulation.
• Housing: Constructed from heat-treated steel (25CrMo4 - 4130 - 1.7218), with a galvanized (hard chrome) coating.
• Bearing Bushing: Composed of Nylon with PTFE, produced via injection molding.
• Ball: Made from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened with a galvanized (hard chrome) coating.

Applications:

• Hydraulics and Pneumatics: Utilized in connections for hydraulic and pneumatic cylinders.
• Automotive Industry: Applicable in suspension and steering systems.
• Agricultural Machinery: Implemented in machine joints.
• Construction Machinery: Used in construction machine joints.

Technical Specifications:

• Thread: M16x2.0, Left Internal
• External Diameter of Rod Head: 42 mm / 1.65"
• Width of Inner Ring: 21 mm / 0.83"
• Width of Outer Ring: 15 mm / 0.59"
• Length: 64 mm / 2.52"
• Thread Length: 24 mm / 0.94"
• Angle of Deflection: 28°
• Maximum Static Load: 74.3 kN / 16711.9 lbs
• Maximum Dynamic Load: 69.3 kN / 15579.26 lbs
• Weight: 254 g / 0.56 lbs

Brand: PMC Bearings

Symbol: PMC-M16x2.0P (F)

Producer Code: 5903707415922

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
