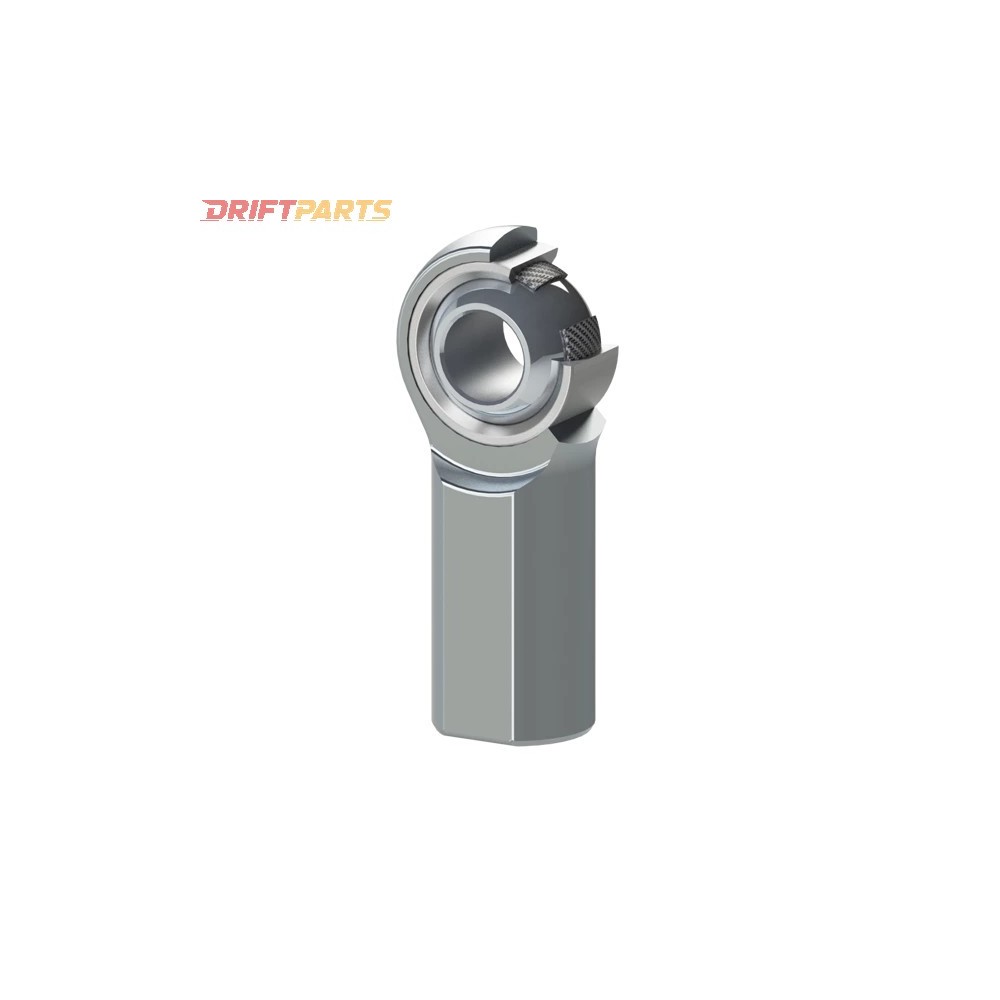

PMC Motorsport RC Sport-Series Rod End - Uniball M16x2.0 - Female Left Thread

This RC Sport-Series Rod End by PMC Motorsport is a specialized mechanical component designed to facilitate the transfer of forces in multiple directions while permitting rotational and articulating motion. It is essential for applications requiring precise and fluid load transfer, particularly in control systems, suspension systems, and mechanical joints. The rod end consists of a robust body (housing) and a spherical joint, enabling movement across various planes.

Key Features:

• Maintenance-Free Uniball: Engineered to resist corrosion without the need for rubber covers.
• High Load Capacity: Suitable for significant directional load transfer.
• Corrosion Resistance: Designed for optimal performance in challenging weather conditions.
• Extended Service Life: Built for durability in severe operating environments.

Material Specifications:

• Body: Manufactured from heat-treatable steel 25CrMo4 (4130, 1.7218), forged and hard chrome plated.
• Bearing Liner (Race): Composed of heat-treatable steel with a PTFE lining.
• Ball: Fabricated from bearing steel 52100 (100Cr6, 1.3505, SUJ2, EN31), hardened and hard chrome plated.

PTFE Properties:

• Low Friction: PTFE's low friction coefficient ensures smooth operation without lubrication.
• High-Temperature Resistance: Functional within a temperature range of -50°C to +150°C.
• Chemical Resistance: Resilient against nearly all chemicals, ideal for aggressive environments.
• Electrical Insulation: Excellent insulator, suitable for applications requiring protection from electrical surges.

Applications:

• Hydraulics and Pneumatics: Utilized in hydraulic and pneumatic cylinder connections.
• Automotive Industry: Applied in suspensions and steering systems.
• Agricultural Machinery: Implemented in joints of agricultural machinery.
• Construction Machinery: Integrated into joints of construction machinery.

Thread Type:

Left Internal Thread - M16x2.0

Brand:

PMC Bearings

Symbol:

RC-M16x2L (F)

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
