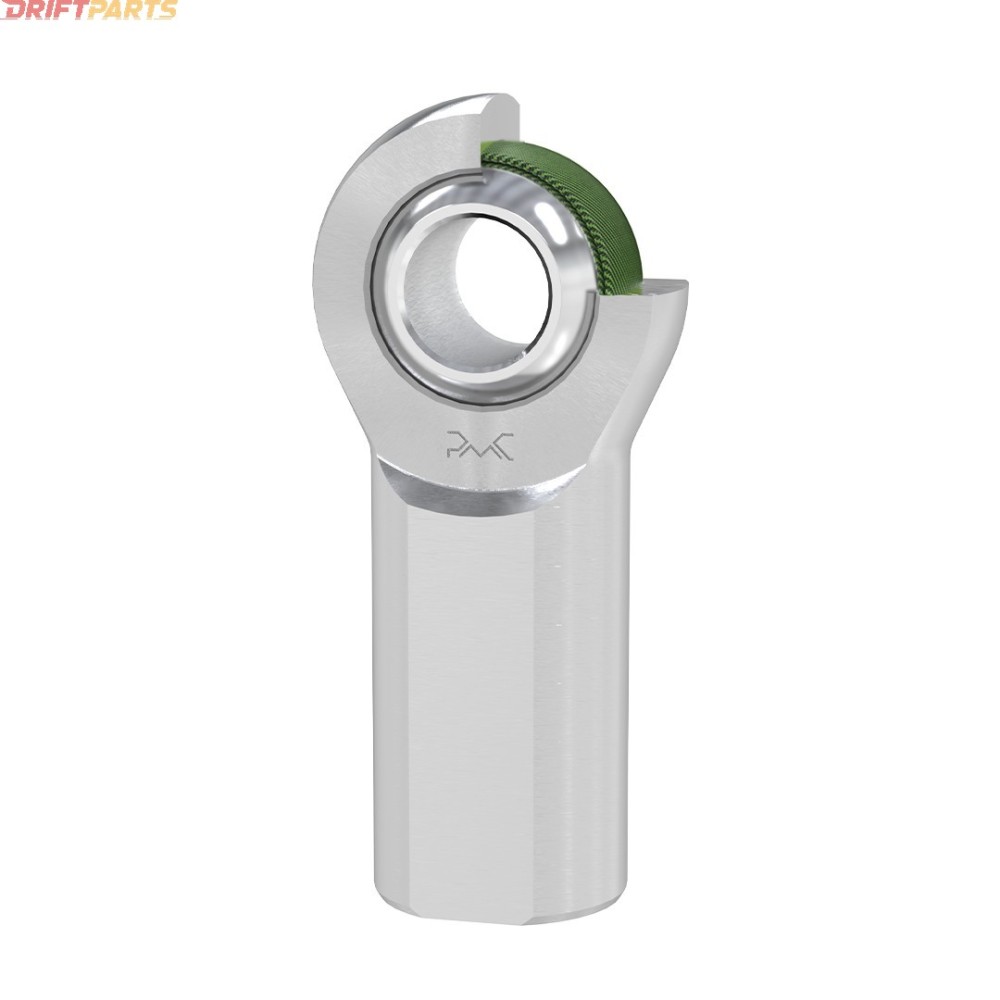

PMC Motorsport RS-Series Rod End / Uniball End - Right External Thread (Female) - M16x1.5

This RS-Series rod end by PMC Motorsport is engineered for applications demanding multidirectional force transmission with rotational and angular movement capabilities. It is integral to systems that necessitate precise and smooth load transfer, particularly in steering, suspension, and joint assemblies. The rod end comprises a housing (sleeve) and a spherical joint, facilitating movement across multiple planes.

Key Features:

• Maintenance-Free Uniball: Operates without the need for rubber boots or lubrication, minimizing maintenance requirements.
• High Load Capacity: Engineered to sustain substantial directional loads.
• Corrosion Resistance: Suitable for deployment in adverse weather conditions.
• Long Lifespan: Retains durability under challenging operational environments.

Material Specifications:

• Housing: Constructed from heat-treated steel 25CrMo4 - 4130 - 1.7218, featuring a galvanized coating (hard chrome).
• Bearing Bushing: Manufactured through injection molding from Nylon with PTFE.
• Ball: Crafted from bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, with hardening and a galvanized coating (hard chrome).

Technical Specifications:

• Thread: M16x1.5, Right Internal
• External Diameter of Rod Head: 42 mm / 1.65"
• Width of Inner Ring: 21 mm / 0.83"
• Width of Outer Ring: 15 mm / 0.59"
• Length: 64 mm / 2.52"
• Thread Length: 24 mm / 0.94"
• Maximum Static Load: 74.3 kN / 16711.9 lbs
• Maximum Dynamic Load: 69.3 kN / 15579.26 lbs
• Weight: 254 g / 0.56 lbs
• Angular Displacement: 28°

Applications:

• Automotive Industry: Employed in suspension and steering systems.
• Hydraulics and Pneumatics: Utilized in connections for hydraulic and pneumatic cylinders.
• Agricultural and Construction Machinery: Applied within joints of agricultural and construction equipment.

PTFE Properties:

• Low Friction: Optimal for applications necessitating smooth, lubrication-free operation.
• High-Temperature Resistance: Functional within a temperature range of -50°C to +150°C.
• Chemical Resistance: Withstands exposure to most chemicals, suitable for aggressive environments.
• Electrical Insulation: Provides excellent electrical insulation, safeguarding against voltage surges.

Brand: PMC Bearings

Type: PMC Bearing RS Performance - Series

Producer Code: 5903707415946

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
