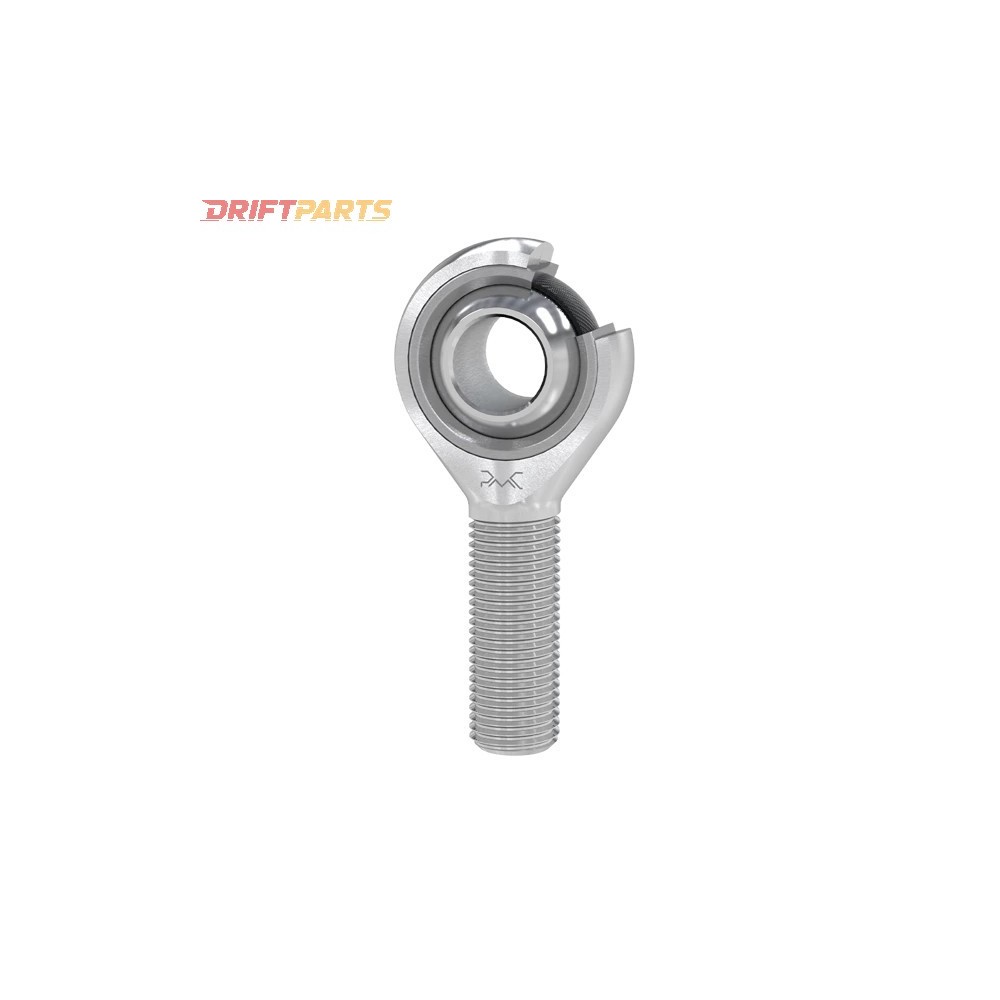

PMC Motorsport RC-Series Rod End / Uniball End - Left External Thread (Male) - M10x1.5

This PMC Motorsport RC-Series rod end is an advanced mechanical component engineered for efficient force transmission across multiple directions while facilitating rotational and angular mobility. It is integral to systems demanding precise and smooth load transfer, specifically in steering, suspension, and joint applications. The component consists of a housing (sleeve) and a spherical joint, allowing for movement across several planes.

Key Features:

• Maintenance-Free Uniball: Designed to eliminate the necessity for rubber boots, thereby reducing maintenance requirements and associated costs.
• High Load Capacity: Capable of handling significant directional loads.
• Corrosion Resistance: Suitable for operation in severe weather conditions.
• Long Lifespan: Ensures durability under challenging operational circumstances.

Material Specifications:

• PTFE (Polytetrafluoroethylene): Provides low friction, high-temperature resistance (-50°C to +150°C), chemical resistance, and robust electrical insulation.
• Housing: Forged from heat-treated steel (25CrMo4 - 4130 - 1.7218) with a galvanized hard chrome coating.
• Bearing Bushing: Fabricated via injection molding from Nylon with PTFE.
• Ball: Constructed from hardened bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31) with a galvanized hard chrome finish.

Applications:

• Hydraulics and Pneumatics: Suitable for connections in hydraulic and pneumatic cylinders.
• Automotive Industry: Ideal for integration into suspension and steering systems.
• Agricultural Machinery: Applicable in joints of agricultural machinery.
• Construction Machinery: Suitable for use in construction machine joints.

Technical Specifications:

• Thread: M10x1.5, Male left
• External Diameter of Rod Head: 27 mm / 1.06"
• Width of Inner Ring: 14 mm / 0.55"
• Width of Outer Ring: 10.5 mm / 0.41"
• Length: 48 mm / 1.89"
• Thread Length: 29 mm / 1.14"
• Angle of Deflection: 17°
• Maximum Static Load: 25.1 kN / 5642.7 lbs
• Maximum Dynamic Load: 25.1 kN / 5642.7 lbs
• Weight: 55g / 0.12 lbs

This rod end belongs to the PMC Bearing RC Sport-Series, tailored for high-performance applications demanding durability and precision.

Note: This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
