Rod End Uniball M16x2 0 left male

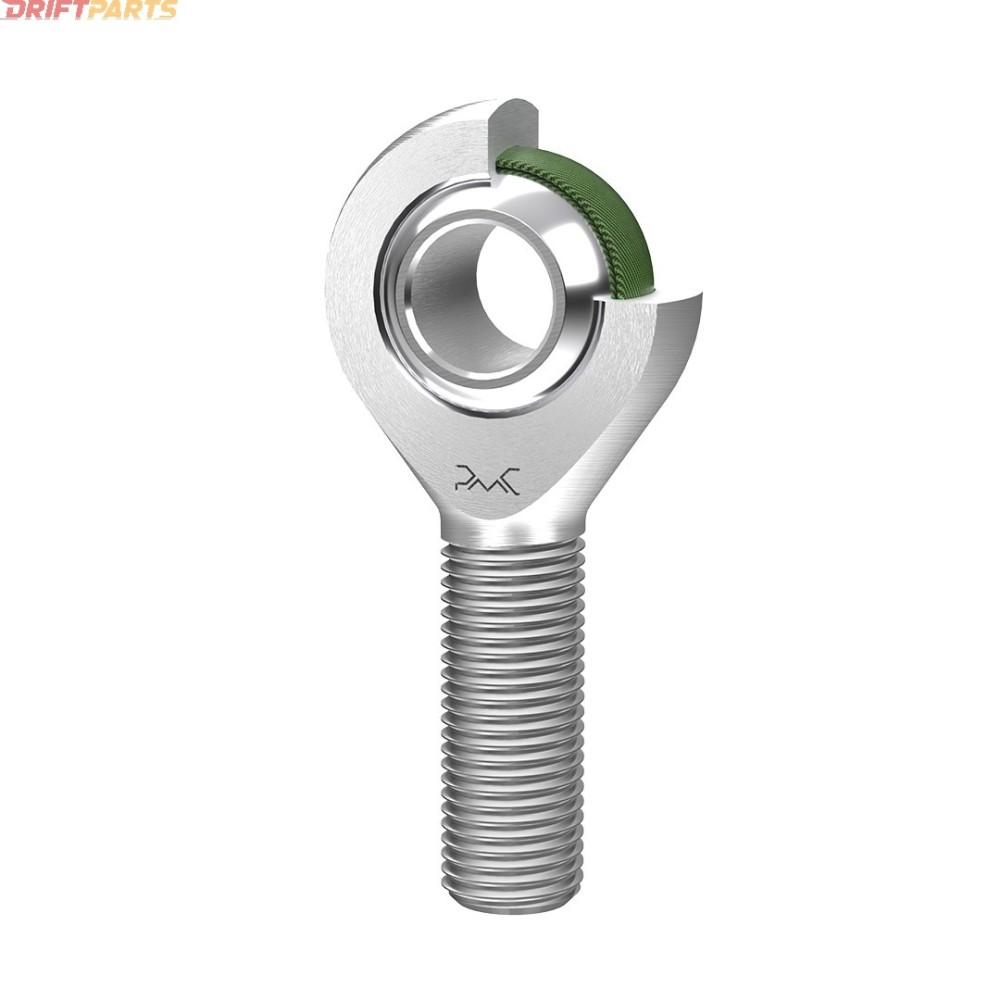

PMC Motorsport RS-Series Rod End / Uniball End - Left External Thread (Male) - M16x2.0

This PMC Motorsport RS-Series rod end is a precision-engineered mechanical component, specifically designed for applications demanding accurate and smooth load transfer such as steering, suspension, and joint systems. The component features a left-hand male thread with dimensions of M16x2.0. It is constructed to be maintenance-free and corrosion-resistant, eliminating the requirement for rubber boots and lubrication, thereby reducing maintenance demands and costs. Its high load capacity makes it suitable for transmitting substantial directional loads, even in adverse weather conditions, ensuring longevity.

Incorporating a PTFE (Polytetrafluoroethylene) bearing, this rod end is characterized by low friction, excellent resistance to high temperatures, chemical exposure, and superior electrical insulation properties. It operates efficiently within a temperature range of -50°C to +150°C and is highly resistant to nearly all chemicals.

This component is applicable in various sectors, including:

• Hydraulics and pneumatics for connections in hydraulic and pneumatic cylinders
• The automotive industry for suspension and steering systems
• Agricultural machinery for machine joints
• Construction machinery for structural joints

Technical Specifications:

• Housing: Steel, heat-treated material 25CrMo4 - 4130 - 1.7218, forged with galvanized coating (hard chrome)
• Bearing Bushing: Injection-molded Nylon with PTFE
• Ball: Bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened with galvanized coating (hard chrome)
• External diameter of the rod head: 42 mm / 1.65"
• Width of the inner ring: 21 mm / 0.83"
• Width of the outer ring: 15 mm / 0.59"
• Length: 66 mm / 2.60"
• Thread length: 37 mm / 1.46"
• Angle of misalignment: 28°
• Maximum static load: 73.7 kN / 16568.42 lbs
• Maximum dynamic load: 69.3 kN / 15579.26 lbs
• Weight: 198g / 0.44 lbs

Brand: PMC bearings

Symbol: PMC-M16x2.0L (M)

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
