Rod End Uniball M12x1 5 right male RC

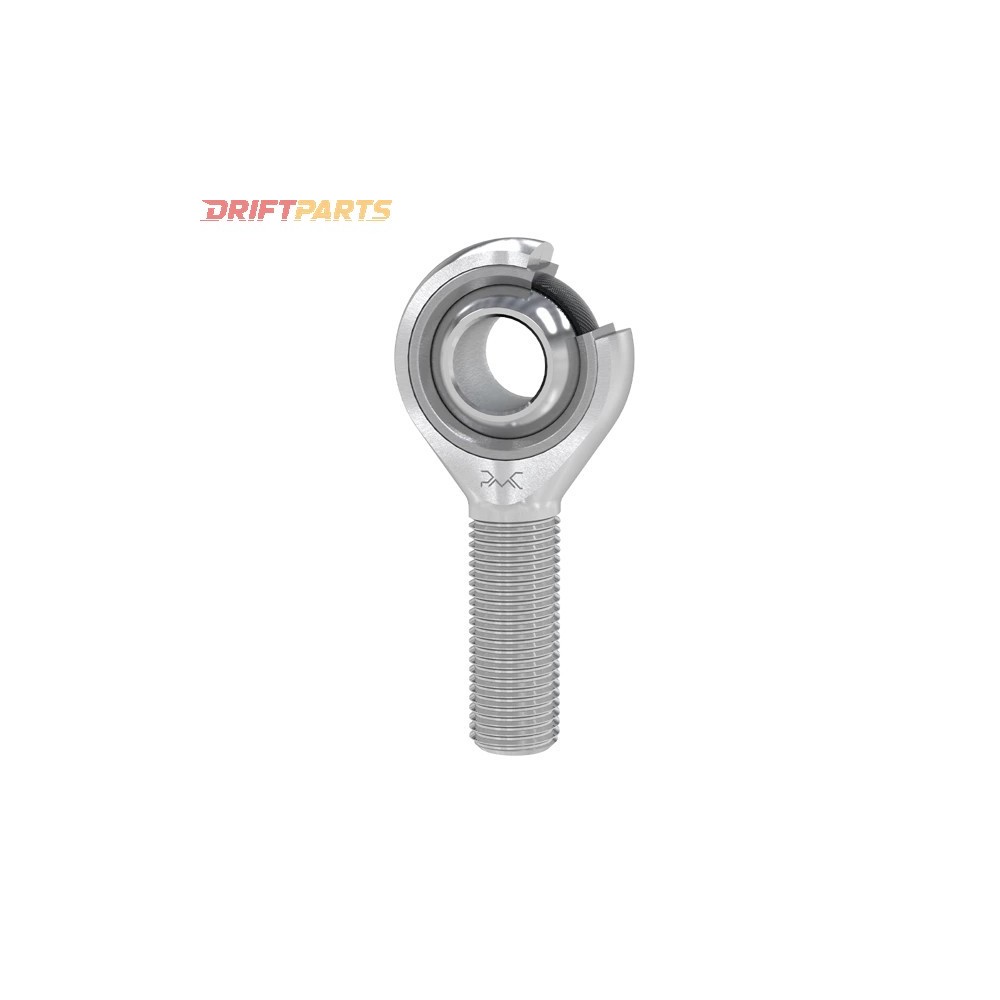

PMC Motorsport RC-Series Rod End / Uniball End - Right External Thread (Male) - M12x1.5

The PMC Motorsport RC-Series rod end is engineered for precise load transfer applications within steering, suspension, and joint systems. This component features a right external male thread, sized at M12x1.5. Noteworthy for its maintenance-free and corrosion-protected design, it operates without the need for rubber boots or lubrication, thus minimizing maintenance requirements and associated costs. It is optimized for handling substantial directional loads and is well-suited for use in adverse weather conditions, attributed to its corrosion-resistant properties and extended durability.

The rod end is constructed with PTFE (Polytetrafluoroethylene), recognized for its low friction coefficient, high-temperature tolerance (-50°C to +150°C), resistance to chemicals, and superior electrical insulation capabilities. The housing is fabricated from heat-treated steel (25CrMo4 - 4130 - 1.7218), enhanced by a galvanized coating with hard chrome. The bearing bushing is crafted through injection molding using nylon with PTFE, and the ball is manufactured from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), also hardened and coated with hard chrome.

Key specifications:

• External rod head diameter: 32 mm / 1.26"
• Inner ring width: 16 mm / 0.63"
• Outer ring width: 12 mm / 0.47"
• Total length: 54 mm / 2.13"
• Thread length: 33 mm / 1.30"
• Angular displacement capacity: 17°
• Maximum static load capacity: 33.6 kN / 7553.58 lbs
• Maximum dynamic load capacity: 30.7 kN / 6901.63 lbs
• Weight: 85g / 0.19 lbs

This rod end is applicable in industries such as hydraulics and pneumatics for cylinder connections, the automotive sector for suspension and steering systems, agricultural machinery for machine joints, and construction machinery for various joints. It is a component of the PMC Bearing RC Sport - Series, identified by producer code 5903707416974.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
