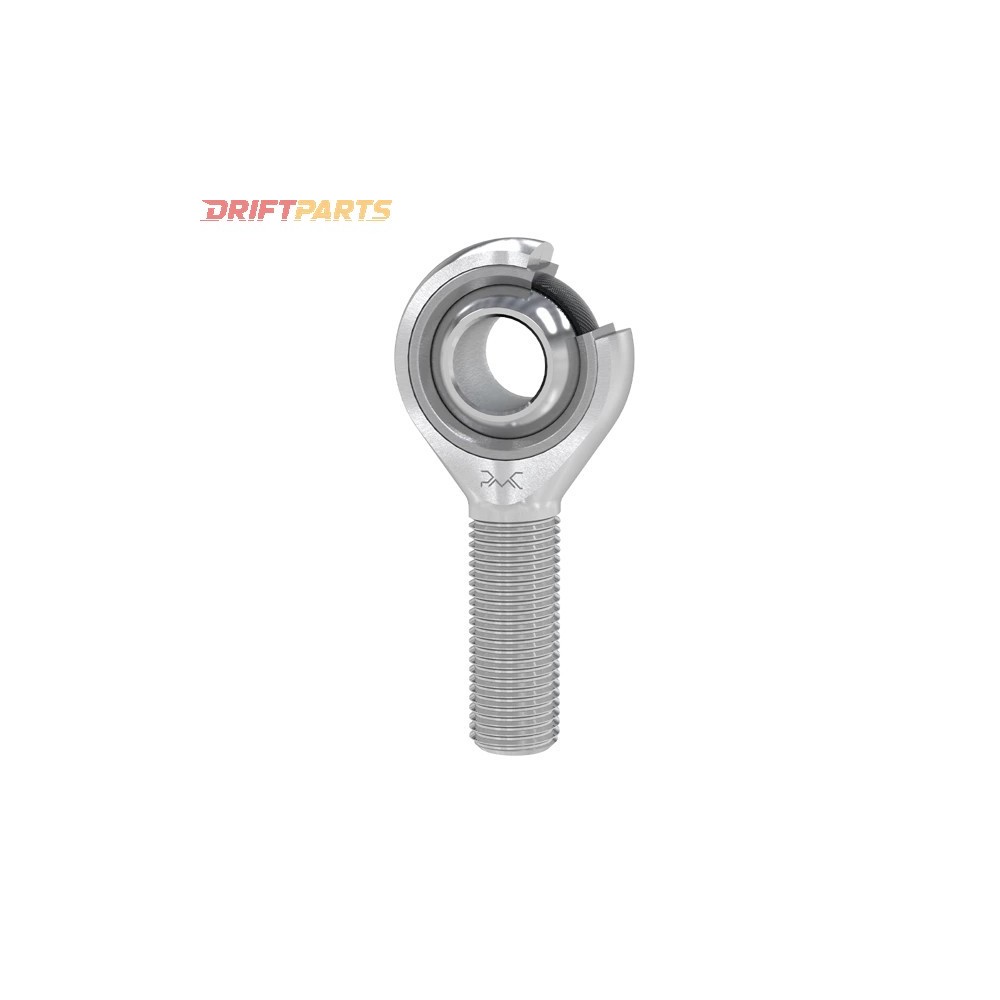

PMC Motorsport RC-Series Rod End / Uniball End - Right External Thread (Male) - M16x1.5

The PMC Motorsport RC-Series Rod End is a high-precision mechanical component engineered for transmitting force in multiple directions while accommodating rotational and angular movement. Essential for systems requiring accurate and smooth load transfer, this rod end is applicable in steering, suspension, and joint mechanisms. The component comprises a housing (sleeve) and a spherical joint, facilitating multi-plane movement.

Key Features:

• Maintenance-Free Uniball: Operates without rubber boots and lubrication, minimizing maintenance requirements and costs.
• High Load Capacity: Designed to handle significant directional loads.
• Corrosion Resistance: Suitable for operation in adverse weather conditions.
• Long Lifespan: Engineered for durability under strenuous operational conditions.

Material Specifications:

• Housing: Constructed from heat-treated steel (25CrMo4 - 4130 - 1.7218) with a galvanized coating (hard chrome).
• Bearing Bushing: Fabricated from injection-molded Nylon and PTFE.
• Ball: Made from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened with a galvanized coating (hard chrome).

PTFE Properties:

• Low Friction: Optimal for applications necessitating smooth operation without lubrication.
• High-Temperature Resistance: Functional within a temperature range of -50°C to +150°C.
• Chemical Resistance: Resistant to most chemicals, ideal for aggressive environments.
• Electrical Insulation: Offers superior protection against voltage surges.

Applications:

• Hydraulics and Pneumatics: Suitable for connections in hydraulic and pneumatic cylinders.
• Automotive Industry: Utilized in suspension and steering systems.
• Agricultural Machinery: Appropriate for joints in agricultural machinery.
• Construction Machinery: Applicable in joints for construction machinery.

Technical Specifications:

• Thread: M16x1.5, Male Right
• D (external diameter of the rod head): 38 mm / 1.50"
• W (width of the inner ring): 21 mm / 0.83"
• T (width of the outer ring): 22 mm / 0.87"
• L (length): 66 mm / 2.60"
• GM (thread length): 40 mm / 1.57"
• Angle of deflection: 23°
• Maximum static load: 53.6 kN / 12049.76 lbs
• Maximum dynamic load: 53.6 kN / 12049.76 lbs
• Weight: 185g / 0.41 lbs

Additional Information:

• Brand: PMC Bearings
• Symbol: RC-M16x1.5P (M)
• Producer Code: 5903707416943
• Type: PMC Bearing RC Sport - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
