Tie rod end tie rod end uniball GASW 20 FLURO M20x1 5 male

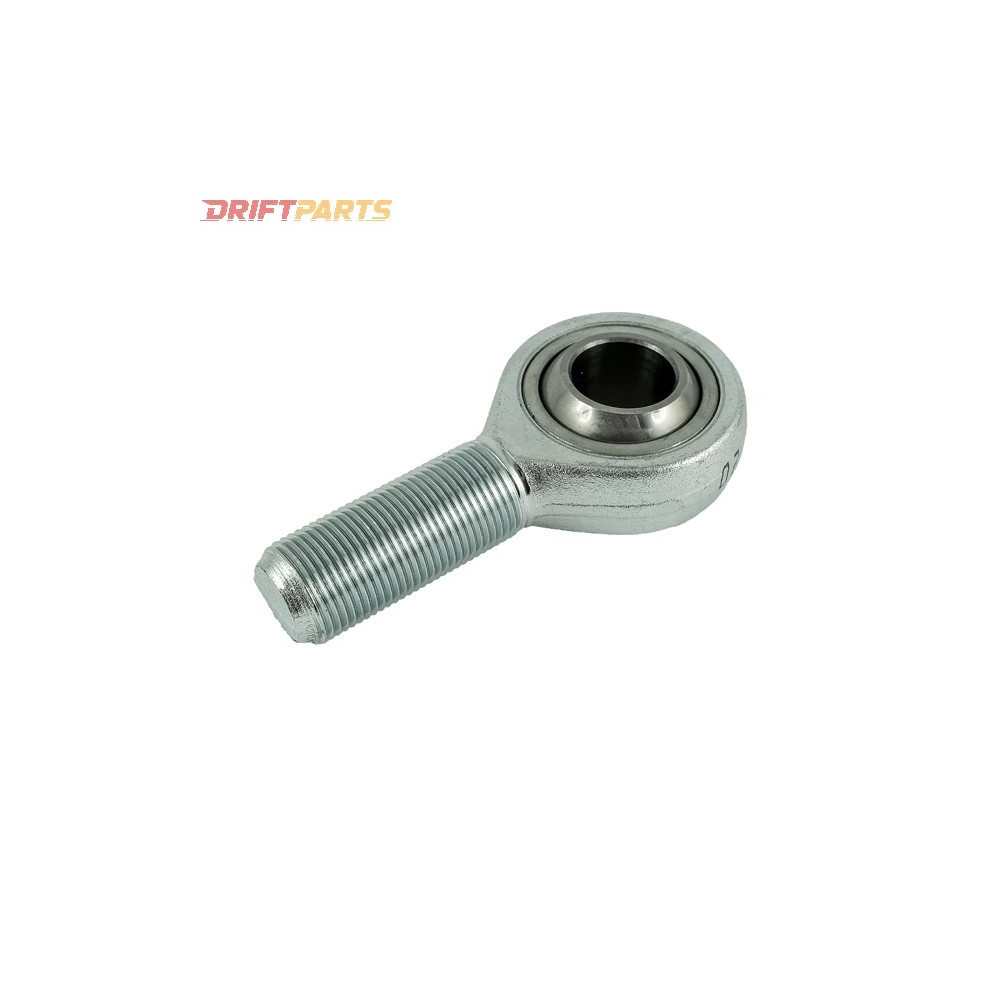

The GASW 20 FLURO Rod End, featuring an M20x1.5 external thread, is engineered for dynamic load applications within motorsport contexts. As part of the GASW Series, this rod end incorporates a maintenance-free design facilitated by a PTFE insert. It is available in two material configurations: free-cutting steel or heat-treatable steel, both treated with zinc plating for enhanced durability.

Technical Specifications:

• Thread Type: M20x1.5, right-hand thread.
• Sliding Pair Composition: Chrome-plated steel/PTFE.
• Housing Material Options:
  • Sizes up to 12: Free-cutting steel, specifically DE 9SMnPb28K, FR S250Pb, IT CF9SMnPb28, SE 1912, GB 230M07, US 12L 13, and turned.
  • Sizes from 14: Heat-treatable steel, specifically DE C22, FR XC25, IT C21, SE 1450, GB 070M20, US M1023, and forged.
• Bearing Liner: Composed of free-cutting steel with a bonded PTFE layer.
• Inner Ring: Fabricated from bearing steel DE FR IT 100Cr6, SE 2258, GB 2S135, US Aisi 52100, and is hardened, ground, and polished for precision.

Dimensional Information:

• External Diameter of Rod Head (D): 50 mm / 1.97 inches.
• Width of Inner Ring (W): 25 mm / 0.99 inches.
• Width of Outer Ring (T): 18 mm / 0.71 inches.
• Length (L): 78 mm / 3.07 inches.
• Thread Length (GM): 47 mm / 1.85 inches.
• Angle of Deflection: 28°.
• Maximum Static Load Capacity: 44.0 kN / 9891.59 lbs.
• Maximum Dynamic Load Capacity: 78.0 kN / 17535.10 lbs.
• Weight: 348g / 0.77 lbs.

This rod end is ideally suited for high-load capacity applications requiring maintenance-free performance.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
