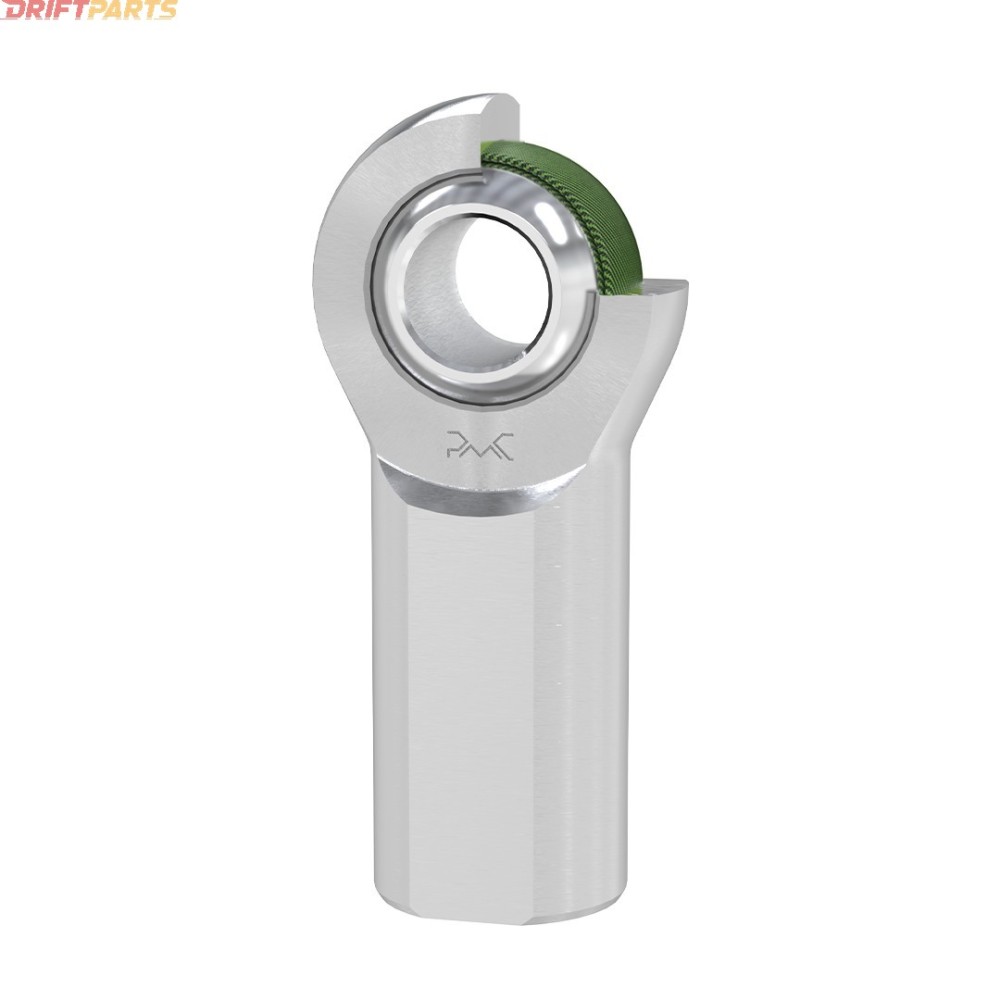

PMC Motorsport RS-Series Rod End / Uniball End - Left External Thread (Female) - M16x1.5

The PMC Motorsport RS-Series Rod End is engineered for force transmission in multidirectional applications, facilitating both rotational and angular motion. It is crucial for systems demanding precise load transfer, such as steering, suspension, and joint assemblies. This rod end comprises a steel housing and a spherical joint, allowing multidirectional movement.

Key Features:

• Maintenance-Free Uniball with Corrosion Protection: Operates without rubber boots or lubrication, minimizing maintenance and related costs.
• High Load Capacity: Capable of handling substantial directional loads.
• Corrosion Resistance: Suitable for adverse weather conditions.
• Long Lifespan: Designed for durability under challenging operational environments.

Material Specifications:

• Housing: Constructed from heat-treated 25CrMo4 - 4130 - 1.7218 steel, forged and galvanized (hard chrome).
• Bearing Bushing: Nylon with PTFE, produced via injection molding.
• Ball: Fabricated from 52100, 100Cr6, 1.3505, SUJ2, EN31 bearing steel, hardened and galvanized (hard chrome).

Technical Details:

• Brand: PMC Bearings
• Symbol: PMC-16x1.5L (F)
• Type: PMC Bearing RS Performance Series
• Thread: M16x1.5, Left Internal
• External Diameter of Rod Head: 42 mm / 1.65"
• Width of Inner Ring: 21 mm / 0.83"
• Width of Outer Ring: 15 mm / 0.59"
• Length: 64 mm / 2.52"
• Thread Length: 24 mm / 0.94"
• Angular Displacement: 28°
• Maximum Static Load: 74.3 kN / 16711.9 lbs
• Maximum Dynamic Load: 69.3 kN / 15579.26 lbs
• Weight: 254 g / 0.56 lbs

Applications:

• Hydraulics and Pneumatics: Suited for hydraulic and pneumatic cylinder connections.
• Automotive Industry: Utilized in suspension and steering systems.
• Agricultural Machinery: Applicable in agricultural machine joints.
• Construction Machinery: Suitable for construction machine joints.

PTFE Properties:

• Low Friction: Optimized for applications requiring lubrication-free operation.
• High-Temperature Resistance: Functional within a temperature range from -50°C to +150°C.
• Chemical Resistance: Resistant to most chemicals, ideal for aggressive environments.
• Electrical Insulation: Provides robust protection against voltage surges.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
