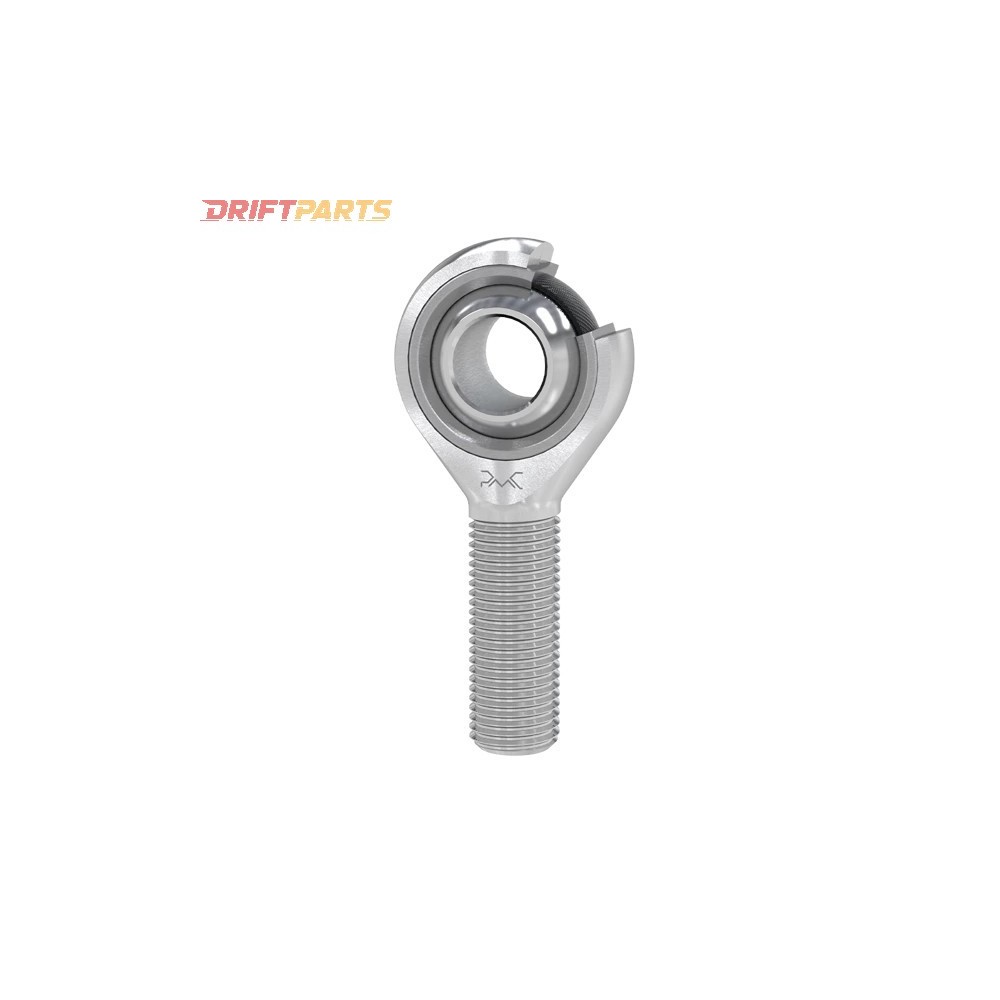

Rod End Uniball M18x1 5 right male RC

The PMC Motorsport RC-Series Rod End / Uniball End with Right External Thread (Male) M18x1.5 is engineered for systems necessitating precise and efficient load transfer, including steering, suspension, and joint systems. The component features a housing and a spherical joint, facilitating unrestricted movement across multiple planes.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots, reducing maintenance requirements and associated costs.
• High Load Capacity: Capable of handling substantial directional loads.
• Corrosion Resistance: Suitable for operation in adverse weather conditions.
• Long Lifespan: Durable under demanding operational scenarios.

Material Specifications:

• Housing: Fabricated from heat-treated steel (25CrMo4 - 4130 - 1.7218), forged and finished with galvanized hard chrome.
• Bearing Bushing: Constructed from injection-molded nylon with PTFE.
• Ball: Composed of bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened and finished with galvanized hard chrome.

PTFE Properties:

• Low Friction: Ideal for applications demanding seamless operation without lubrication.
• High-Temperature Resistance: Functional within a temperature range of -50°C to +150°C.
• Chemical Resistance: Resistant to most chemicals, suitable for aggressive environments.
• Electrical Insulation: Provides protection against voltage surges.

Applications:

• Hydraulics and Pneumatics: Utilized in connections for hydraulic and pneumatic cylinders.
• Automotive Industry: Implemented in suspension and steering systems.
• Agricultural Machinery: Applicable to joints in agricultural machines.
• Construction Machinery: Utilized in joints for construction machinery.

Technical Specifications:

• Thread: M18x1.5, Male Right
• External Diameter of Rod Head: 42 mm / 1.65"
• Width of Inner Ring: 23 mm / 0.91"
• Width of Outer Ring: 16.5 mm / 0.65"
• Length: 72 mm / 2.84"
• Thread Length: 44 mm
• Maximum Static Load: 65.2 kN / 14657.54 lbs
• Maximum Dynamic Load: 61.2 kN / 13758.3 lbs
• Weight: 265g / 0.58 lbs

Brand: PMC Bearings

Symbol: RC-M18x1.5P (M)

Producer Code: 5903707416981

Type: PMC Bearing RC Sport - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
