Rod End Uniball M12x1 75 left female

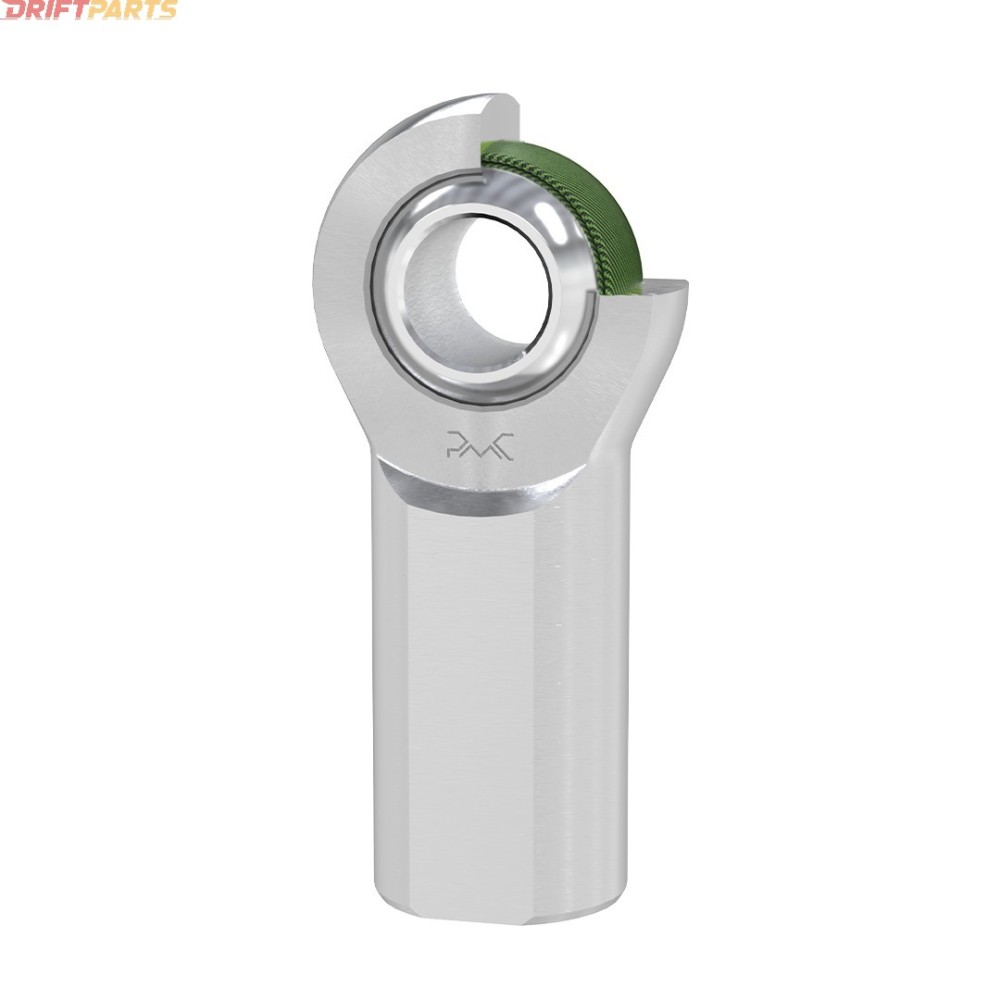

PMC Motorsport RS-Series Rod End / Uniball End - Left External Thread (Female) - M12x1.75

This rod end is a mechanical component specifically engineered to transmit force across various directions while accommodating rotational and angular movement. It plays a critical role in precision load transfer systems such as steering, suspension, and joint systems. The component is composed of a housing and a spherical joint, allowing movement in multiple planes.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots and lubrication, reducing maintenance requirements.
• High Load Capacity: Capable of handling large directional loads, ensuring reliable performance under stress.
• Corrosion Resistance: Engineered for use in harsh environmental conditions.
• Longevity: Designed to withstand demanding operational conditions.

Material Specifications:

• Housing: Constructed from heat-treated steel 25CrMo4 - 4130 - 1.7218, with a forged, galvanized hard chrome coating.
• Bearing Bushing: Made via injection molding using Nylon with PTFE.
• Ball: Fabricated from bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened with a galvanized hard chrome coating.

PTFE (Polytetrafluoroethylene) Properties:

• Low Friction: Exhibits one of the lowest coefficients of friction among solid materials, suitable for lubrication-free applications.
• High-Temperature Resistance: Operates effectively within a temperature range of -50°C to +150°C.
• Chemical Resistance: Resistant to nearly all chemicals, apt for aggressive environments.
• Electrical Insulation: Offers excellent electrical insulation properties, ideal for voltage surge protection.

Applications:

• Hydraulics and Pneumatics: Utilized in hydraulic and pneumatic cylinder connections.
• Automotive Industry: Integral to suspension and steering systems.
• Agricultural Machinery: Supports joints in agricultural machinery.
• Construction Machinery: Employed in joints for construction machinery.

Technical Specifications:

• Brand: PMC bearings
• Symbol: PMC-M12x1.75L (F)
• Producer Code: 5903707415861
• Type: PMC Bearing RS Performance Series
• Thread: M12x1.75, Left Internal
• External Diameter of Rod Head (D): 32 mm / 1.26"
• Width of Inner Ring (W): 16 mm / 0.63"
• Width of Outer Ring (T): 12 mm / 0.47"
• Length (L): 50 mm / 1.97"
• Thread Length (GM): 18 mm / 0.71"
• Angular Displacement: 24°
• Maximum Static Load: 46.2 kN / 10386.2 lbs
• Maximum Dynamic Load: 42.2 kN / 9495.9 lbs
• Weight: 137g / 0.302 lbs

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
