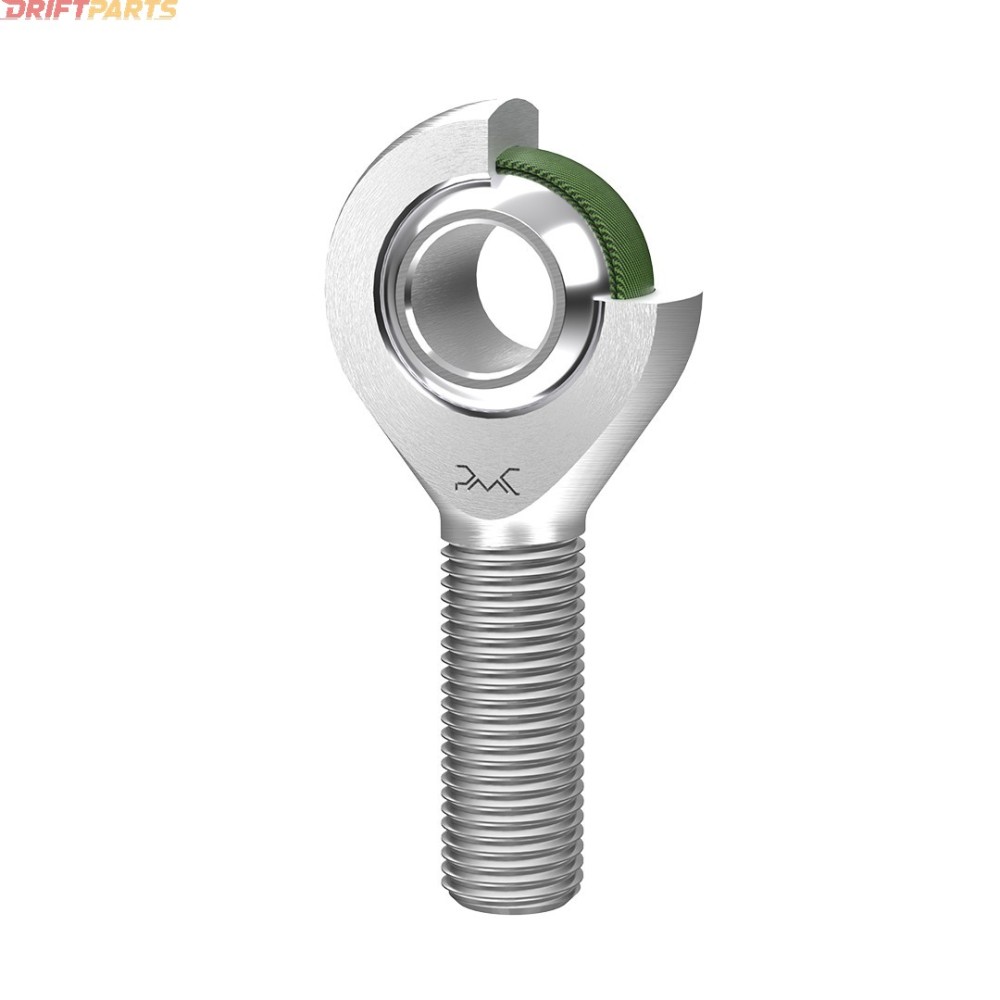

Rod End Uniball M10x1 25 left male

The PMC Motorsport RS-Series Rod End, also known as a Uniball End, is engineered for applications necessitating precise and seamless load transfer, particularly within steering, suspension, and joint systems. This component comprises a housing (sleeve) and a spherical joint, facilitating unrestricted movement across multiple planes.

Key Features:

• Maintenance-free uniball with integrated corrosion protection, negating the requirement for rubber boots.
• Lubricant-free operation, reducing maintenance demands and associated costs.
• Engineered for high load capacity, suitable for transmitting significant directional loads.
• Corrosion-resistant construction, ideal for operation in adverse weather conditions.
• Designed for longevity, ensuring durability under challenging operational environments.

Material Specifications:

• Housing: Fabricated from heat-treated 25CrMo4 (4130, 1.7218) steel, with a forged and galvanized (hard chrome) finish.
• Bearing Bushing: Injection-molded from Nylon with PTFE.
• Ball: Composed of bearing steel 52100 (100Cr6, 1.3505, SUJ2, EN31), hardened and galvanized (hard chrome) coated.

PTFE Properties:

• Exhibits low friction, offering smooth operation without lubrication.
• High-temperature resistance, operating effectively from -50°C to +150°C.
• Exceptional chemical resistance, suitable for use in aggressive environments.
• Functions as an excellent electrical insulator, providing protection against voltage surges.

Applications:

• Hydraulics and Pneumatics: Ideal for hydraulic and pneumatic cylinder connections.
• Automotive Industry: Perfect for suspension and steering systems.
• Agricultural Machinery: Suitable for joints in agricultural equipment.
• Construction Machinery: Applicable for joints in construction machinery.

Product Specifications:

• Thread: M10x1.25, Male left
• External Diameter of the Rod Head: 27 mm / 1.06"
• Inner Ring Width: 14 mm / 0.55"
• Outer Ring Width: 10.5 mm / 0.41"
• Length: 48 mm / 1.89"
• Thread Length: 28 mm / 1.10"
• Angular Displacement: 23°
• Maximum Static Load: 31.4 kN / 7,051.99 lbs
• Maximum Dynamic Load: 28.1 kN / 6,314.18 lbs
• Weight: 62 g / 0.137 lb

Brand: PMC Bearings

Symbol: PMC-M10x1.25L (M)

Producer Code: 5903707415717

Type: PMC Bearings RS Performance Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
