Rod End Uniball M20x1 5 right female

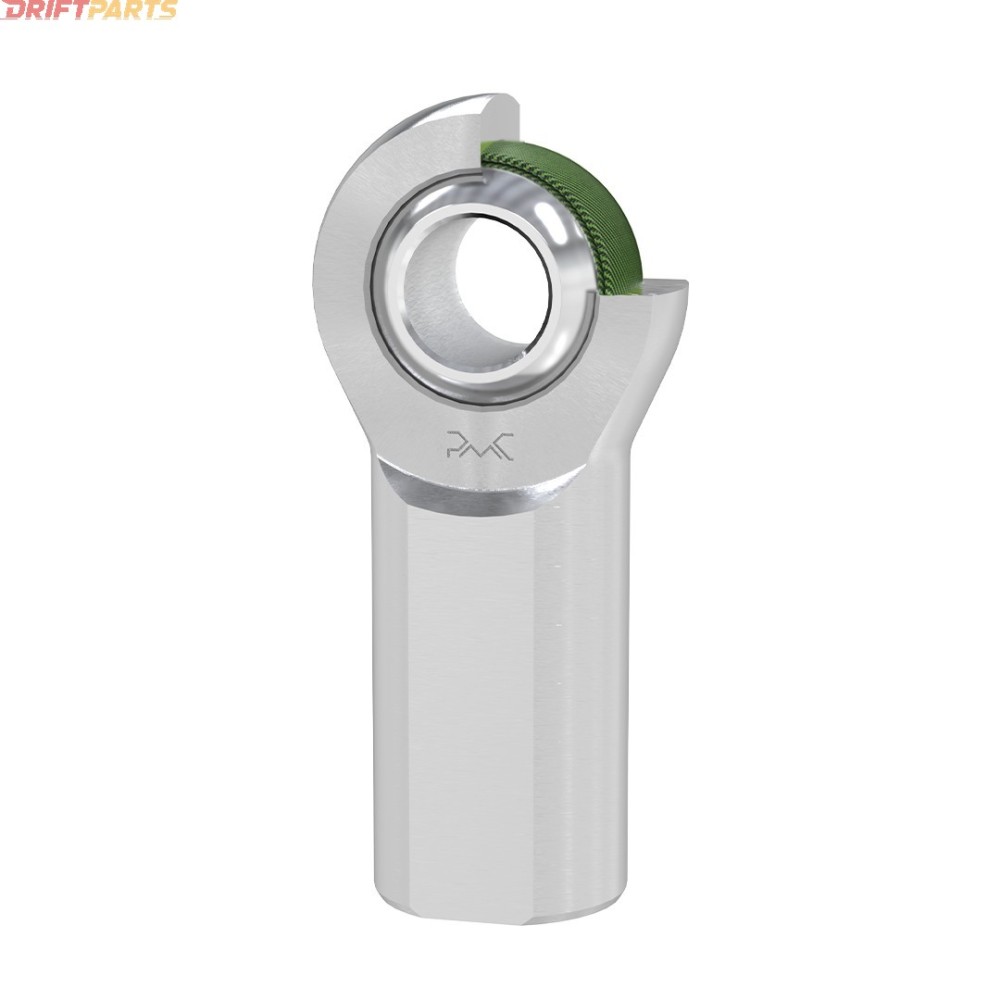

PMC Motorsport RS-Series Rod End / Uniball End - Right External Thread (Female) - M20x1.5

This high-precision rod end is engineered for applications demanding efficient and smooth load transfer, particularly in steering, suspension, and joint systems. It features a right internal thread of size M20x1.5, designed to be maintenance-free and corrosion-resistant, eliminating the need for rubber boots. The component is optimized for high load capacity applications and is capable of withstanding adverse weather conditions, ensuring durability in demanding operational environments.

Constructed from premium materials, the housing consists of heat-treated steel 25CrMo4 - 4130 - 1.7218, with a forged and galvanized hard chrome coating. The bearing bushing is manufactured via injection molding using Nylon and PTFE. The ball is composed of bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, also hardened and coated with galvanized hard chrome. PTFE's properties—low friction, high-temperature resistance ranging from -50°C to +150°C, chemical resistance, and excellent electrical insulation—make this rod end suitable for use in hydraulics and pneumatics, automotive suspension and steering systems, as well as agricultural and construction machinery.

Specifications:

• External diameter of the rod head: 50 mm / 1.97"
• Width of the inner ring: 25 mm / 0.99"
• Width of the outer ring: 18 mm / 0.71"
• Length: 77 mm / 3.03"
• Thread length: 30 mm / 1.18"
• Angular displacement: 26°
• Maximum static and dynamic load: 102.9 kN / 23132.84 lbs
• Weight: 481g / 1.06 lbs

Brand: PMC bearings

Symbol: PMC-M20x1.5P (F)

Producer code: 5903707415991

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
