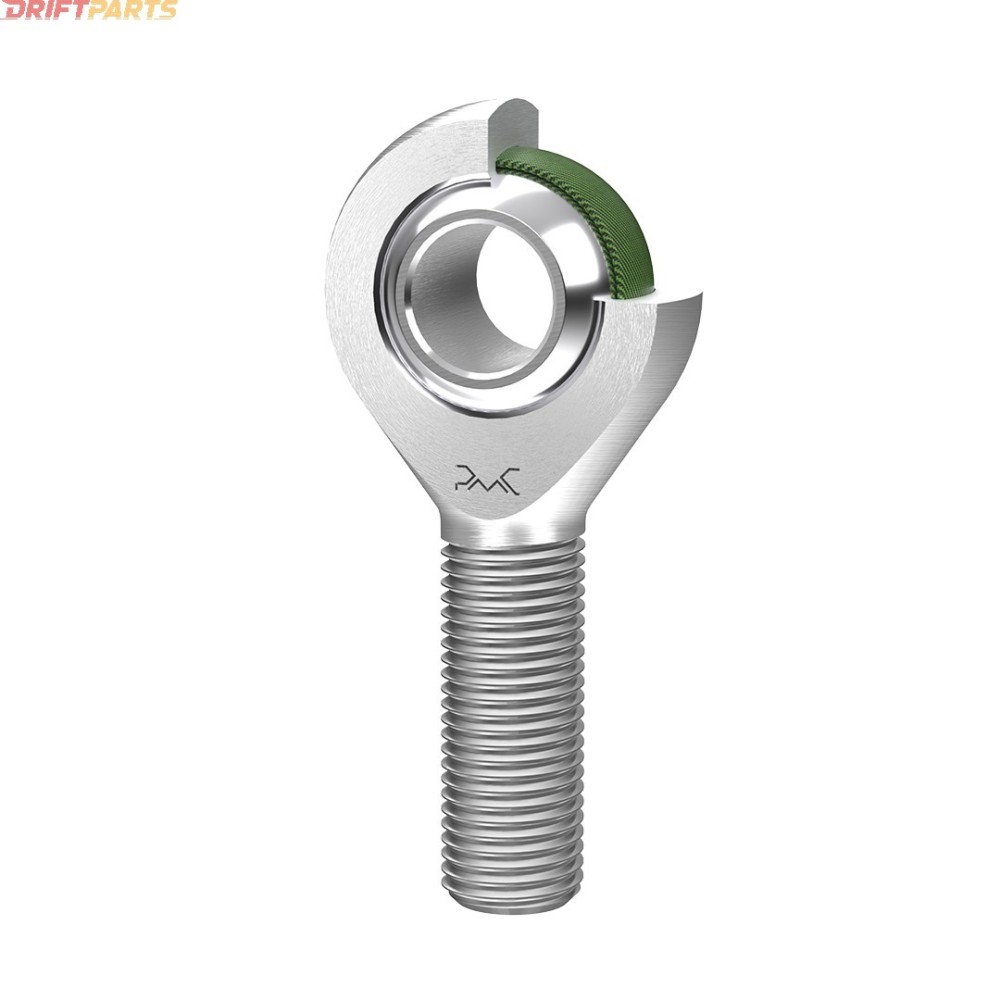

Rod End Uniball M8x1 25 left male

The PMC Motorsport RS-Series Rod End / Uniball End is a precision-engineered mechanical component specifically designed for applications requiring accurate and smooth load transfer, such as in steering, suspension, and joint systems. This rod end features a male left external thread with dimensions of M8x1.25. It is maintenance-free and corrosion-resistant, operating without the need for lubrication, thereby minimizing maintenance requirements and associated costs. The component is capable of enduring high load conditions and is suitable for use in harsh weather, ensuring longevity.

Constructed with a housing made from heat-treated steel (25CrMo4 - 4130 - 1.7218) and a forged, galvanized hard chrome coating, the rod end is robust and durable. The bearing bushing is manufactured by injection molding using a combination of nylon and PTFE, while the ball is made from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), also hardened and coated with hard chrome. PTFE provides low friction, high resistance to temperature variations (operational range from -50°C to +150°C), chemical resilience, and excellent electrical insulation properties.

This component is suitable for deployment across various industries, including hydraulics and pneumatics, automotive systems (particularly in suspension and steering applications), agricultural machinery, and construction equipment.

Specifications:

• External diameter of the rod head: 24 mm / 0.95"
• Width of the inner ring: 12 mm / 0.47"
• Width of the outer ring: 9 mm / 0.35"
• Overall length: 42 mm / 1.65"
• Thread length: 25 mm / 0.98"
• Maximum static and dynamic load capacity: 21.5 kN / 4833.39 lbs
• Weight: 37g / 0.08 lbs
• Angle of deflection: 26°

Brand: PMC Bearings

Symbol: PMC-M8x1.25L (M)

Producer code: 5903707415731

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
