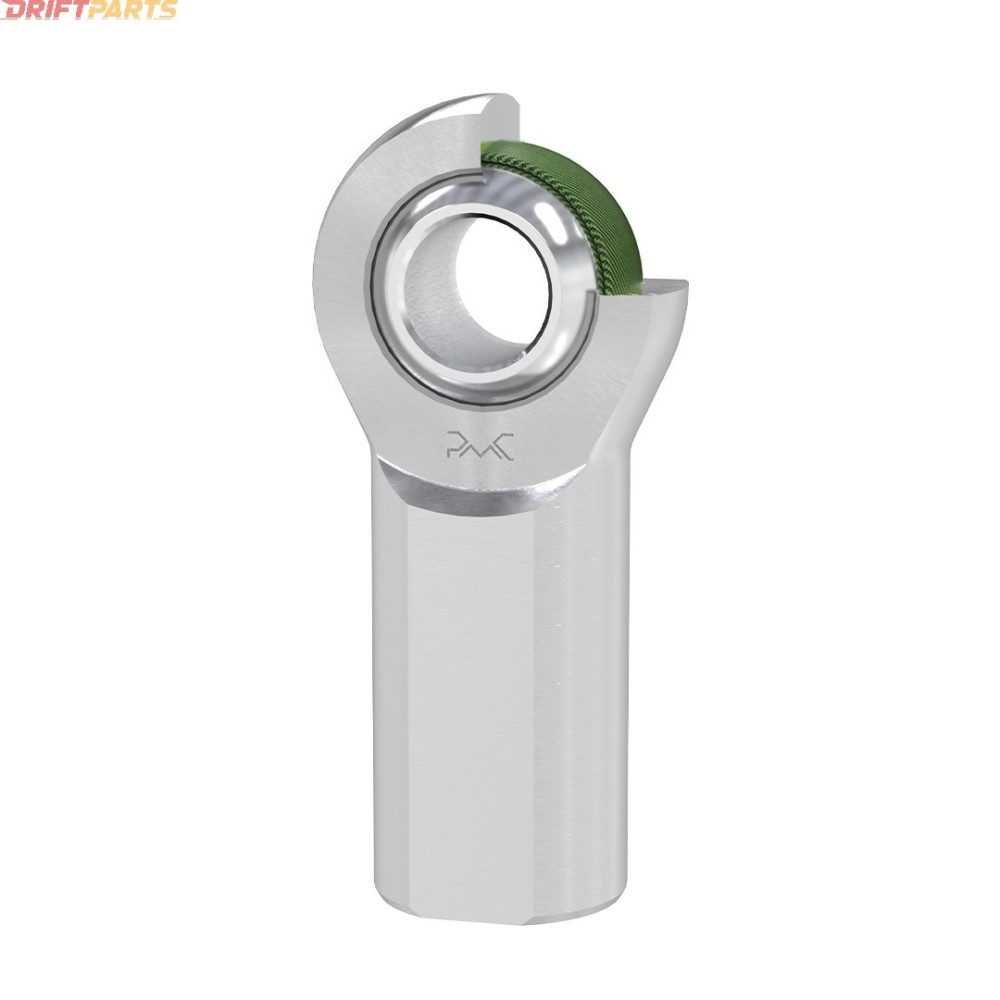

PMC Motorsport RS-Series Rod End / Uniball End - Left External Thread (Female) - M20x1.5

This PMC Motorsport rod end is a specialized component engineered for applications requiring precise and smooth load transfer, such as steering, suspension, and joint systems. It facilitates the transmission of force in multiple directions while allowing rotational and angular movement. Comprising a housing (sleeve) and a spherical joint, it ensures free movement across various planes.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots, minimizing maintenance requirements.
• Corrosion-Protected: Designed to withstand harsh weather conditions.
• High Load Capacity: Suitable for transmitting substantial directional loads.
• Long Lifespan: Maintains durability in challenging operational environments.
• Lubricant-Free Operation.

Material Specifications:

• Housing: Constructed from steel, utilizing heat-treated 25CrMo4 - 4130 - 1.7218, forged, with a galvanized coating (hard chrome).
• Bearing Bushing: Manufactured by injection molding from Nylon with PTFE.
• Ball: Composed of bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened with a galvanized coating (hard chrome).

PTFE Properties:

• Low Friction: Facilitates smooth operation without the need for lubrication.
• High-Temperature Resistance: Functional in a range from -50°C to +150°C.
• Chemical Resistance: Resistant to nearly all chemicals, appropriate for aggressive environments.
• Electrical Insulation: Provides excellent protection against voltage surges.

Applications:

• Hydraulics and Pneumatics: Ideal for connections in hydraulic and pneumatic cylinders.
• Automotive Industry: Suitable for integration into suspension and steering systems.
• Agricultural Machinery: Appropriate for joint applications in agricultural equipment.
• Construction Machinery: Applicable for joints in construction machinery.

Technical Specifications:

• Thread: M20x1.5, Left Internal
• External Diameter of the Rod Head: 50 mm / 1.97"
• Width of the Inner Ring: 25 mm / 0.99"
• Width of the Outer Ring: 18 mm / 0.71"
• Length: 77 mm / 3.03"
• Thread Length: 30 mm / 1.18"
• Maximum Static Load: 102.9 kN / 23132.84 lbs
• Maximum Dynamic Load: 102.9 kN / 23132.84 lbs
• Weight: 481g / 1.06 lbs
• Angle of Deviation: 26°

Brand: PMC

Symbol: PMC-M20x1.5L (F)

Producer Code: 5903707415885

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
