Rod End Uniball M8x1 25 right male

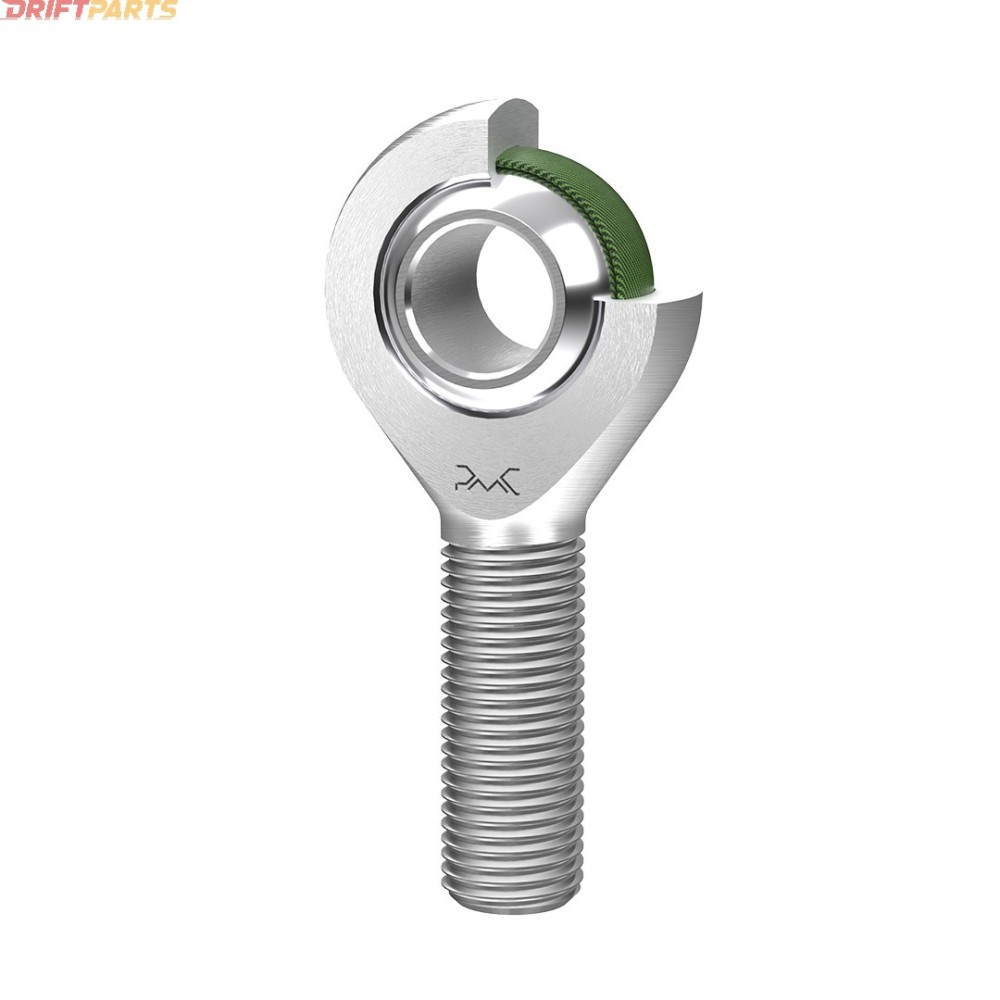

The PMC Motorsport RS-Series Rod End / Uniball End with a Right External Thread (Male) in M8x1.25 is a specialized mechanical component engineered for efficient force transmission across multiple directions while accommodating rotational and angular movement. Essential in systems such as steering, suspension, and joint mechanisms, this rod end facilitates precise and smooth load transfer. The assembly comprises a housing (sleeve) and a spherical joint, allowing free movement across multiple planes.

Key Features:

• Maintenance-Free Uniball: Operates without the need for rubber boots or lubrication, minimizing maintenance requirements and associated costs.
• High Load Capacity: Capable of handling substantial directional loads.
• Corrosion Resistance: Suitable for harsh environmental conditions.
• Long Lifespan: Designed for durability in demanding operational settings.

Material Specifications:

• PTFE (Polytetrafluoroethylene): Offers low friction, resistance to high temperatures (-50°C to +150°C), chemical resistance, and excellent electrical insulation properties.
• Housing: Constructed from heat-treated steel (25CrMo4 - 4130 - 1.7218), forged, and coated with a galvanized finish (hard chrome).
• Bearing Bushing: Manufactured via injection molding using Nylon with PTFE.
• Ball: Composed of bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened, and coated with a galvanized finish (hard chrome).

Applications:

• Hydraulics and Pneumatics: Utilized in connections for hydraulic and pneumatic cylinders.
• Automotive Industry: Applied in suspension and steering systems.
• Agricultural Machinery: Suitable for joints in agricultural machinery.
• Construction Machinery: Employed in joints for construction equipment.

Technical Specifications:

• Thread: M8x1.25, Male Right
• External Diameter of Rod Head: 24mm / 0.95"
• Width of Inner Ring: 12mm / 0.47"
• Width of Outer Ring: 9mm / 0.35"
• Length: 42mm / 1.65"
• Thread Length: 25mm / 0.98"
• Maximum Static and Dynamic Load: 21.5 kN / 4833.39 lbs
• Weight: 37g / 0.08 lbs
• Maximum Angle of Deflection: 26°

Brand: PMC Bearings

Symbol: PMC-M8x1.25P (M)

Producer Code: 5903707415847

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
