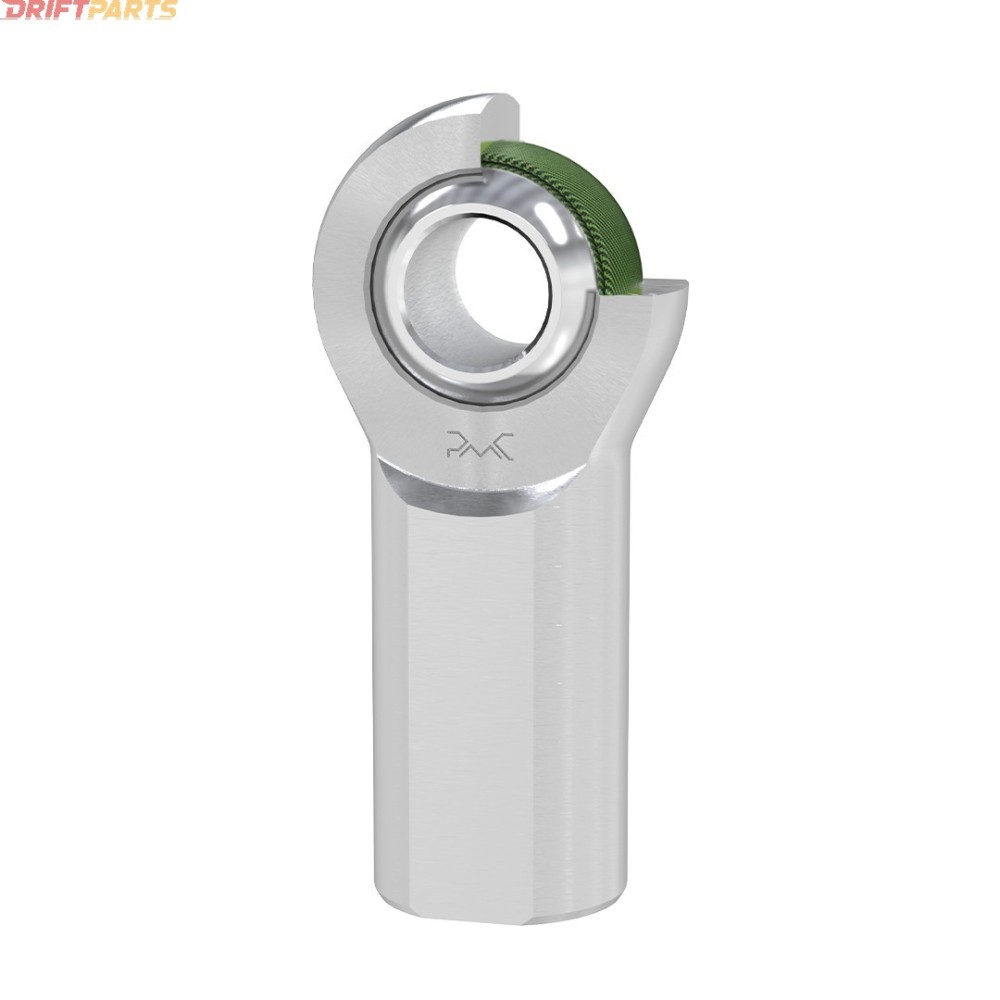

PMC Motorsport RS-Series Rod End / Uniball End - Right External Thread (Female) - M14x1.5

The PMC Motorsport RS-Series Rod End is a specialized mechanical component engineered for the efficient transmission of force across multiple directions, while facilitating both rotational and angular movement. This component is crucial in applications necessitating precise and seamless load transfer, particularly within steering, suspension, and joint systems. The rod end comprises a housing sleeve and a spherical joint, allowing for unrestricted movement across various planes.

Key Features:

• Maintenance-Free Uniball: Engineered with corrosion protection, eliminating the need for rubber boots.
• Lubricant-Free Operation: Designed to minimize maintenance requirements and associated costs.
• High Load Capacity: Capable of handling substantial directional loads.
• Corrosion Resistance: Optimized for performance in adverse weather conditions.
• Long Lifespan: Durable under challenging operational environments.

Material Specifications:

• PTFE (Polytetrafluoroethylene): Offers low friction, withstands temperatures from -50°C to +150°C, resists chemicals, and provides excellent electrical insulation.
• Housing: Constructed from heat-treated steel (25CrMo4 - 4130 - 1.7218), featuring a galvanized coating for enhanced durability.
• Bearing Bushing: Manufactured from injection-molded Nylon with integrated PTFE.
• Ball: Made from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened and coated with hard chrome for increased strength.

Applications:

• Hydraulics and Pneumatics: Serves as connections for hydraulic and pneumatic cylinders.
• Automotive Industry: Integral to suspension and steering systems.
• Agricultural Machinery: Applicable in joints for agricultural machines.
• Construction Machinery: Utilized in joints for construction equipment.

Technical Specifications:

• Thread: M14x1.5, Right Internal
• External Diameter of Rod Head: 36 mm / 1.42"
• Width of Inner Ring: 19 mm / 0.75"
• Width of Outer Ring: 13.5 mm / 0.53"
• Length: 57 mm / 2.24"
• Thread Length: 21 mm / 0.83"
• Angular Displacement: 30°
• Maximum Static Load: 62.7 kN / 14095.5 lbs
• Maximum Dynamic Load: 55.6 kN / 12488.1 lbs
• Weight: 192g / 0.42 lbs

Brand: PMC Bearings

Symbol: PMC-M14x1.5P (F)

Producer Code: 5903707415977

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
