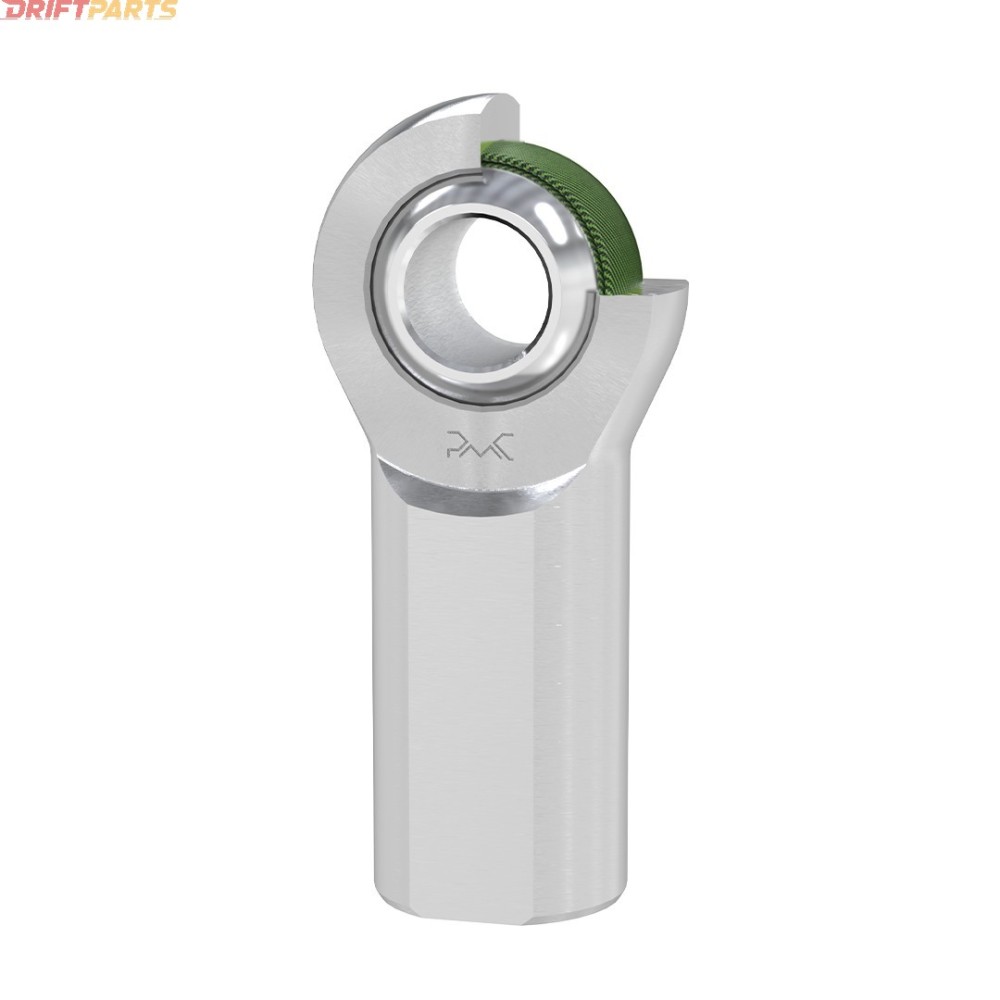

PMC Motorsport RS-Series Rod End - Uniball M10x1.5 - Female Right Thread

The PMC Motorsport RS-Series Rod End is a high-precision mechanical component engineered for efficient force transfer across multiple directions, while accommodating rotational and articulating movements. It is integral to systems necessitating accurate and smooth load transitions, including control systems, suspension frameworks, and various joint applications. The rod end features a robust body (housing) and a spherical joint, facilitating unrestricted movement in several planes.

Key Features:

• Maintenance-free operation minimizes upkeep and related expenses.
• Designed with high load capacity, suitable for significant constant directional forces.
• Corrosion-resistant, ensuring reliability in adverse weather conditions.
• Engineered for long service life, maintaining durability under severe operational environments.

Material Specifications:

• Body: Forged heat-treatable steel, 25CrMo4 - 4130 - 1.7218, with a hard chrome-plated surface.
• Bearing Liner (Race): Constructed through injection molding, composed of Nylon with Teflon PTFE.
• Ball: Bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened and hard chrome plated.

Technical Specifications:

• Thread: M10x1.5, Right Internal
• External Diameter (D) of Rod Head: 28 mm / 1.10"
• Width (W) of Inner Ring: 14 mm / 0.55"
• Width (T) of Outer Ring: 10.5 mm / 0.41"
• Length (L): 43 mm / 1.69"
• Thread Length (GM): 15 mm / 0.59"
• Angle of Deflection: 24°
• Maximum Static Load: 38.3 kN / 8609.91 lbs
• Maximum Dynamic Load: 30.9 kN / 6954.53 lbs
• Weight: 91g / 0.201 lbs

Applications:

• Hydraulics and Pneumatics: Suitable for connections in hydraulic and pneumatic cylinders.
• Automotive Industry: Applicable in suspension and steering systems.
• Agricultural Machinery: Utilized in various joint mechanisms.
• Construction Machinery: Relevant for joint applications in construction equipment.

The rod end incorporates a PTFE liner, providing low friction, high-temperature resistance, chemical resistance, and superior electrical insulation. It is ideally suited for applications demanding smooth, lubrication-free operations in aggressive environments.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
