Rod End Uniball M22x1 5 left male

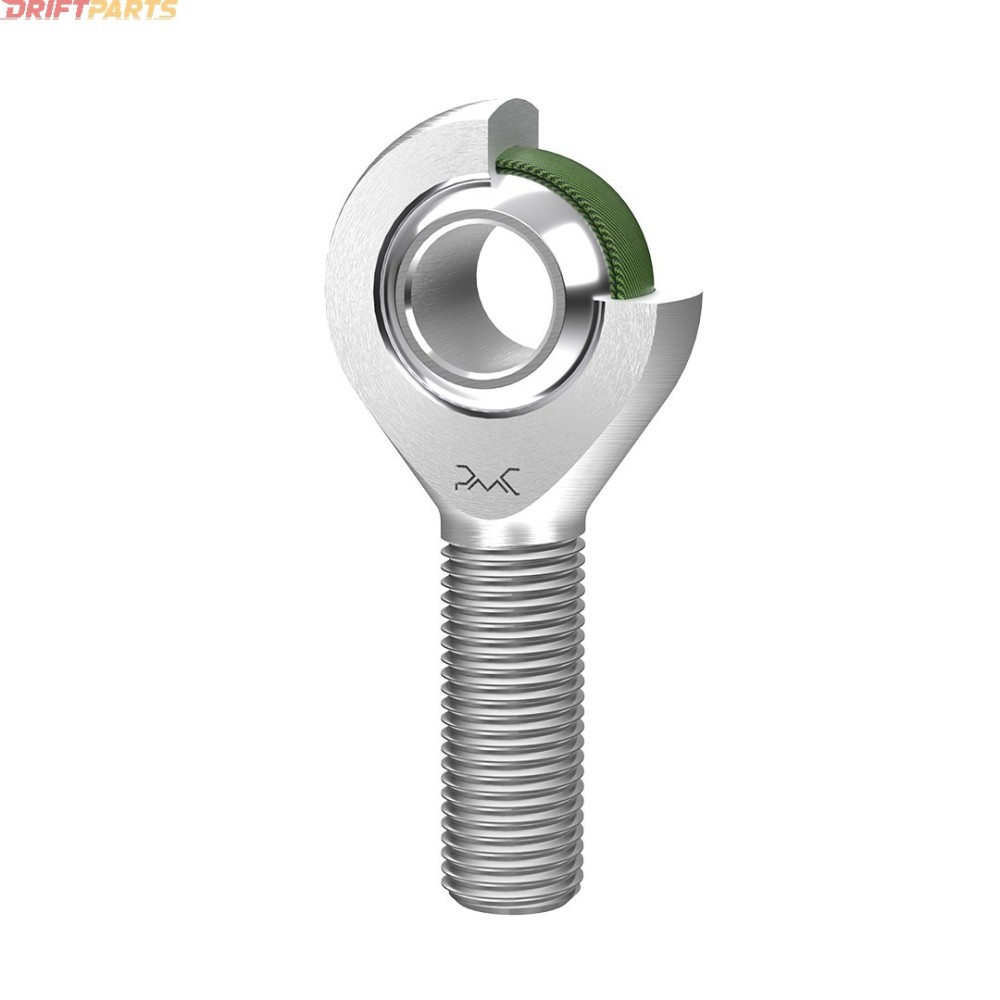

The PMC Motorsport RS-Series Rod End / Uniball End with a left external male thread (M22x1.5) is a precision-engineered mechanical component optimized for applications necessitating accurate and smooth load transfer, such as in steering, suspension, and joint systems.

This rod end is characterized by a maintenance-free, corrosion-protected design, eliminating the need for rubber boots and enabling lubricant-free operation, thereby minimizing maintenance requirements and associated costs. It is adept at handling substantial directional loads and offers resilience against severe weather conditions, ensuring durability in demanding environments.

Constructed with PTFE (Polytetrafluoroethylene), the rod end provides low friction, high-temperature resistance (-50°C to +150°C), chemical resistance, and superior electrical insulation. PTFE fabric bearings are extensively applied in hydraulic and pneumatic systems, automotive suspension and steering, as well as agricultural and construction machinery joints.

The housing is fabricated from heat-treated steel (25CrMo4 - 4130 - 1.7218) and features a galvanized coating (hard chrome). The bearing bushing is crafted through injection molding with Nylon infused with PTFE, while the ball is constructed from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), and is hardened with a galvanized coating (hard chrome).

Specifications:

• Brand: PMC bearings
• Symbol: PMC-M22x1.5L (M)
• Producer code: 5903707415632
• Type: PMC Bearing RS Performance - Series
• Thread: M22x1.5, Male left
• External diameter of the rod head: 52.5 mm / 2.07"
• Width of the inner ring: 28 mm / 1.10"
• Width of the outer ring: 20 mm / 0.79"
• Length: 84 mm / 3.31"
• Thread length: 48 mm / 1.89"
• Maximum static and dynamic load: 117.2 kN / 26347.6 lbs
• Weight: 436g / 0.96 lbs
• Angular displacement: 28°

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
