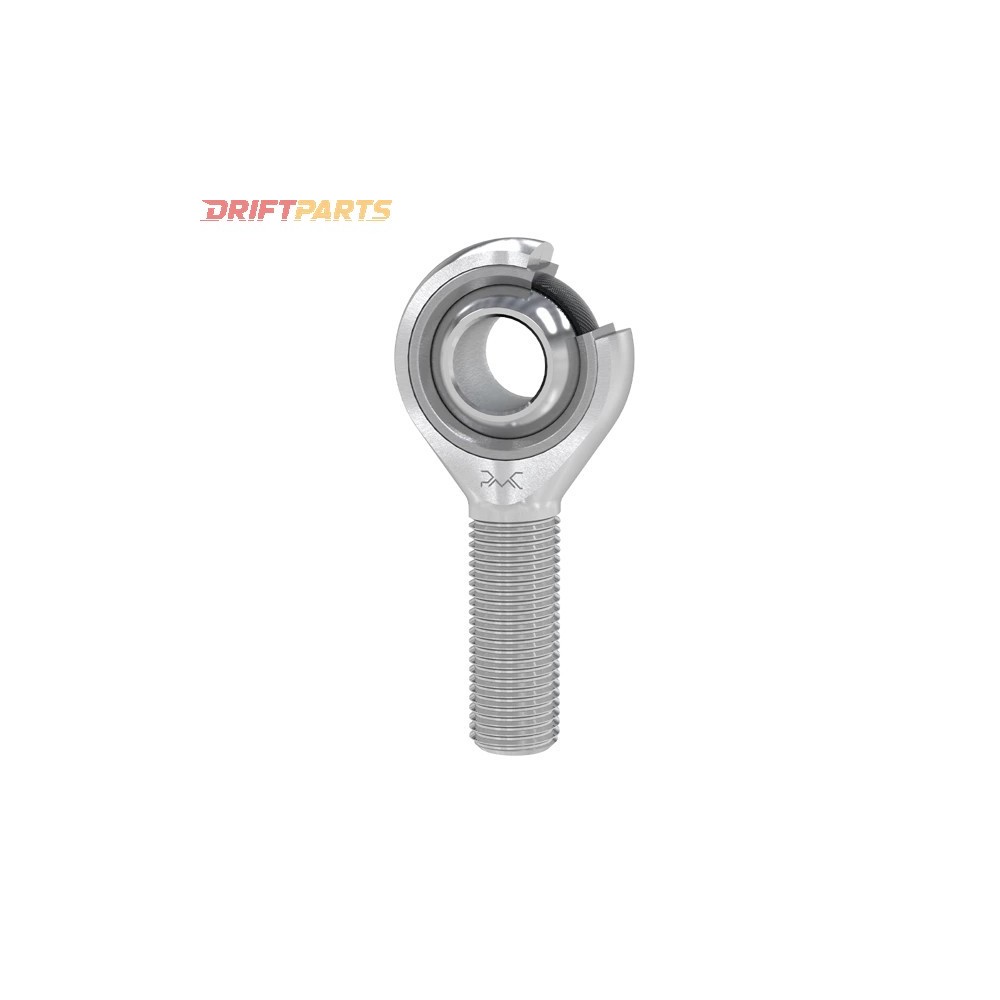

PMC Motorsport RC-Series Rod End / Uniball End - Right External Thread (Male) - M10x1.5

This precision-engineered rod end is designed for systems demanding accurate and smooth load transfer, including steering, suspension, and joint applications. It features a male right external thread with an M10x1.5 thread size, comprising a housing and a spherical joint to allow multi-directional movement.

Key Features:

• Maintenance-Free Uniball: Engineered without rubber boots and protected against corrosion.
• Lubricant-Free Operation: Minimizes maintenance requirements and associated costs.
• High Load Capacity: Capable of transmitting substantial directional loads.
• Corrosion Resistance: Suitable for operation in harsh environmental conditions.
• Long Lifespan: Reliable performance in challenging operational settings.

Materials and Specifications:

• PTFE (Polytetrafluoroethylene): Ensures low friction, high-temperature resistance (-50°C to +150°C), chemical resistance, and superior electrical insulation.
• Housing: Constructed from heat-treated steel (25CrMo4 - 4130 - 1.7218) with a galvanized coating (hard chrome).
• Bearing Bushing: Produced via injection molding using nylon and PTFE.
• Ball: Made from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened and galvanized (hard chrome).

Dimensions:

• D (External diameter of the rod head): 27 mm / 1.06"
• W (Width of the inner ring): 14 mm / 0.55"
• T (Width of the outer ring): 10.5 mm / 0.41"
• L (Length): 48 mm / 1.89"
• GM (Thread length): 29 mm / 1.14"
• Kąt wychylenia (Angle of deviation): 17°
• Maximum Static Load: 25.1 kN / 5642.7 lbs
• Maximum Dynamic Load: 25.1 kN / 5642.7 lbs
• Weight: 55g / 0.12 lbs

Applications:

• Hydraulics and Pneumatics: Ideal for hydraulic and pneumatic cylinder connections.
• Automotive Industry: Suitable for integration into suspension and steering systems.
• Agricultural Machinery: Applicable in agricultural machinery joints.
• Construction Machinery: Appropriate for construction machinery joints.

Brand: PMC Bearings

Symbol: RC-M10x1.5P (M)

Producer Code: 5903707416905

Type: PMC Bearing RC Sport - Series

Thread: M10x1.5, Male Right

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
