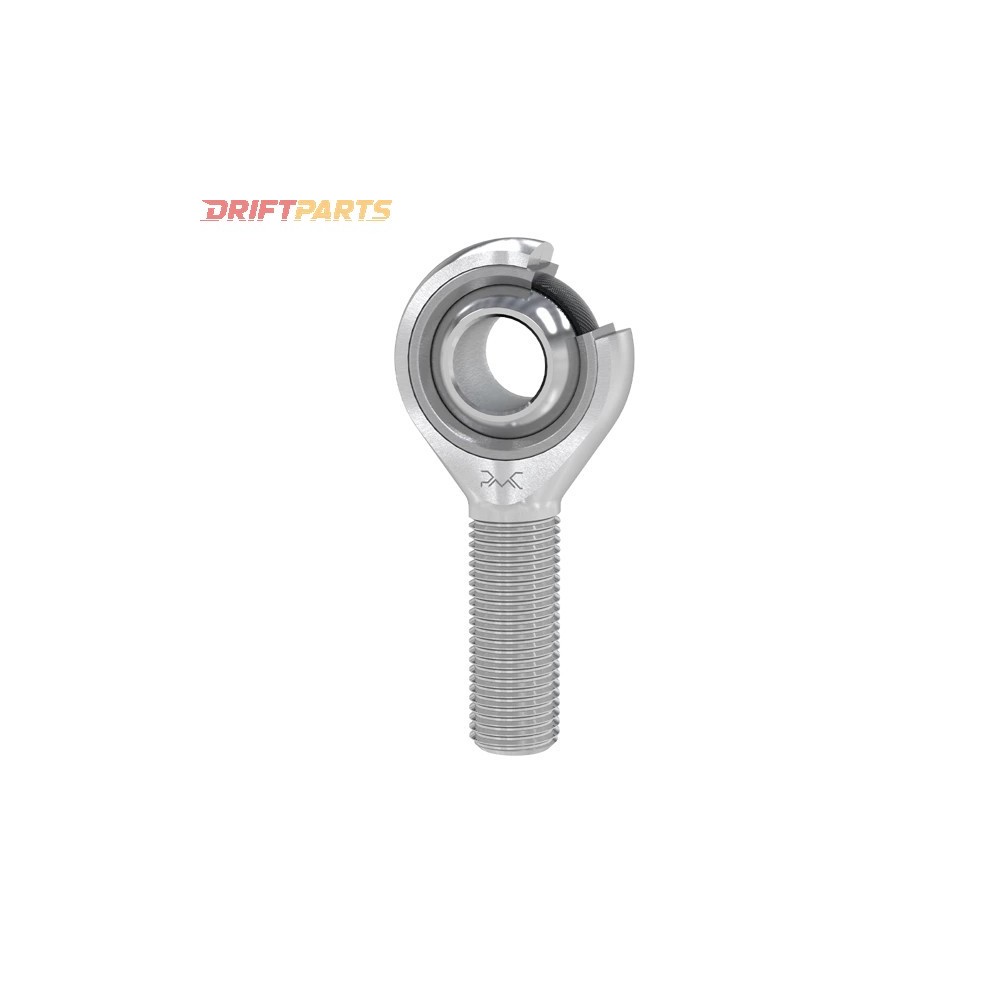

Rod End Uniball M20x1 5 right male RC

The PMC Motorsport RC-Series Rod End is engineered for precise load transfer in critical mechanical systems, including steering and suspension assemblies. Featuring a right external thread with a dimension of M20x1.5, this component facilitates multi-directional force transmission while allowing rotational and angular movement. It is specifically designed for high load capacity applications, ensuring durability under demanding conditions.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots, reducing maintenance requirements.
• Corrosion Resistance: Engineered for operation in harsh environmental conditions.
• High Load Capacity: Supports large directional loads effectively.
• Long Lifespan: Designed for longevity in rigorous operational environments.
• PTFE Liner: Provides low friction and high-temperature resistance (-50°C to +150°C), along with chemical resistance, suitable for aggressive conditions. Also serves as an electrical insulator.

Materials:

• Housing: Steel, heat-treated (25CrMo4 - 4130 - 1.7218), with a galvanized hard chrome coating.
• Bearing Bushing: Constructed using injection-molded Nylon combined with PTFE.
• Ball: Made from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened and coated with galvanized hard chrome.

Specifications:

• External Diameter of the Rod Head: 46 mm / 1.81 inches
• Width of the Inner Ring: 25 mm / 0.99 inches
• Width of the Outer Ring: 18 mm / 0.71 inches
• Length: 78 mm / 3.07 inches
• Thread Length: 47 mm / 1.85 inches
• Maximum Static and Dynamic Load: 74.8 kN / 16815.7 lbs
• Weight: 350g / 0.77 lbs
• Angular Displacement: 20°

Applications:

• Hydraulics and Pneumatics: Suitable for hydraulic and pneumatic cylinder connections.
• Automotive Industry: Ideal for use in suspension and steering systems.
• Agricultural Machinery: Compatible with joint applications in agricultural machines.
• Construction Machinery: Functional in joints for construction equipment.

Brand: PMC Bearings

Symbol: RC-M20x1.5P (M)

Producer Code: 5903707416929

Type: PMC Bearing RC Sport - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
