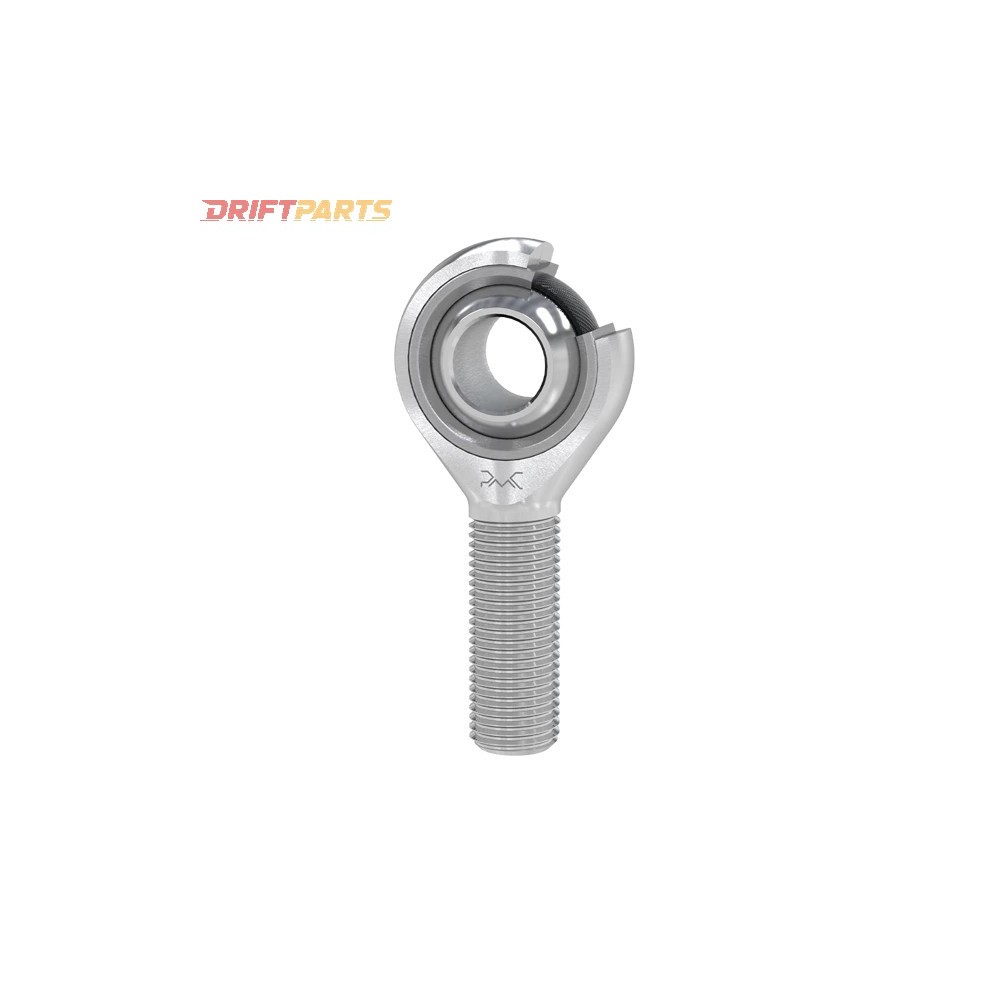

PMC Motorsport RC-Series Rod End / Uniball End - Right External Thread (Male) - M16x2.0

This PMC Motorsport rod end is engineered for precision applications in steering, suspension, and joint systems, ensuring smooth load transfer with its spherical joint that facilitates multidirectional force transmission and rotational and angular movement.

Key Features:

• Thread Type: Male Right, M16x2.0
• Maintenance-Free: Operates without rubber boots and does not require lubrication, minimizing maintenance demands and costs.
• High Load Capacity: Designed to handle substantial directional loads efficiently.
• Corrosion Resistance: Constructed to withstand harsh weather conditions.
• Long Lifespan: Built for durability under challenging operational conditions.
• Material:
  • Housing: Steel, 25CrMo4 - 4130 - 1.7218, forged, with a galvanized (hard chrome) coating.
  • Bearing Bushing: Nylon with PTFE.
  • Ball: Bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened, with a galvanized (hard chrome) coating.

Specifications:

• External Diameter of Rod Head: 38 mm / 1.50"
• Width of Inner Ring: 21 mm / 0.83"
• Width of Outer Ring: 22 mm / 0.87"
• Length: 66 mm / 2.60"
• Thread Length: 40 mm / 1.57"
• Angle of Deviation: 23°
• Maximum Static and Dynamic Load: 53.6 kN / 12049.76 lbs
• Weight: 185g / 0.41 lbs

Applications:

• Hydraulics and Pneumatics: Suitable for hydraulic and pneumatic cylinder connections.
• Automotive Industry: Ideal for integration into suspension and steering systems.
• Agricultural Machinery: Applicable for joints in agricultural equipment.
• Construction Machinery: Suitable for joints in construction machinery.

The inclusion of PTFE in the bearing bushing provides low friction, high-temperature resistance, chemical resistance, and excellent electrical insulation properties, making it apt for aggressive environments and applications demanding voltage surge protection.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse. For further inquiries, contact info@driftparts.it.
