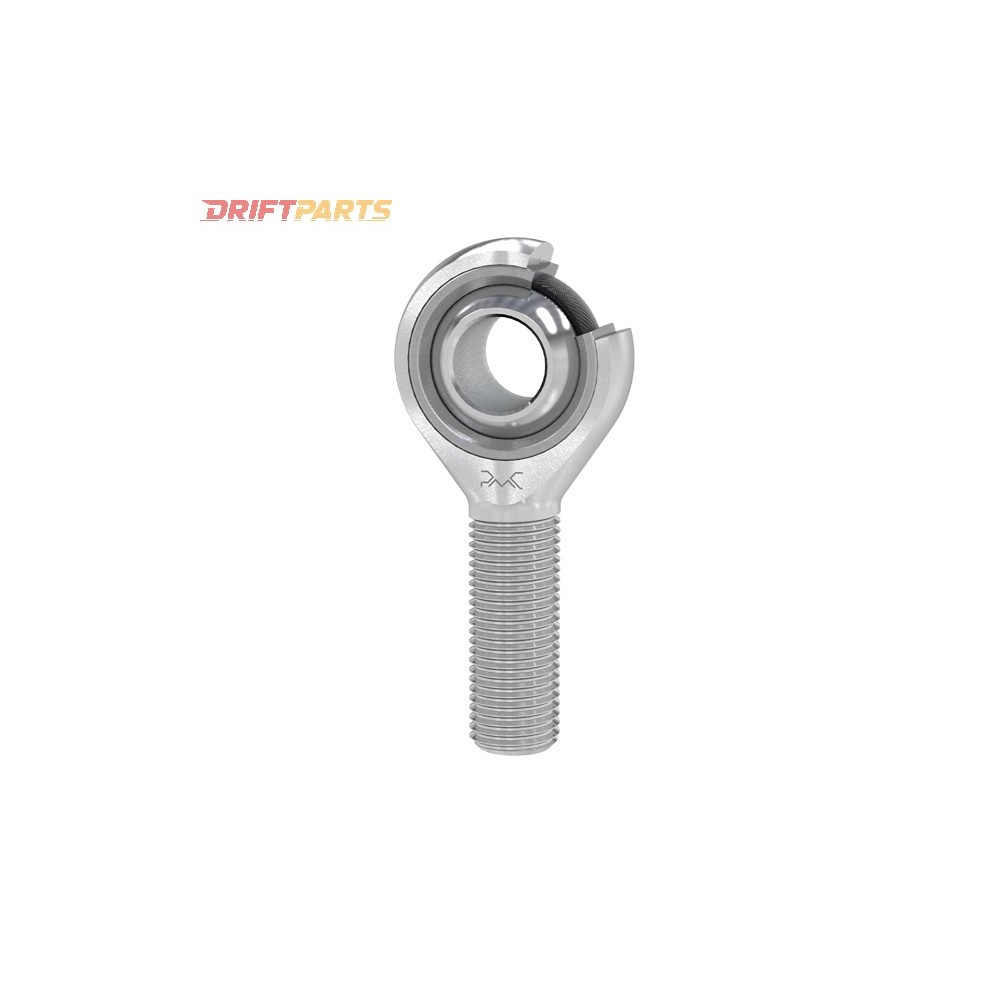

PMC Motorsport RC-Series Rod End / Uniball End - Left External Thread (Male) - M12x1.5

The PMC Motorsport RC-Series Rod End is engineered for precise force transmission in multiple directions while enabling rotational and angular movement, critical for applications in steering, suspension, and joint systems. This component comprises a housing and a spherical joint, facilitating smooth load transfer across various planes.

Features:

• Maintenance-free uniball design with corrosion protection, eliminating the need for rubber boots and reducing maintenance requirements and costs.
• High load capacity suitable for large directional load transmission.
• Corrosion-resistant, designed for durability in harsh environmental conditions, ensuring a long operational lifespan.

Material Specifications:

• PTFE (Polytetrafluoroethylene) offers low friction, resistance to high temperatures (-50°C to +150°C), chemical resistance, and excellent electrical insulation.
• The housing is constructed from heat-treated steel 25CrMo4 - 4130 - 1.7218, forged and coated with galvanized hard chrome.
• Bearing bushing is manufactured through injection molding, consisting of Nylon with PTFE.
• The ball is made from bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened and coated with galvanized hard chrome.

Applications:

• Hydraulics and Pneumatics: Suitable for connections in hydraulic and pneumatic cylinders.
• Automotive Industry: Applicable in suspension and steering systems.
• Agricultural Machinery: Utilized in agricultural machine joints.
• Construction Machinery: Employed in joints within construction equipment.

Technical Specifications:

• Thread: M12x1.5, Male left
• External diameter of the rod head: 32 mm / 1.26"
• Width of the inner ring: 16 mm / 0.63"
• Width of the outer ring: 12 mm / 0.47"
• Length: 54 mm / 2.13"
• Thread length: 33 mm / 1.30"
• Angle of deflection: 17°
• Maximum static load: 33.6 kN / 7553.58 lbs
• Maximum dynamic load: 30.7 kN / 6901.63 lbs
• Weight: 85g / 0.19 lbs

Brand: PMC bearings

Symbol: RC-M12x1.5L (M)

Type: PMC Bearing RC Sport - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
