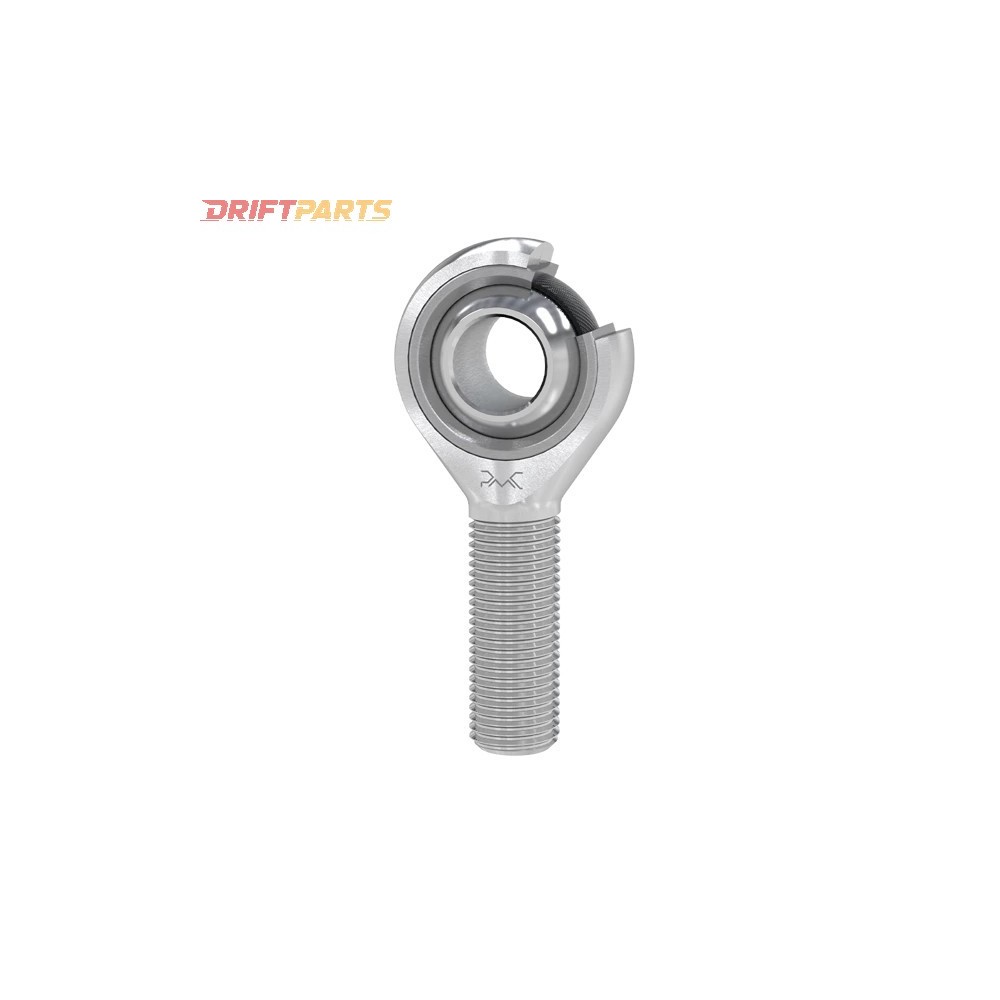

PMC Motorsport RC-Series Rod End / Uniball End - Left External Thread (Male) - M16x1.5

This precision-engineered rod end is designed for applications requiring efficient load transfer, such as steering, suspension, and joint systems. It features a male left external thread sized M16x1.5. The component is maintenance-free and corrosion-resistant, eliminating the need for rubber boots and lubrication, which minimizes maintenance requirements and costs. It is suitable for transmitting significant directional loads and performs reliably in adverse weather conditions due to its durability and corrosion resistance.

Material Composition:

• Housing: Constructed from Steel 25CrMo4 (4130, 1.7218), forged and treated with a hard chrome galvanized coating.
• Bearing Bushing: Manufactured via injection molding using Nylon with PTFE.
• Ball: Composed of Bearing Steel 52100 (100Cr6, 1.3505, SUJ2, EN31), hardened and coated with hard chrome.

PTFE (Polytetrafluoroethylene) is utilized for its low friction, resistance to high temperatures (-50°C to +150°C), chemical inertness, and superior electrical insulation capabilities.

Technical Specifications:

• External diameter of the rod head: 38 mm / 1.50"
• Width of the inner ring: 21 mm / 0.83"
• Width of the outer ring: 22 mm / 0.87"
• Length: 66 mm / 2.60"
• Thread length: 40 mm / 1.57"
• Angle of deviation: 23°
• Maximum static load: 53.6 kN / 12049.76 lbs
• Maximum dynamic load: 53.6 kN / 12049.76 lbs
• Weight: 185g / 0.41 lbs

Applications are extensive, including use in hydraulic and pneumatic connections, automotive suspension and steering systems, and joints in agricultural and construction machinery.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
