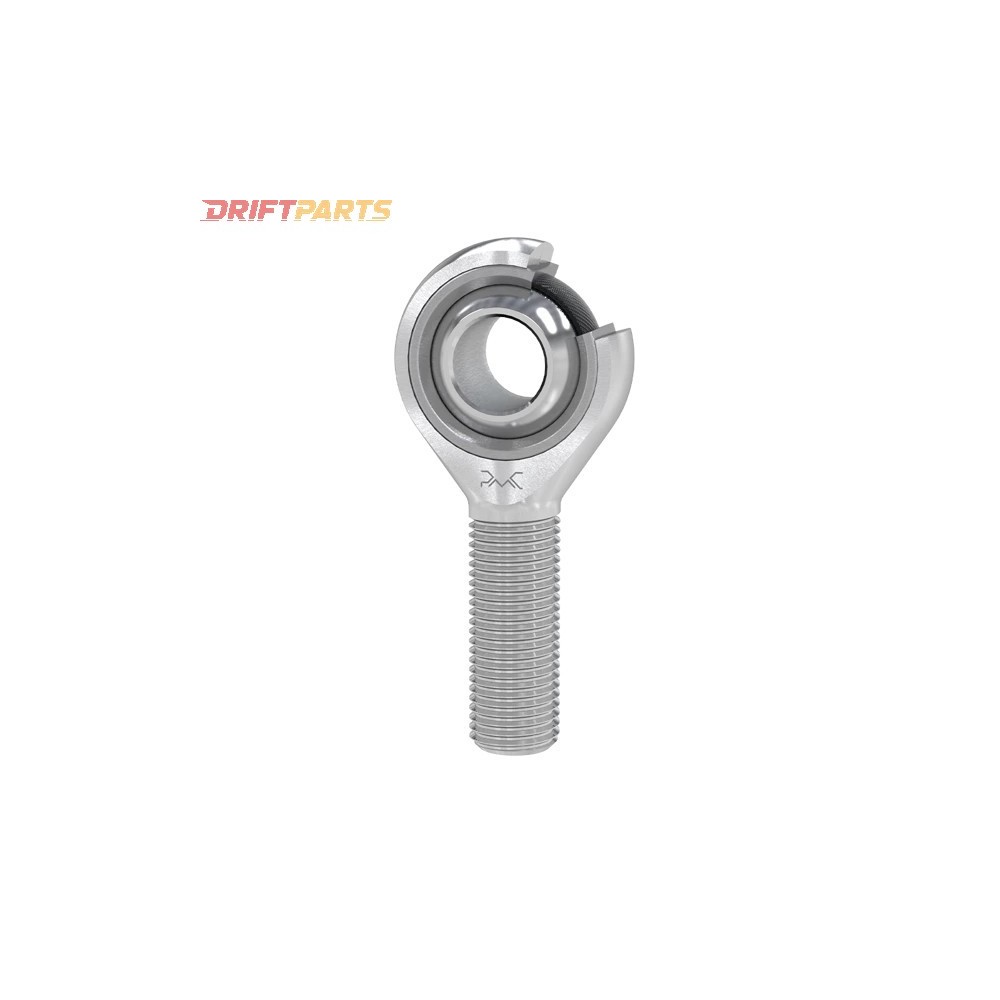

PMC Motorsport RC-Series Rod End / Uniball End - Left External Thread (Male) - M16x2.0

This rod end is engineered as a specialized mechanical component that facilitates force transmission in multiple directions while permitting rotational and angular motion. It is integral to systems necessitating precise and smooth load distribution, such as steering, suspension, and joint assemblies. The component comprises a housing (sleeve) and a spherical joint, enabling multidirectional movement.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots, reducing maintenance requirements and costs.
• Corrosion-Protected: Suitable for deployment in adverse weather conditions.
• High Load Capacity: Optimized for handling substantial directional loads.
• Long Lifespan: Designed for durability in demanding operational settings.

Material Specifications:

• Housing: Constructed from heat-treated steel 25CrMo4 (4130, 1.7218), featuring a galvanized coating (hard chrome).
• Bearing Bushing: Manufactured by injection molding with Nylon infused with PTFE.
• Ball: Composed of bearing steel 52100 (100Cr6, 1.3505, SUJ2, EN31), hardened and coated with a galvanized finish (hard chrome).

PTFE Properties:

• Low Friction: Offers one of the lowest friction coefficients, ideal for applications requiring frictionless operation without lubrication.
• High-Temperature Resistance: Functional across a temperature spectrum from -50°C to +150°C.
• Chemical Resistance: Impervious to nearly all chemicals, suitable for aggressive environments.
• Electrical Insulation: Provides excellent insulation, apt for applications requiring voltage surge protection.

Applications:

• Hydraulics and Pneumatics: Utilized in hydraulic and pneumatic cylinder connections.
• Automotive Industry: Applicable for suspension and steering systems.
• Agricultural Machinery: Deployed in joints of agricultural equipment.
• Construction Machinery: Suitable for use in construction machinery joints.

Technical Specifications:

• Thread: M16x2.0, Male left
• External Diameter of Rod Head: 38 mm (1.50 inches)
• Width of Inner Ring: 21 mm (0.83 inches)
• Width of Outer Ring: 22 mm (0.87 inches)
• Length: 66 mm (2.60 inches)
• Thread Length: 40 mm (1.57 inches)
• Maximum Static Load: 53.6 kN (12049.76 lbs)
• Maximum Dynamic Load: 53.6 kN (12049.76 lbs)
• Weight: 185g (0.41 lbs)
• Angular Displacement: 23°

Brand: PMC Bearings

Symbol: RC-M16x2L (M)

Producer Code: 5903707416899

Type: PMC Bearing RC Sport - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse. For inquiries, please contact info@driftparts.it.
