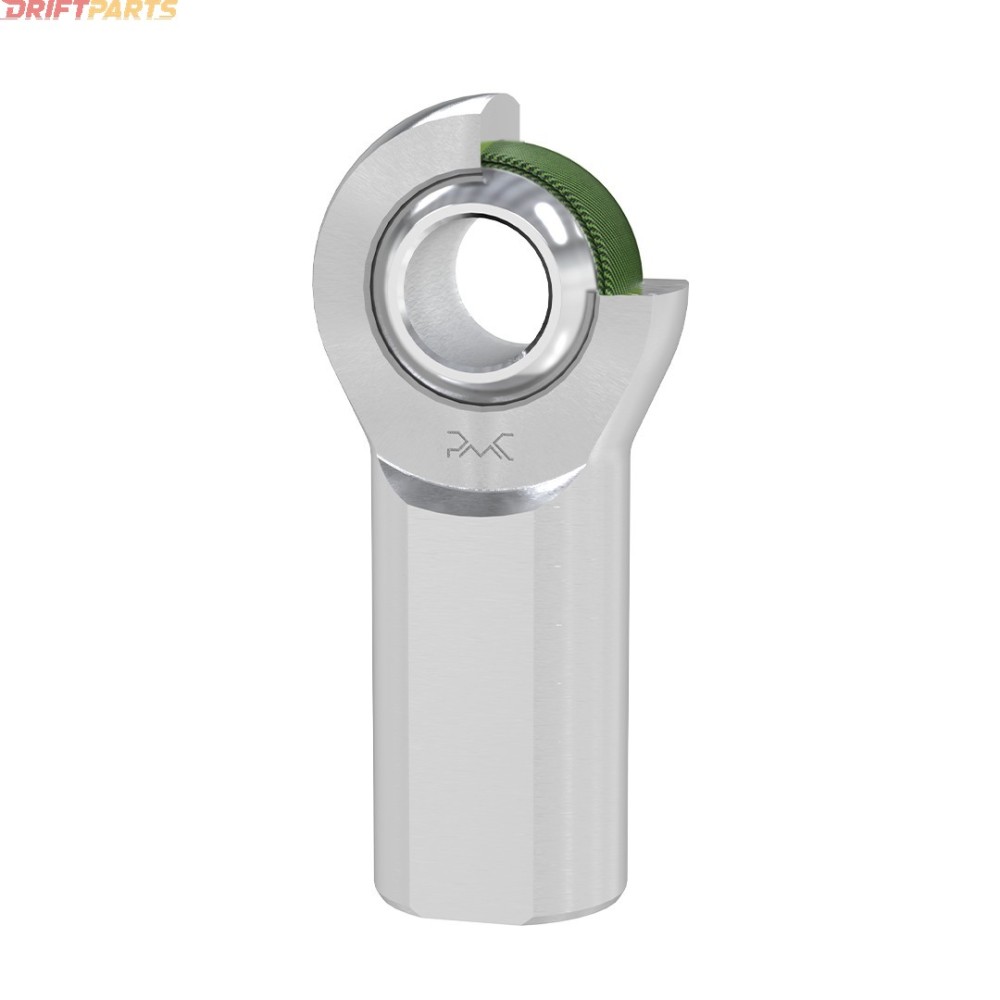

PMC Motorsport RS-Series Rod End / Uniball End - Left External Thread (Female) - M18x1.5

The PMC Motorsport RS-Series Rod End is a precision-engineered mechanical component designed to facilitate force transmission in multiple directions while accommodating rotational and angular movements. It is an integral part of systems requiring accurate and smooth load transfer, including steering, suspension, and joint applications. The rod end features a housing and a spherical joint, enabling unrestricted movement across various planes.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots, minimizing maintenance requirements.
• High Load Capacity: Engineered to handle substantial directional loads effectively.
• Corrosion Resistance: Suitable for use in challenging weather conditions.
• Long Lifespan: Ensures durability under demanding operational circumstances.

Material Specifications:

• Housing: Constructed from heat-treated steel 25CrMo4 (4130, 1.7218), with a forged and galvanized (hard chrome) coating.
• Bearing Bushing: Manufactured through injection molding using Nylon with PTFE.
• Ball: Composed of bearing steel 52100 (100Cr6, 1.3505, SUJ2, EN31), hardened and galvanized (hard chrome) coated.

PTFE Properties:

• Low Friction: Optimal for applications necessitating smooth operation without lubrication.
• High-Temperature Resistance: Functional within a temperature range of -50°C to +150°C.
• Chemical Resistance: Resistant to a wide array of chemicals, suitable for aggressive environments.
• Electrical Insulation: Provides protection against voltage surges.

Applications:

• Hydraulics and Pneumatics: Utilized in connections for hydraulic and pneumatic cylinders.
• Automotive Industry: Integral to suspension and steering systems.
• Agricultural Machinery: Applicable in joints for agricultural machines.
• Construction Machinery: Utilized in joints for construction machinery.

Specifications:

• Thread Type: Left Internal, M18x1.5
• External Diameter of Rod Head: 46mm / 1.81"
• Width of Inner Ring: 23mm / 0.91"
• Width of Outer Ring: 16.5mm / 0.65"
• Length: 71mm / 2.80"
• Thread Length: 27mm / 1.06"
• Angular Displacement: 32°
• Maximum Static Load: 89.7 kN / 20165.36 lbs
• Maximum Dynamic Load: 84.2 kN / 18928.91 lbs
• Weight: 369g / 0.814 lbs

Additional Information:

• Brand: PMC Bearings
• Symbol: PMC-M18x1.5L (F)
• Producer Code: 5903707415892
• Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
