Rod End Uniball M20x1 5 left male RC

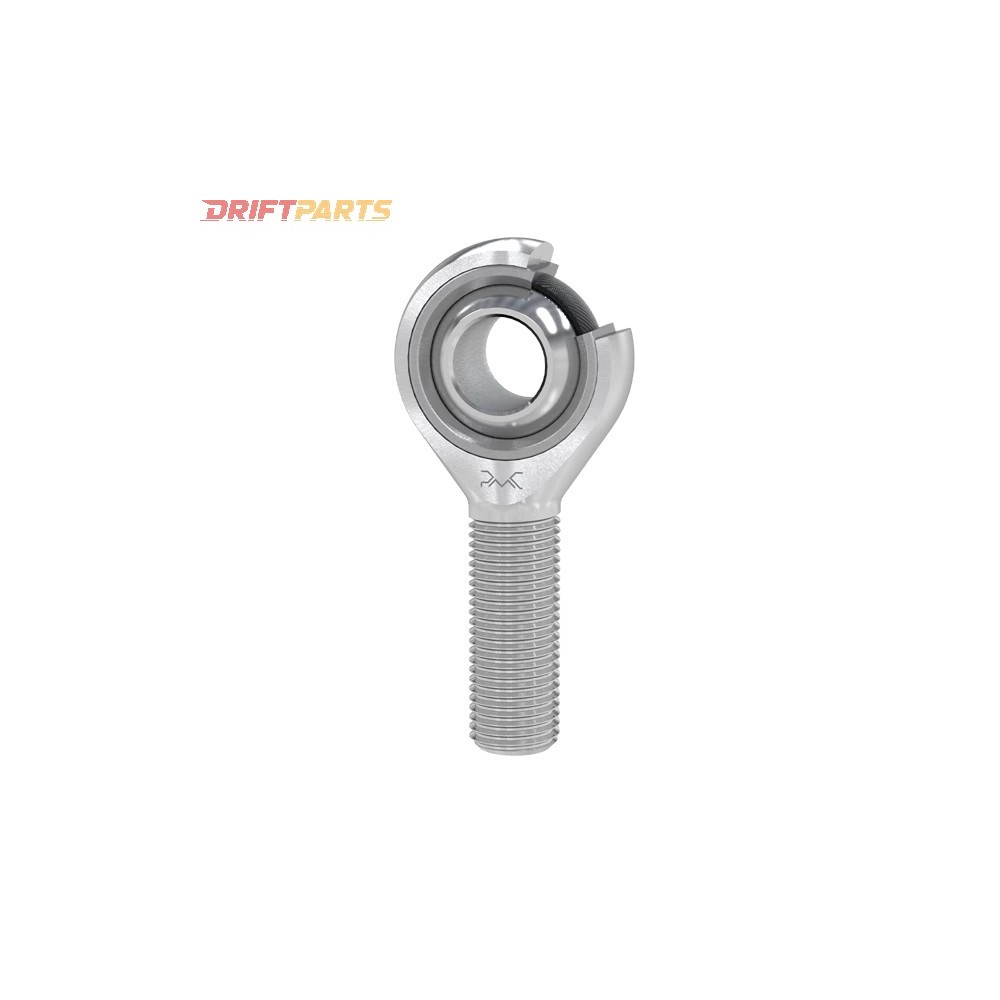

PMC Motorsport RC-Series Rod End / Uniball End - Left External Thread (Male) - M20x1.5

This rod end is designed for precise load transfer in systems such as steering, suspension, and joint assemblies. It features a male left external thread with dimensions of M20x1.5. Engineered to be maintenance-free, it does not require rubber boots, offering lubricant-free operation. The component is corrosion-protected and capable of withstanding harsh weather conditions, while its robust design supports high load capacity for significant directional loads.

The rod end housing is constructed from heat-treated steel (25CrMo4 - 4130 - 1.7218), forged and finished with a hard chrome coating. The bearing bushing is manufactured through injection molding using Nylon with PTFE, and the ball is crafted from hardened bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31) with a galvanized hard chrome coating.

Key Specifications:

• Thread: M20x1.5, Male left
• External diameter of the rod head: 46 mm / 1.81"
• Width of the inner ring: 25 mm / 0.99"
• Width of the outer ring: 18 mm / 0.71"
• Length: 78 mm / 3.07"
• Thread length: 47 mm / 1.85"
• Angle of deflection: 20°
• Maximum static and dynamic load: 74.8 kN / 16815.7 lbs
• Weight: 350g / 0.77lbs

The use of PTFE is integral due to its low friction, high-temperature resistance (-50°C to +150°C), chemical resistance, and excellent electrical insulation properties, making it ideal for applications in hydraulics, pneumatics, automotive (suspension and steering systems), agricultural machinery, and construction machinery.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
