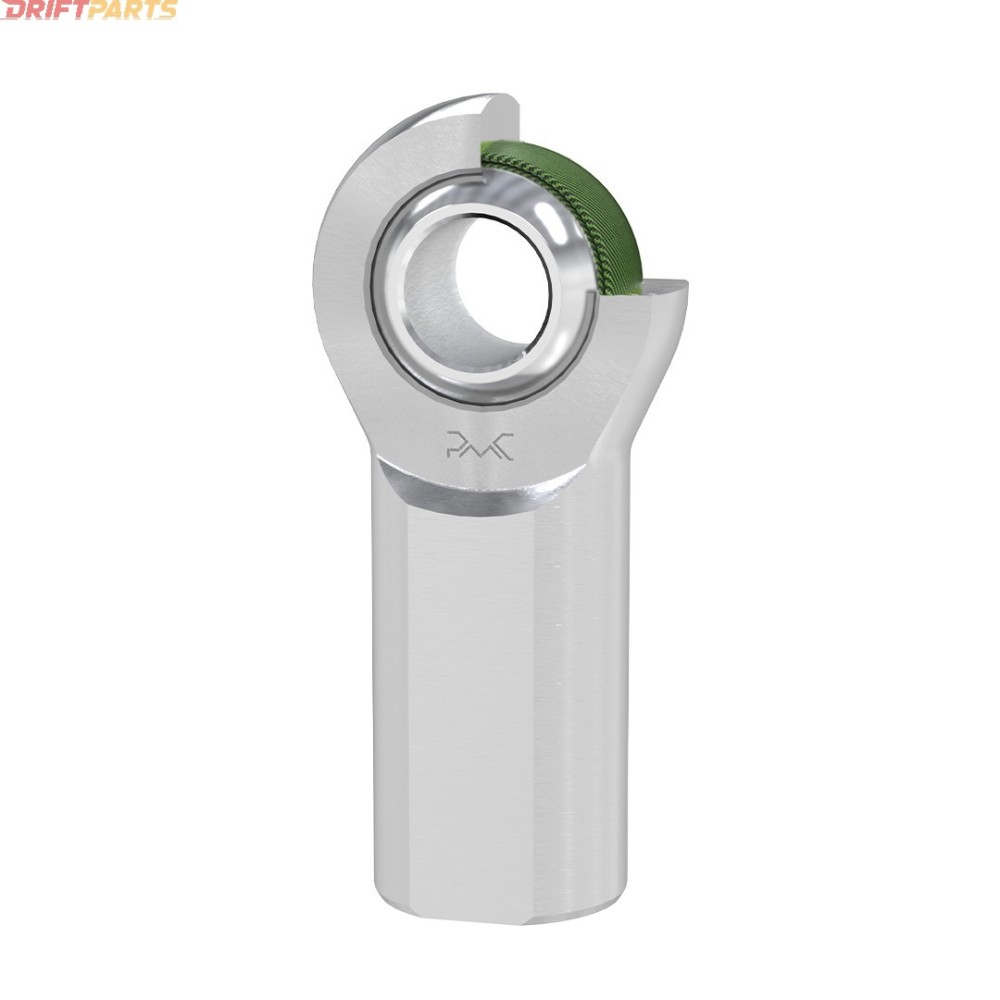

PMC Motorsport RS-Series Rod End - Uniball M12x1.75 - Female Right Thread

The PMC Motorsport RS-Series Rod End is a specialized mechanical component designed for facilitating multidirectional force transfer while permitting rotational and articulating movements. This component is vital in systems demanding precise load transfer, including control systems, suspension systems, and mechanical joints. The rod end comprises a robust body (housing) and a spherical joint, allowing movement across various planes.

Features:

• Maintenance-free design eliminates the need for rubber covers, thereby reducing maintenance requirements and costs.
• High load capacity, making it suitable for transferring substantial directional loads.
• Enhanced corrosion resistance for operation in challenging weather conditions.
• Extended service life, providing durability in harsh environments.

Materials:

• Body: Constructed from heat-treatable steel 25CrMo4 - 4130 - 1.7218, forged and hard chrome plated.
• Bearing Liner (Race): Manufactured via the injection method using Nylon with Teflon PTFE.
• Ball: Made from bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened and hard chrome plated.

PTFE Properties:

• Exhibits low friction, among the lowest of all solid materials.
• Operates efficiently within a temperature range of -50°C to +150°C.
• Demonstrates high resistance to nearly all chemicals.
• Provides excellent electrical insulation capabilities.

Applications:

• Suitable for use in hydraulics and pneumatics as connections in hydraulic and pneumatic cylinders.
• Applicable in the automotive industry for suspensions and steering systems.
• Utilized in agricultural machinery for various joint applications.
• Employed in construction machinery for joint assemblies.

Specifications:

• Thread: M12x1.75, Right Internal
• External Diameter of Rod Head: 32 mm / 1.26"
• Width of Inner Ring: 16 mm / 0.63"
• Width of Outer Ring: 12 mm / 0.47"
• Length: 50 mm / 1.97"
• Thread Length: 18 mm / 0.71"
• Angle of Deflection: 24°
• Maximum Static Load: 46.2 kN / 10386.2 lbs
• Maximum Dynamic Load: 42.2 kN / 9495.9 lbs
• Weight: 137g / 0.302 lbs

Brand: PMC Bearings

Symbol: PMC-M12x1.75P (F)

Producer Code: 5903707415960

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
