Rod End Uniball M12x1 25 left male

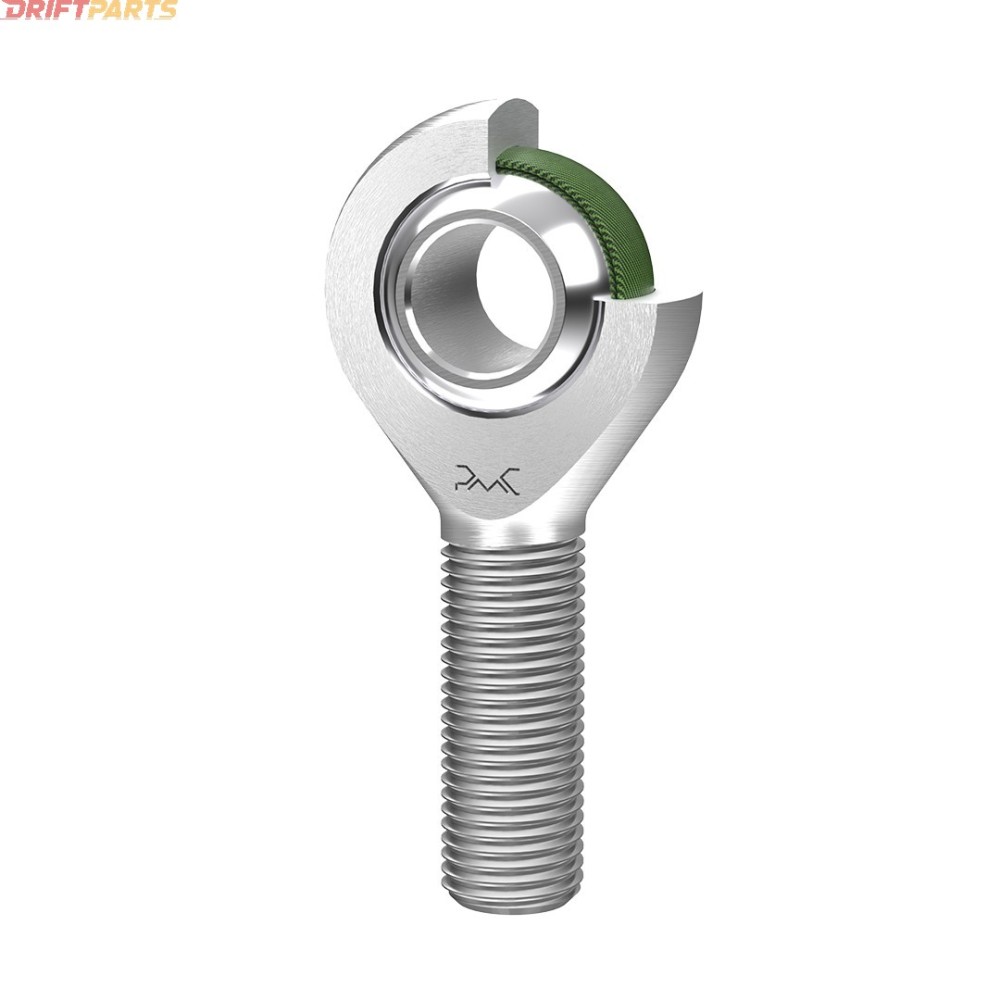

PMC Motorsport RS-Series Rod End / Uniball End - Left External Thread (Male) - M12x1.25

This rod end is a precision-engineered mechanical component designed to facilitate force transmission in multiple directions while accommodating rotational and angular movements. It is indispensable in systems requiring accurate and smooth load transfer, particularly in steering, suspension, and joint systems.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots, thereby reducing maintenance requirements and associated costs.
• High Load Capacity: Capable of handling substantial directional loads effectively.
• Corrosion Resistance: Suitable for operation in adverse weather conditions, ensuring durability in challenging environments.
• Lubricant-Free Operation: Incorporates PTFE (Polytetrafluoroethylene), providing low friction and seamless operation without the need for lubrication. Offers high resistance to temperatures ranging from -50°C to +150°C, as well as chemical resistance and superior electrical insulation.

Applications:

• Hydraulics and Pneumatics: Employed in the connections for hydraulic and pneumatic cylinders.
• Automotive Industry: Utilized within suspension and steering systems.
• Agricultural Machinery: Applied in the joints of agricultural machinery.
• Construction Machinery: Used in the joints of construction equipment.

Material Specifications:

• Housing: Composed of steel, heat-treated material 25CrMo4 - 4130 - 1.7218, forged and finished with a galvanized coating (hard chrome).
• Bearing Bushing: Manufactured through injection molding with Nylon and PTFE.
• Ball: Crafted from bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened with a galvanized coating (hard chrome).

Technical Specifications:

• Thread: M12x1.25, Male left
• External diameter of the rod head: 32 mm / 1.26"
• Width of the inner ring: 16 mm / 0.63"
• Width of the outer ring: 12 mm / 0.47"
• Length: 54 mm / 2.13"
• Thread length: 32 mm / 1.26"
• Angular displacement: 24°
• Maximum static load: 46.2 kN / 10386.2 lbs
• Maximum dynamic load: 42.2 kN / 9495.9 lbs
• Weight: 95g / 0.209 lbs

Brand: PMC bearings

Producer Code: 5903707415700

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
