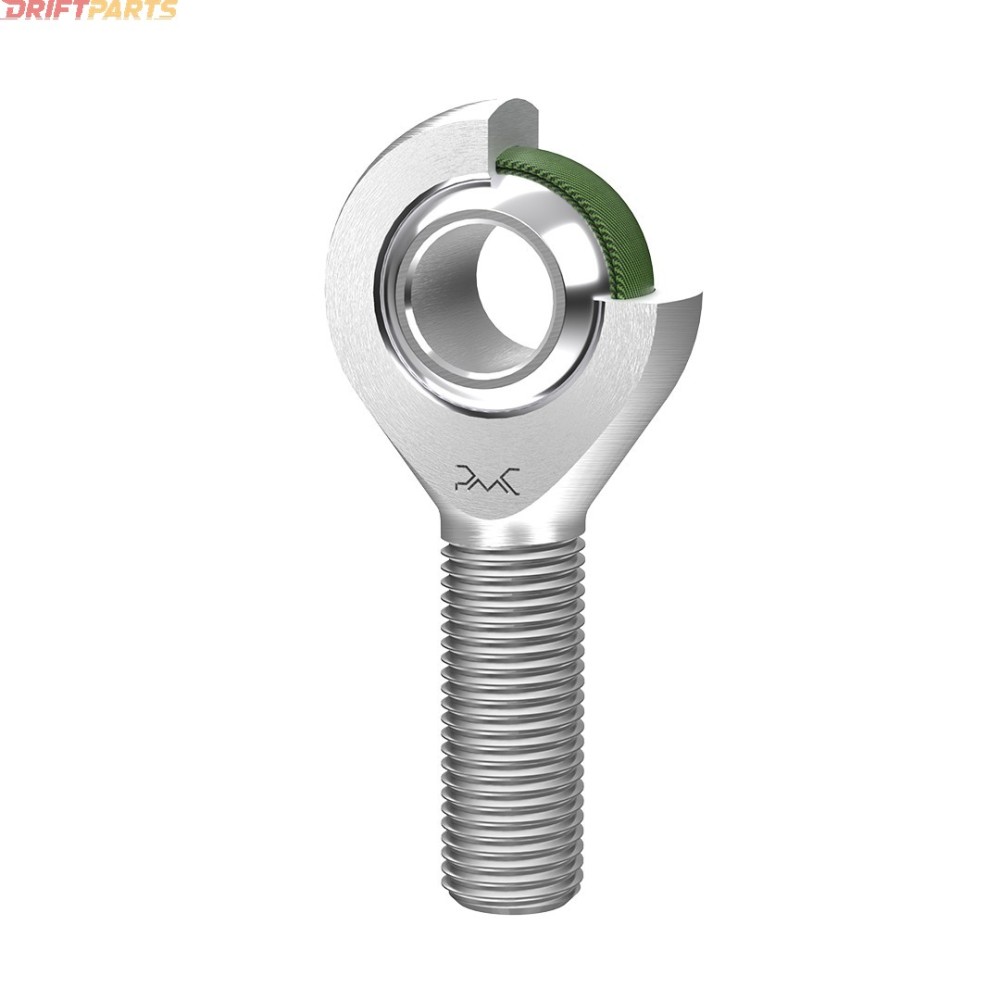

Rod End Uniball M12x1 25 right male

The PMC Motorsport RS-Series Rod End is a high-precision mechanical component engineered for efficient load transfer in steering, suspension, and joint systems. This model features a right external male thread with a specification of M12x1.25, ensuring compatibility with various applications.

Key Features:

• Maintenance-Free Uniball: Built without rubber boots and resistant to corrosion.
• Lubricant-Free Operation: Minimizes the need for routine maintenance and reduces associated costs.
• High Load Capacity: Suitable for transmitting substantial directional loads.
• Corrosion Resistance: Designed for performance in harsh weather conditions.
• Long Lifespan: Ensures durability under demanding operational conditions.

Materials:

• Housing: Constructed from heat-treated steel, 25CrMo4 - 4130 - 1.7218, forged and galvanized with a hard chrome coating.
• Bearing Bushing: Manufactured via injection molding from Nylon with PTFE.
• Ball: Composed of bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened and galvanized with a hard chrome coating.

PTFE Properties:

• Low Friction: Optimal for applications demanding smooth, lubrication-free operation.
• High-Temperature Resistance: Functionality across a temperature range from -50°C to +150°C.
• Chemical Resistance: Withstands exposure to most chemicals, suitable for aggressive environments.
• Electrical Insulation: Provides protection against voltage surges.

Applications:

• Hydraulics and Pneumatics: Suitable for connections in hydraulic and pneumatic cylinders.
• Automotive Industry: Applicable in suspension and steering systems.
• Agricultural Machinery: Ideal for joints in agricultural equipment.
• Construction Machinery: Suitable for joint applications in construction machinery.

Specifications:

• External Diameter of the Rod Head: 32 mm / 1.26"
• Width of the Inner Ring: 16 mm / 0.63"
• Width of the Outer Ring: 12 mm / 0.47"
• Length: 54 mm / 2.13"
• Thread Length: 32 mm / 1.26"
• Angle of Deviation: 24°
• Maximum Static Load: 46.2 kN / 10386.2 lbs
• Maximum Dynamic Load: 42.2 kN / 9495.9 lbs
• Weight: 95g / 0.209 lbs

Brand Information:

• Brand: PMC Bearings
• Symbol: PMC-M12x1.25P (M)
• Producer Code: 5903707415823
• Type: PMC Bearing RS Performance - Series
• Thread: M12x1.25
• Type of Thread: Male Right

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
