Rod End Uniball M14x1 5 right male

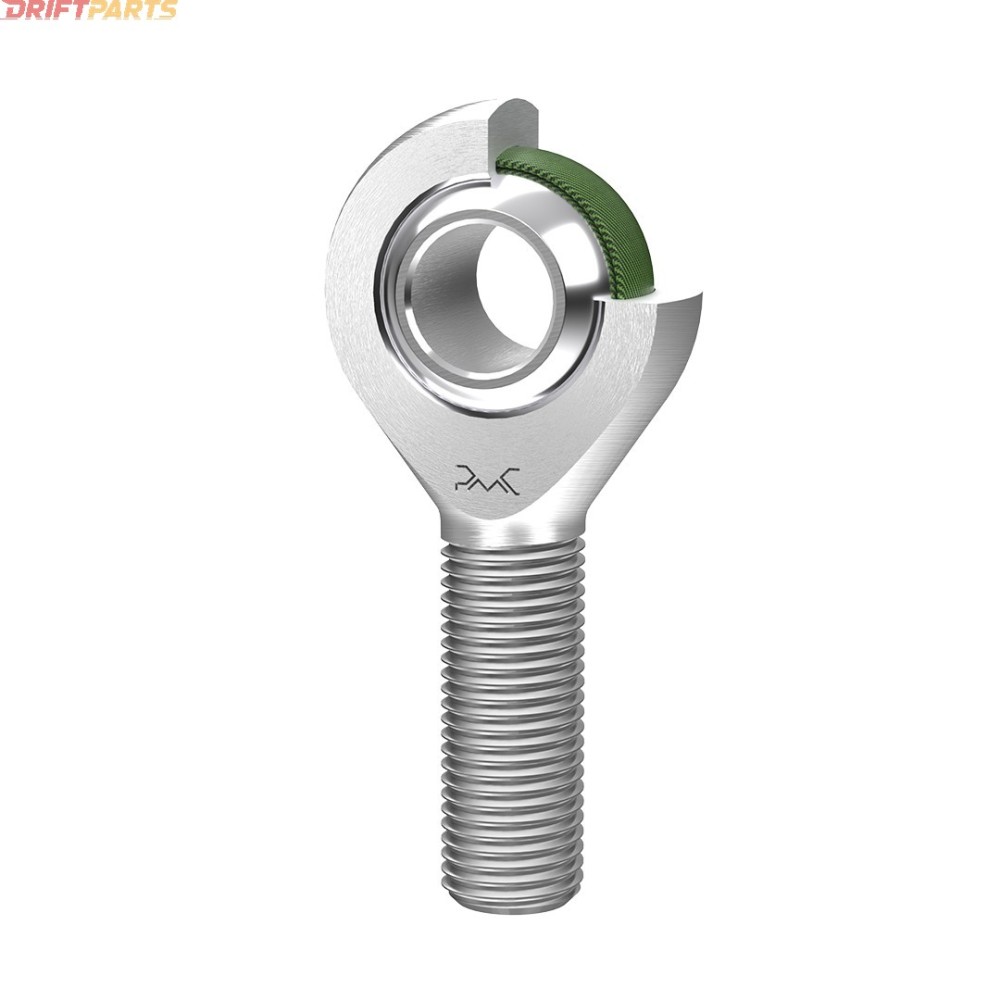

PMC Motorsport RS-Series Rod End / Uniball End - Right External Thread (Male) - M14x1.5

This rod end is engineered for applications demanding precise and smooth load transfer, including steering, suspension, and joint systems. The component features a right external thread (male) with a specification of M14x1.5.

Key Features:

• Maintenance-Free Uniball: Eliminates the need for rubber boots, reducing maintenance requirements and associated costs.
• High Load Capacity: Suitable for transmitting significant directional loads.
• Corrosion Resistance: Designed for use in harsh environmental conditions, ensuring extended operational lifespan.
• Lubricant-Free Operation: Incorporates PTFE (Polytetrafluoroethylene) for low friction, high-temperature resistance from -50°C to +150°C, chemical resistance, and electrical insulation.

Materials:

• Housing: Constructed from heat-treated steel (25CrMo4 - 4130 - 1.7218) with a galvanized coating (hard chrome).
• Bearing Bushing: Manufactured by injection molding using Nylon with PTFE.
• Ball: Made from bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31), hardened with a galvanized coating (hard chrome).

Specifications:

• External diameter of the rod head: 36 mm / 1.42 inch
• Width of the inner ring: 19 mm / 0.75 inch
• Width of the outer ring: 13.5 mm / 0.53 inch
• Length: 60 mm / 2.36 inch
• Thread length: 36 mm / 1.42 inch
• Angle of deflection: 30°
• Maximum static load: 62.7 kN / 14095.5 lbs
• Maximum dynamic load: 55.6 kN / 12488.1 lbs
• Weight: 136g / 0.3 lbs

Applications:

• Hydraulics and Pneumatics: Utilized in connections for hydraulic and pneumatic cylinders.
• Automotive Industry: Compatible with suspension and steering systems.
• Agricultural Machinery: Applied in agricultural machine joints.
• Construction Machinery: Suitable for joints in construction machines.

Brand: PMC bearings

Symbol: PMC-M14x1.5P (M)

Producer code: 5903707415809

Type: PMC Bearing RS Performance - Series

Thread: M14x1.5, Male Right

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
