Rod End UniBall female left thread M16x1 5 RC

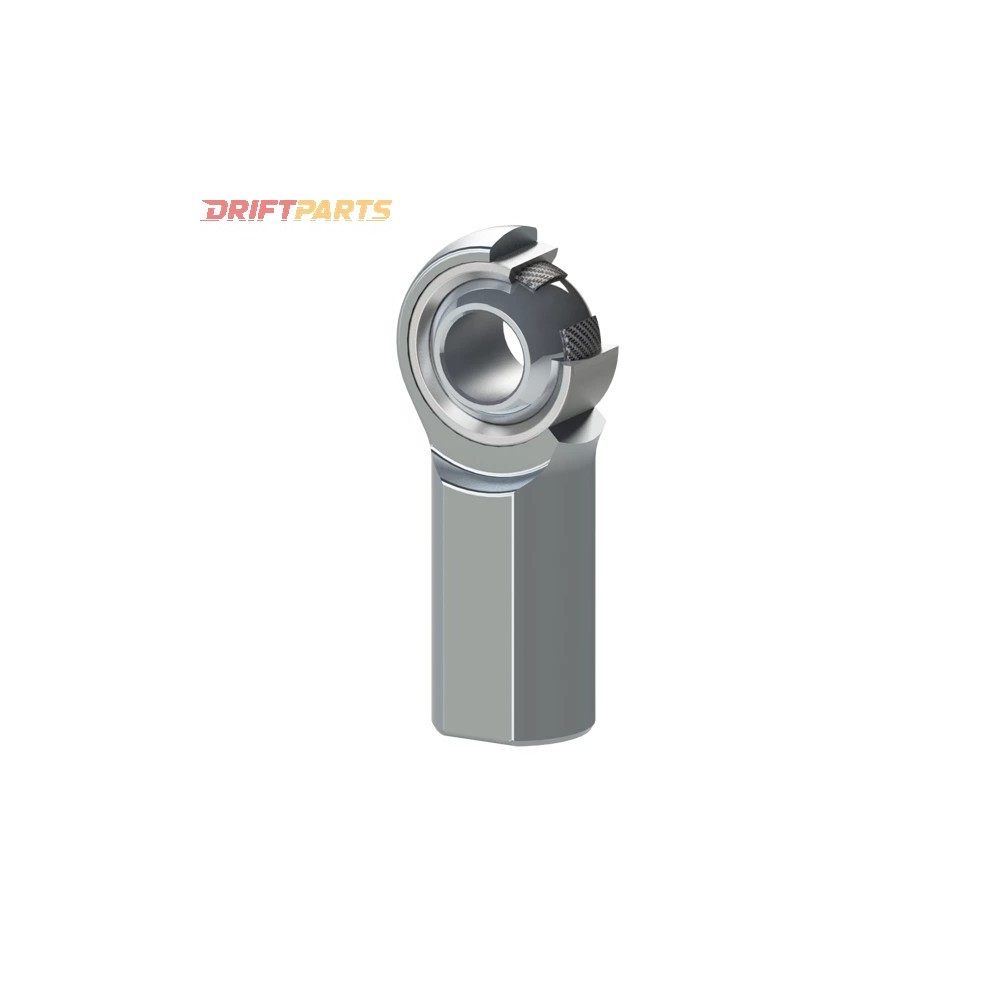

PMC Motorsport RC Sport-Series Rod End - Uniball M16x1.5 - Female Left Thread

The PMC Motorsport RC Sport-Series Rod End is a precision-engineered mechanical component designed for optimal force transfer while allowing rotational and articulating movement. This component is critical in applications requiring accurate and smooth load transfer, including control and suspension systems. The rod end consists of a robust housing and a spherical joint, enabling multi-directional movement.

Key Features:

• Maintenance-Free: Engineered for maintenance-free operation, minimizing the need for regular servicing.
• High Load Capacity: Capable of handling substantial constant directional loads.
• Corrosion Resistance: Durable in adverse weather conditions due to its corrosion-resistant properties.
• Long Service Life: Designed to perform reliably in harsh environments.

Material Specifications:

• Body: Constructed from heat-treatable steel 25CrMo4 - 4130 - 1.7218, forged and hard chrome plated for enhanced durability.
• Bearing Liner (Race): Made from heat-treatable steel, lined with PTFE for optimal performance.
• Ball: Composed of bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened, and hard chrome plated.

PTFE (Polytetrafluoroethylene) Properties:

• Low Friction: Exhibits one of the lowest friction coefficients, ensuring smooth operation without lubrication.
• High-Temperature Resistance: Functional across a wide temperature range from -50°C to +150°C.
• Chemical Resistance: Resistant to nearly all chemicals, suitable for aggressive environments.
• Electrical Insulation: Provides excellent electrical insulation, ideal for applications requiring electrical protection.

Applications:

• Hydraulics and Pneumatics: Integral in hydraulic and pneumatic cylinder connections.
• Automotive Industry: Utilized in suspension and steering systems.
• Agricultural Machinery: Applied in the joints of agricultural equipment.
• Construction Machinery: Employed in the joints of construction machinery.

Technical Specifications:

• Brand: PMC Bearings
• Symbol: RC-M16x1.5L (F)
• Type of Thread: Left Internal
• Thread Size: M16x1.5

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
